Integrated VRM Fan The PWM-controlled fan reduces the voltage regulator temperature, ensuring stable performance.
Offset Mounting for Intel and AMD Shifts the cold plate to the CPU heat point for more efficient heat transfer.
Intel Contact Frame Optimized contact pressure distribution for longer CPU lifespan and improved heat dissipation.
Integrated Cable Management Fan cables integrated into the shroud simplify installation and minimize cable clutter.
New P12 Pro Fans Quieter and more powerful at low speeds, with greater performance reserves under load - for maximum cooling without compromise.
- Speed: 600-3000 RPM
- Bearing: Fluid Dynamic Bearing
- Static Pressure: 6.9 mmH2O
- Airflow: 77 cfm | 131 m³/h
Premium Class Radiator The 38 mm radiator improves heat dissipation and holds more liquid than conventional 27 mm radiators.
Easy Installation Pre-installed, pre-connected fans and simple mounting.
Includes MX-6 Thermal Paste Simply apply in a cross pattern - the water pump's cold plate distributes the paste evenly.
Two Control Options With the Splitter Cable, the pump and fans can be controlled separately or synchronized via a single PWM signal.
- TIM: MX-6 (0.8 g)
- Operating Temperature: 0—40 °C
- Pump: 800–2800 rpm (PWM controlled)
- Cold Plate: Copper, Micro Skived Fins
- Tubing Length: 450 mm
- Tubing Diameter: Outer: 12.4 mm, Inner: 6.0 mm
- Weight: 2005 g
Compatibility:
- Intel: LGA1851, LGA1700
- AMD: AM5, AM4

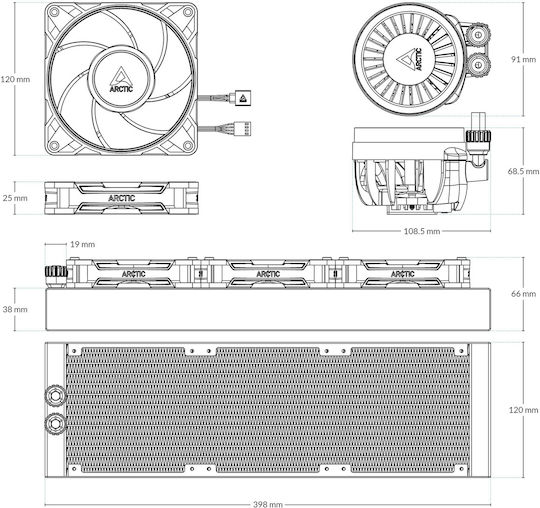

Radiator Material: Aluminum Radiator Dimensions: 398 (L) x 120 (W) x 38 (H) mm
VRM Module:
- VRM Fan 400–2500 rpm (PWM-controlled)
- LEDs 12x A-RGB Gen2 LEDs
Fan:
- 3x P12 Pro A-RGB
- Speed: 600–3000 rpm
- Airflow: 77 cfm | 131 m³/h
- Static Pressure: 6.9 mmH2O
- Bearing: Fluid Dynamic Bearing
