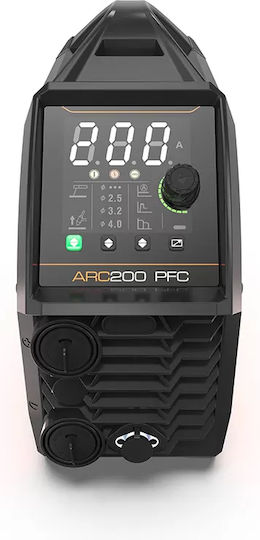

Jasic EVO20 ARC 200 PFC Welding Machine MMA / TIG with Maximum Welding Current 200A and Duty Cycle 25%
Welding Machines

Jasic EVO20 ARC 200 PFC Welding Machine MMA / TIG with Maximum Welding Current 200A and Duty Cycle 25%

Key features:

  • Input power: AC 95–265 V
  • Operation at AC 230 V
  • Protection class: IP23S
  • Efficiency: 85%
See full description

  • Welding Current

    200

    Suitable for professional use on thick metals, such as steel or cast iron constructions.

  • Duty Cycle

    The Duty Cycle is the portion of a ten-minute period that a welding machine can operate continuously at maximum Amperes before it needs to stop and cool down.

    2.

    For example, a welding machine with a maximum Amperage of 200 A and a Duty Cycle of 30% can operate continuously at 200 A for 3 minutes before it needs to stop.

  • Power Supply Voltage

    230

    It is the supply voltage that the machine requires from the electrical grid.

  • Power

    6.8

    Affects the power consumption of the machine and determines if it can be supported by the electrical network you are using.
  • See all

User Manual

491 04 €
Delivery by Mon, 10 Aug
23,00 €   shipping cost
Sent from Greece
From Weldingshop
Greece
See Tools on the page of Weldingshop
Review the product
Product report

Description

Description

The EVO20 ARC 200 PFC by JASIC is designed to offer top welding performance while providing a user-friendly handling experience, whether you are working in MMA or TIG mode.

  • Synergic MMA technology for easy setup and quality results, even in demanding applications.
  • Smart Lift TIG for flawless arc ignition and stability during welding.
  • HD digital display with ClearVision technology, ensuring absolute clarity and precision in settings.
  • Anti-stick, hot start, and arc force functions that enhance arc quality and stability.
  • Wireless or wired remote control for maximum flexibility in the field.
  • Power Factor Correction (PFC) for improved energy efficiency and lower power consumption.

Technical Specifications – JASIC ARC200 PFC Z2S42

  • Input supply: AC 95–265 V, 50/60 Hz
  • Operation at AC 230 V
  • MMA input current: 29.7 A
  • MMA input power: 6.8 kVA
  • MMA output current: 20–200 A
  • TIG input current: 19.6 A
  • TIG input power: 4.5 kVA
  • TIG output current: 10–200 A
  • Open circuit voltage: 78 V
  • Duty Cycle: 25%
  • Efficiency: 85%
  • Power Factor: 0.99
  • Standby consumption: MMA: 46.8 W, TIG: 7 W
  • Protection degree: IP23S
  • Insulation class: H
  • Dimensions (L x W x H): 413 x 150 x 311 mm
  • Net weight: 7.2 kg

The package includes:

  • 1 pc. Allen wrench
  • 2 pcs. Quick plugs

At a glance

The EVO20 ARC 200 PFC by JASIC is designed to offer top welding performance while providing a user-friendly handling experience, whether you are working in MMA or TIG mode.

Features & Functions

  • Synergic MMA technology for easy setup and quality results, even in demanding applications.
  • Smart Lift TIG for perfect arc ignition and stability during welding.
  • Digital HD display with ClearVision technology, ensuring absolute clarity and precision in settings.
  • Anti-stick, hot start, and arc force functions that enhance arc quality and stability.
  • Wireless or wired remote control for maximum flexibility in the work field.
  • Power Factor Correction (PFC) for improved energy efficiency and lower power consumption.

Specifications

  • Input power supply: AC 95–265 V, 50/60 Hz
  • Operation at AC 230 V
  • Input current MMA: 29.7 A
  • Input power MMA: 6.8 kVA
  • Output current MMA: 20–200 A
  • Input current TIG: 19.6 A
  • Input power TIG: 4.5 kVA
  • Output current TIG: 10–200 A
  • Open circuit voltage: 78 V
  • Duty cycle: 25%
  • Efficiency: 85%
  • Power factor: 0.99
  • Standby consumption: MMA: 46.8 W, TIG: 7 W
  • Protection class: IP23S
  • Insulation class: H
  • Dimensions (L x W x H): 413 x 150 x 311 mm
  • Net weight: 7.2 kg

Includes

  • 1 pc. Allen wrench
  • 2 pcs. Quick plugs

Manufacturer

Manufacturer Details

Warnings & Safety Information
See full description

Specifications

Specifications

Product Guides

User Manual

Dimensions

Type
MMA, TIG

Type

MMA

Creates thick and strong bonds without the need for external gas supply, making it ideal for out-of-lab welding.

TIG

Slow welding for detailed work on aluminum and stainless steel, mainly. Requires experience and connection to an external gas cylinder. Does not create "spatters".
Welding Current (max)
200 A

Welding Current (max): 200


Suitable for professional use on thick metals, such as steel or cast iron constructions.
Operation Cycle (max Ampere)
25 %

Operation Cycle (max Ampere)

The Duty Cycle is the portion of a ten-minute period that a welding machine can operate continuously at maximum Amperes before it needs to stop and cool down.

2.

For example, a welding machine with a maximum Amperage of 200 A and a Duty Cycle of 30% can operate continuously at 200 A for 3 minutes before it needs to stop.
Supply Voltage
230 V

Supply Voltage: 230


It is the supply voltage that the machine requires from the electrical grid.
Power
6.8 kVA

Power: 6.8


Affects the power consumption of the machine and determines if it can be supported by the electrical network you are using.
Weight
7200 gr

Additional Features

Inverter
No
IGBT
No
VRD
No
with Voltage Stabilizer
No
for Generator with AVR
No

Features

Hot Start
Yes

Hot Start


Temporarily increases the current intensity at the moment of welding initiation.
Anti Stick
Yes

Anti Stick


Cuts off the current if the electrode sticks to the metal, to prevent it from burning.
Arc Force
Yes

Arc Force


Helps in the stability of the arc during welding.
2T Operation
No
4T Mode
No
Spot Function
No
Pulsed
No

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.
