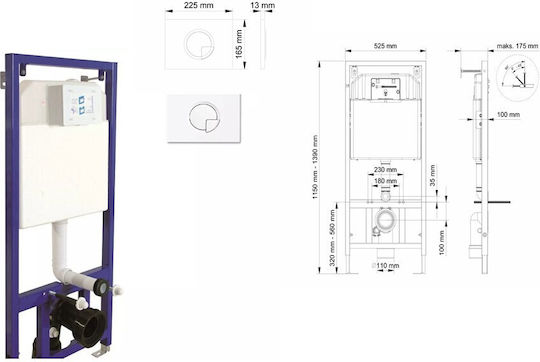

The built-in metal cistern ΚΑ-ΜΠ-001 has a rectangular shape and is designed for installation in plasterboard or brick constructions. It includes a flush plate and comes pre-assembled. The mechanical dual flush has a flush volume of 3/6 l.
The tank has a capacity of up to 10 l and a depth of 80 mm, while the total thickness including the frame is 100 mm. The metal frame has an electrostatic coating and a tubular profile measuring 30 mm x 40 mm. The WC suspension rails support up to 400 kg and are adjustable for a centre-to-centre distance of 18 or 23 cm.
- Installation: Built-in
- Shape: Rectangular
- Frame material: Metal
- Colour: White
- Pressure: Low
- Wall construction: Plasterboard or brick
- Flush plate: Included
- Flush type: Mechanical dual flush
- Flush volume: 3/6 l
- Tank capacity: Up to 10 l
- Tank depth: 80 mm
- Total thickness with frame: 100 mm
- Tubular profile dimensions: 30 mm x 40 mm
- Maximum load of suspension rails: 400 kg
- Suspension centre-to-centre distance: 18 or 23 cm
- Water connection: Upper right, G 1/2
- Water flow pressure: 0.3 MPa (3 bar) maximum
- Flow rate: 9 l/min
- Acoustic class: Class 1, EN 14124
Manufacturer
OEM- Product Number
- ΚΑ-ΜΠ-001
Specifications
- Placement
- Built-in
- Shape
- Rectangular
- Pressure
- Low
- Material
- Metallic
- Double Flow
- No
- Colour
- White
- Built-ins Installation
- for Drywall
- Seating
- No
Dimensions
- Height
- -
- Length
- -
- Length
- -
