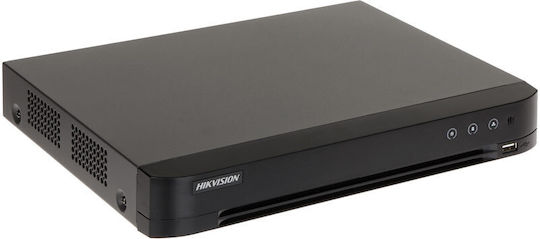

Hikvision DVR DVR iDS-7208HUHI-M1/XT
Surveillance Video Recorders

Hikvision DVR DVR iDS-7208HUHI-M1/XT

Key features:

  • Power: 24 W
  • 8 channels Motion Detection 2.0
  • 4 channels face recognition
  • 3 USB ports
See full description

  • Type

    DVR

    Recorder that works with analog cameras, converting their signal to digital for storage.

  • Number of Channels

    The maximum number of cameras that can be connected to and managed by the recorder

  • Resolution

    4K

    The highest resolution available on the market (also known as 8 Megapixels). It offers 4 times more detail than Full HD. This is cinematic quality that allows for maximum possible zoom to recognize critical details, even from a great distance.

  • Incoming Bandwidth

    This is the actual processing power of the recorder. It determines how much "load" (data) it can handle simultaneously from all cameras. A high number is necessary for many channels at high 4K resolution.


    • Example 1: You have 4 cameras of 5MP (each requiring ~8 Mbps). A total of ~32 Mbps is required. An NVR with 80 Mbps Incoming Bandwidth is more than enough.
    • Example 2: You have 16 cameras of 4K (each requiring ~12 Mbps). A total of ~192 Mbps is required. An NVR with 160 Mbps is not enough and will "lose" cameras or reduce their quality. Here, you need an NVR with at least 256 Mbps.

    256

  • HDD Slots

    The number of internal hard drives (SATA) that can be installed simultaneously in the recorder.

  • Maximum Capacity per Disk

    The maximum size (in TB - Terabytes) of the hard drive that the device "recognizes" and supports in each slot.

  • Ports

    VGA

    An analog video output. Used to connect the recorder to older computer monitors.

    HDMI

    The digital output for video and audio. It is the standard way to connect the recorder to a modern TV or monitor (PC) and view your cameras in high resolution.

    USB

    Its main use is to connect a mouse for menu navigation and settings. Additionally, it is used to connect a USB stick (flash drive) in order to export (take a backup of) specific video clips that interest you.

  • Video Compression

    H.265+

    Smart version of H.265, designed for 4K/8K surveillance. It offers very low bandwidth in static scenes, combining high image quality with significant storage space savings.

    • The standard supports approximately 50–60 days of continuous recording on a 2TB hard drive

    (Values and durations are indicative and based on standard settings. Actual performance may vary depending on resolution, frame rate, scene movement, and hardware.)
  • See all

Number of channels outputs

  1. 4

    from 215,36 €

  2. 8

    from 263,53 €

Review the product
Product report

Description

Description

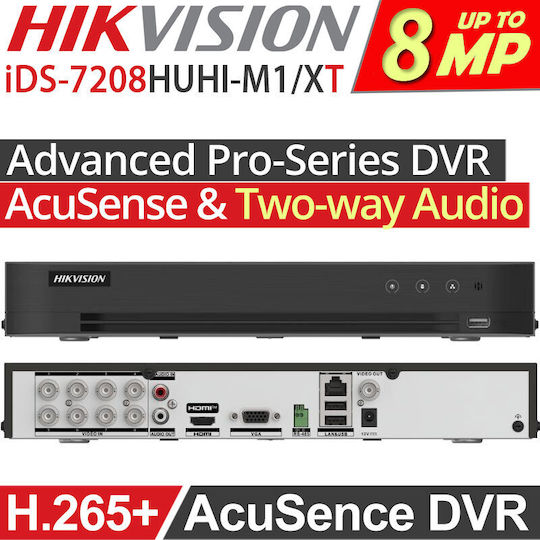

HIKVISION iDS-7208HUHI-M1/XT Advanced Pro-Series Acusence DVR - Hybrid (penta-brid) recorder from the HUHI series, with 8 HDTVI inputs of any series and resolution:

  • 8MP to 720p
  • CVI 8MP/5MP/4MP/1080p/720p
  • AHD 5MP/4MP/1080p/720p
  • Common analog cameras (CVBS), in any aspect ratio (auto detect)

Supports up to 16 IP cameras up to 8MP with video compression H.265 Pro+ / H.265 Pro / H.264+ / H.264 and a total Bit Rate of 256 Mbps. It features:

  • 1 HDMI output with up to 4K resolution
  • 1 VGA output with up to 1920x1080 resolution
  • Recording per camera: 8fps @ 8MP / 12fps @ 3K lite or 5MP / 15fps @ 4MP / 25fps (real time) @ 1080p
  • 25fps (real time) for each IP camera
  • Disk slots 1 x 12TB
  • 8 channels Motion Detection 2.0
  • 8 channels Perimeter Protection
  • 4 channels face recognition
  • Audio over Coax feature
  • HDTVI Two-way Audio technology
  • 1 audio input, 1 audio output
  • 1 Ethernet port 1 x 1000
  • 3 USB ports
  • 1 RS485 port
  • Power consumption 24W
  • Dimensions (W×D×H) 320x240x48 mm

Capabilities

Hybrid (penta-brid) recorder of the HUHI series, with 8 HDTVI inputs of any series and resolution:

  • 8MP to 720p
  • CVI 8MP/5MP/4MP/1080p/720p
  • AHD 5MP/4MP/1080p/720p
  • Standard analog cameras (CVBS), in any format (auto detect)


Functions:

Supports up to 16 IP cameras up to 8MP with H.265 Pro+ / H.265 Pro / H.264+ / H.264 video compression and total Bit Rate of 256 Mbps. Features:

  • 1 HDMI output with resolution up to 4K
  • 1 VGA output with resolution up to 1920x1080
  • Recording per camera: 8fps @ 8MP / 12fps @ 3K lite or 5MP / 15fps @ 4MP / 25fps (real time) @ 1080p
  • 25fps (real time) for each IP camera
  • 1 x 12TB hard drive bays
  • 8 channels Motion Detection 2.0
  • 8 channels Perimeter Protection
  • 4 channels face recognition
  • Audio over Coax function
  • HDTVI Two-way Audio technology
  • 1 audio input, 1 audio output
  • 1 Ethernet port 1 x 1000
  • 3 USB ports
  • 1 RS485 port
  • Power consumption 24W
  • Dimensions (W×D×H) 320x240x48 mm

Manufacturer

Manufacturer Details

Warnings & Safety Information
See full description

Specifications

Specifications

Specifications

Type
DVR

Type

DVR
Recorder that works with analog cameras, converting their signal to digital for storage.
Number of Channels Outputs
8

Number of Channels Outputs

The maximum number of cameras that can be connected to and managed by the recorder
Resolution
4K

Resolution

4K

The highest resolution available on the market (also known as 8 Megapixels). It offers 4 times more detail than Full HD. This is cinematic quality that allows for maximum possible zoom to recognize critical details, even from a great distance.
WiFi
No

WiFi

Specifies whether the device can connect wirelessly to your router (Wi-Fi)
Εισερχόμενο Εύρος Ζώνης
256 Mbps

Εισερχόμενο Εύρος Ζώνης: 256

This is the actual processing power of the recorder. It determines how much "load" (data) it can handle simultaneously from all cameras. A high number is necessary for many channels at high 4K resolution.


  • Example 1: You have 4 cameras of 5MP (each requiring ~8 Mbps). A total of ~32 Mbps is required. An NVR with 80 Mbps Incoming Bandwidth is more than enough.
  • Example 2: You have 16 cameras of 4K (each requiring ~12 Mbps). A total of ~192 Mbps is required. An NVR with 160 Mbps is not enough and will "lose" cameras or reduce their quality. Here, you need an NVR with at least 256 Mbps.
Gigabit Port
Yes

Gigabit Port

Specifies the speed of the wired network connection (LAN). "Gigabit" (1000 Mbps) is 10 times faster than standard "Fast Ethernet" (100 Mbps). It is essential for multi-channel 4K NVRs to handle the large volume of data from the cameras without delay.
Θύρες
VGA, HDMI, USB

Θύρες

VGA

An analog video output. Used to connect the recorder to older computer monitors.

HDMI
The digital output for video and audio. It is the standard way to connect the recorder to a modern TV or monitor (PC) and view your cameras in high resolution.
USB

Its main use is to connect a mouse for menu navigation and settings. Additionally, it is used to connect a USB stick (flash drive) in order to export (take a backup of) specific video clips that interest you.
ONVIF
No

ONVIF

ONVIF is a protocol that allows cameras and recorders from different manufacturers to communicate with each other.
Video Compression
H.265+

Video Compression

H.265+

Smart version of H.265, designed for 4K/8K surveillance. It offers very low bandwidth in static scenes, combining high image quality with significant storage space savings.

  • The standard supports approximately 50–60 days of continuous recording on a 2TB hard drive

(Values and durations are indicative and based on standard settings. Actual performance may vary depending on resolution, frame rate, scene movement, and hardware.)

Smart AI Detection

Human Detection
Yes

Human Detection

The technology recognizes human shapes in real time. Ideal for security, area monitoring, or alarms, reducing false alarms caused by other objects.
Vehicle Detection
Yes

Vehicle Detection

Recognizes and tracks vehicles, distinguishing them from other objects. Useful for parking, traffic management, or road surveillance.

HDD

HDD Slots
1

HDD Slots

The number of internal hard drives (SATA) that can be installed simultaneously in the recorder.
Maximum Capacity per Disk
12 TB

Maximum Capacity per Disk

The maximum size (in TB - Terabytes) of the hard drive that the device "recognizes" and supports in each slot.
Includes Hard Drive
No

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.

See all specifications

Description & Specifications

HIKVISION iDS-7208HUHI-M1/XT Advanced Pro-Series Acusence DVR - Hybrid (penta-brid) recorder from the HUHI series, with 8 HDTVI inputs of any series and resolution:

  • 8MP to 720p
  • CVI 8MP/5MP/4MP/1080p/720p
  • AHD 5MP/4MP/1080p/720p
  • Common analog cameras (CVBS), in any aspect ratio (auto detect)

Supports up to 16 IP cameras up to 8MP with video compression H.265 Pro+ / H.265 Pro / H.264+ / H.264 and a total Bit Rate of 256 Mbps. It features:

  • 1 HDMI output with up to 4K resolution
  • 1 VGA output with up to 1920x1080 resolution
  • Recording per camera: 8fps @ 8MP / 12fps @ 3K lite or 5MP / 15fps @ 4MP / 25fps (real time) @ 1080p
  • 25fps (real time) for each IP camera
  • Disk slots 1 x 12TB
  • 8 channels Motion Detection 2.0
  • 8 channels Perimeter Protection
  • 4 channels face recognition
  • Audio over Coax feature
  • HDTVI Two-way Audio technology
  • 1 audio input, 1 audio output
  • 1 Ethernet port 1 x 1000
  • 3 USB ports
  • 1 RS485 port
  • Power consumption 24W
  • Dimensions (W×D×H) 320x240x48 mm

Capabilities

Hybrid (penta-brid) recorder of the HUHI series, with 8 HDTVI inputs of any series and resolution:

  • 8MP to 720p
  • CVI 8MP/5MP/4MP/1080p/720p
  • AHD 5MP/4MP/1080p/720p
  • Standard analog cameras (CVBS), in any format (auto detect)


Functions:

Supports up to 16 IP cameras up to 8MP with H.265 Pro+ / H.265 Pro / H.264+ / H.264 video compression and total Bit Rate of 256 Mbps. Features:

  • 1 HDMI output with resolution up to 4K
  • 1 VGA output with resolution up to 1920x1080
  • Recording per camera: 8fps @ 8MP / 12fps @ 3K lite or 5MP / 15fps @ 4MP / 25fps (real time) @ 1080p
  • 25fps (real time) for each IP camera
  • 1 x 12TB hard drive bays
  • 8 channels Motion Detection 2.0
  • 8 channels Perimeter Protection
  • 4 channels face recognition
  • Audio over Coax function
  • HDTVI Two-way Audio technology
  • 1 audio input, 1 audio output
  • 1 Ethernet port 1 x 1000
  • 3 USB ports
  • 1 RS485 port
  • Power consumption 24W
  • Dimensions (W×D×H) 320x240x48 mm

Manufacturer

Manufacturer Details

Warnings & Safety Information

Specifications

Type
DVR

Type

DVR
Recorder that works with analog cameras, converting their signal to digital for storage.
Number of Channels Outputs
8

Number of Channels Outputs

The maximum number of cameras that can be connected to and managed by the recorder
Resolution
4K

Resolution

4K

The highest resolution available on the market (also known as 8 Megapixels). It offers 4 times more detail than Full HD. This is cinematic quality that allows for maximum possible zoom to recognize critical details, even from a great distance.
WiFi
No

WiFi

Specifies whether the device can connect wirelessly to your router (Wi-Fi)
Εισερχόμενο Εύρος Ζώνης
256 Mbps

Εισερχόμενο Εύρος Ζώνης: 256

This is the actual processing power of the recorder. It determines how much "load" (data) it can handle simultaneously from all cameras. A high number is necessary for many channels at high 4K resolution.


  • Example 1: You have 4 cameras of 5MP (each requiring ~8 Mbps). A total of ~32 Mbps is required. An NVR with 80 Mbps Incoming Bandwidth is more than enough.
  • Example 2: You have 16 cameras of 4K (each requiring ~12 Mbps). A total of ~192 Mbps is required. An NVR with 160 Mbps is not enough and will "lose" cameras or reduce their quality. Here, you need an NVR with at least 256 Mbps.
Gigabit Port
Yes

Gigabit Port

Specifies the speed of the wired network connection (LAN). "Gigabit" (1000 Mbps) is 10 times faster than standard "Fast Ethernet" (100 Mbps). It is essential for multi-channel 4K NVRs to handle the large volume of data from the cameras without delay.
Θύρες
VGA, HDMI, USB

Θύρες

VGA

An analog video output. Used to connect the recorder to older computer monitors.

HDMI
The digital output for video and audio. It is the standard way to connect the recorder to a modern TV or monitor (PC) and view your cameras in high resolution.
USB

Its main use is to connect a mouse for menu navigation and settings. Additionally, it is used to connect a USB stick (flash drive) in order to export (take a backup of) specific video clips that interest you.
ONVIF
No

ONVIF

ONVIF is a protocol that allows cameras and recorders from different manufacturers to communicate with each other.
Video Compression
H.265+

Video Compression

H.265+

Smart version of H.265, designed for 4K/8K surveillance. It offers very low bandwidth in static scenes, combining high image quality with significant storage space savings.

  • The standard supports approximately 50–60 days of continuous recording on a 2TB hard drive

(Values and durations are indicative and based on standard settings. Actual performance may vary depending on resolution, frame rate, scene movement, and hardware.)

Smart AI Detection

Human Detection
Yes

Human Detection

The technology recognizes human shapes in real time. Ideal for security, area monitoring, or alarms, reducing false alarms caused by other objects.
Vehicle Detection
Yes

Vehicle Detection

Recognizes and tracks vehicles, distinguishing them from other objects. Useful for parking, traffic management, or road surveillance.

HDD

HDD Slots
1

HDD Slots

The number of internal hard drives (SATA) that can be installed simultaneously in the recorder.
Maximum Capacity per Disk
12 TB

Maximum Capacity per Disk

The maximum size (in TB - Terabytes) of the hard drive that the device "recognizes" and supports in each slot.
Includes Hard Drive
No

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.
