Edision Central Amplifier Satellite CAM-100

The EDISION CAM-100 is a DVB-T/T2 Terrestrial Digital Channel amplifier, suitable for large antenna system installations. It features 1 UHF signal input with gain control and a maximum output level of...

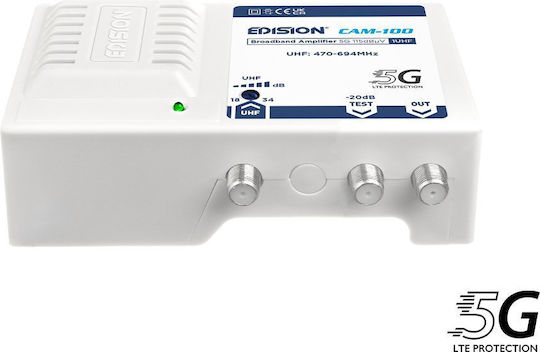

The EDISION CAM-100 is a DVB-T/T2 Terrestrial Digital Channel amplifier, suitable for large antenna system installations. It features 1 UHF signal input with gain control and a maximum output level of 115 dBμV for proper distribution to televisions.

Features:

  • Central amplifier for DVB-T/T2 Terrestrial Digital Channels, with 5G LTE interference cutoff
  • ...
See full description See full description
Product report

Description

Description

The EDISION CAM-100 is a DVB-T/T2 Terrestrial Digital Channel amplifier, suitable for large antenna system installations. It features 1 UHF signal input with gain control and a maximum output level of 115 dBμV for proper distribution to televisions.

Features:

  • Central amplifier for DVB-T/T2 Terrestrial Digital Channels, with 5G LTE interference cutoff
  • Installation only in INDOOR spaces
  • UHF reception frequency range: 470-694 MHz
  • 5G LTE interference protection: YES
  • RF outputs: 1 + 1 TEST (-20dB)
  • Adjustable UHF gain: 18 to 34 dB
  • Impedance: 75 Ohm
  • Connectors: Female F-type plug
  • Built-in 220V power supply with 2PIN EU plug

General:

  • Power consumption: 7W maximum
  • Operating ambient temperature: 0°C ... +50°C
  • Storage ambient temperature: -20°C ... +70°C
  • Dimensions with box (W x H x D): 130x85x40 mm
  • Weight: 0.24 kg
  • Box color: white

Package Contents:

  • CAM-100 Central Amplifier
  • Plastic screwdriver for adjustments
  • Mounting screws and wall plugs
  • User manual GR/EN/DE/ES/IT/FR

Manufacturer

Manufacturer Details

Warnings & Safety Information
See full description

Specifications

Specifications

Type
Central Amplifier

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.

See all specifications
