TQS4 Intelligent Temperature Sensor

Thermometer with a measurement range of -40 °C to +125 °C.

Outdoor construction with IP65 protection.

Power supply voltage up to 36 V.

Communication via RS485 bus...

TQS4 Intelligent Temperature Sensor

Thermometer with a measurement range of -40 °C to +125 °C.

Outdoor construction with IP65 protection.

Power supply voltage up to 36 V.

Communication via RS485 bus using ModBus RTU or Spinel protocol.

The TQS4 is an intelligent digital thermometer for measuring outdoor temperature that communicates via the standard...

See full description See full description

  • Connection Method

    Wired

    Ability for wired transfer of measurement data and communication with other devices.

  • Protection Certification

    IP65

    Suitable for outdoor areas with heavy rain or water under pressure. Provides complete protection against dust and the ingress of objects.

  • Temperature Range

    The minimum and maximum temperature range of the sensor.
  • See all
Review the product
Product report

Description

Description

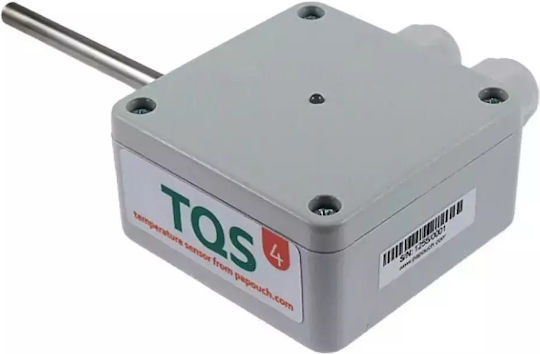

TQS4 Intelligent Temperature Sensor

Thermometer with a measurement range of -40 °C to +125 °C.

Outdoor construction with IP65 protection.

Power supply voltage up to 36 V.

Communication via RS485 bus using ModBus RTU or Spinel protocol.

The TQS4 is an intelligent digital thermometer for measuring outdoor temperature that communicates via the standard industrial RS485 bus (two wires).

It can measure temperatures ranging from -40 to +125 °C with a resolution of 0.1 °C.

The measured value is sent directly in °C, so there is no need for conversion.

The thermometer does not require calibration and is ready to measure immediately upon connection.

In terms of communication, the thermometer operates on RS485 using the ModBus RTU or Spinel protocol.

It can be on the same bus with other RS485 devices.

An RS485 bus can have up to 32 units (possibly more).

As both protocols are described in the documentation with examples, Spinel also has a simple ASCII format suitable for educational purposes.

Manufacturer

OEM

Manufacturer Details

Warnings & Safety Information
See full description

Specifications

Specifications

Specifications

Type
Temperature
Air Quality
No

Air Quality

Includes sensors that, in addition to temperature and humidity, also monitor air quality.
Connection Method
Wired

Connection Method

Wired

Ability for wired transfer of measurement data and communication with other devices.
Cable Type
No

Cable Type

For wired data transfer or power supply in cases where the cable also includes a corresponding plug (e.g. USB)
Battery
No

Additional Features

Protection Certification
IP65

Protection Certification

IP65

Suitable for outdoor areas with heavy rain or water under pressure. Provides complete protection against dust and the ingress of objects.
Temperature Range
-40°C to 125°C

Temperature Range

The minimum and maximum temperature range of the sensor.

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.

See all specifications

Description & Specifications

TQS4 Intelligent Temperature Sensor

Thermometer with a measurement range of -40 °C to +125 °C.

Outdoor construction with IP65 protection.

Power supply voltage up to 36 V.

Communication via RS485 bus using ModBus RTU or Spinel protocol.

The TQS4 is an intelligent digital thermometer for measuring outdoor temperature that communicates via the standard industrial RS485 bus (two wires).

It can measure temperatures ranging from -40 to +125 °C with a resolution of 0.1 °C.

The measured value is sent directly in °C, so there is no need for conversion.

The thermometer does not require calibration and is ready to measure immediately upon connection.

In terms of communication, the thermometer operates on RS485 using the ModBus RTU or Spinel protocol.

It can be on the same bus with other RS485 devices.

An RS485 bus can have up to 32 units (possibly more).

As both protocols are described in the documentation with examples, Spinel also has a simple ASCII format suitable for educational purposes.

Manufacturer

OEM

Manufacturer Details

Warnings & Safety Information

Specifications

Type
Temperature
Air Quality
No

Air Quality

Includes sensors that, in addition to temperature and humidity, also monitor air quality.
Connection Method
Wired

Connection Method

Wired

Ability for wired transfer of measurement data and communication with other devices.
Cable Type
No

Cable Type

For wired data transfer or power supply in cases where the cable also includes a corresponding plug (e.g. USB)
Battery
No

Additional Features

Protection Certification
IP65

Protection Certification

IP65

Suitable for outdoor areas with heavy rain or water under pressure. Provides complete protection against dust and the ingress of objects.
Temperature Range
-40°C to 125°C

Temperature Range

The minimum and maximum temperature range of the sensor.

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.
