DeepCool AG620 WH ARGB V2

The innovative design of DeepCool with its unique fin layout offers exceptional value. It is combined with a distinctive ARGB cap and a minimalist transparent logo, providing a unique lighting effect.

Significant Cooling Capability

Upgraded with DeepCool's latest Core Touch 2.0 technology, the cooling capability has been significantly improved. The heat pipes have been optimized for maximum thermal transfer from the CPU IHS via the nickel-plated cold plate, achieving enhanced cooling performance.

Balanced Dual-Path Heat Pipe Technology

By optimizing the internal capillary structure and precisely adjusting the amount of fluid, the heat pipes achieve optimal heat dissipation whether the cooler is installed vertically or horizontally. This perfect balance allows for high-phase performance throughout the lifespan of the heat pipe and reduces thermal resistance across a wide range of TDP.

Bright, Quiet, and Capable

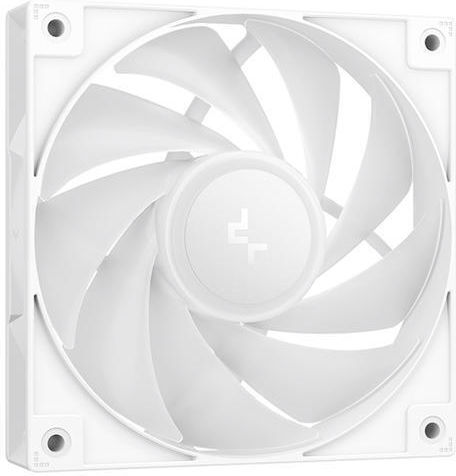

Enjoy the best of both worlds with two 120mm ARGB PWM fans designed to deliver top performance under load with silent efficiency when idle. They provide strong static pressure for fast heat transfer across the heatsink.

Application For:

• Intel LGA1851/1700/1200/1151/1150/1155
• AMD AM5/AM4

Technical Specifications

• Product dimensions: 129×136×161 mm (W×D×H)
• Heatsink dimensions: 127×110×157 mm (W×D×H)
• Heat Pipe: Ø6 mm × 6 pcs
• Fan dimensions: 120×120×25 mm (W×D×H)
• Fan speed: 300~1950 RPM ±10%
• Fan airflow: 67.88 CFM
• Fan air pressure: 2.04 mmAq
• Fan noise: ≤29.4 dB(A)
• Fan connector: 4-pin PWM
• Bearing type: Hydraulic
• Normal fan voltage: 12 VDC
• Normal fan current: 0.14 A
• Fan power consumption: 1.68 W
• LED type: Addressable RGB LED
• LED connector: 3-pin (+5V-D-G)
• Normal LED voltage: 5 VDC
• LED power consumption: 6.4 W
