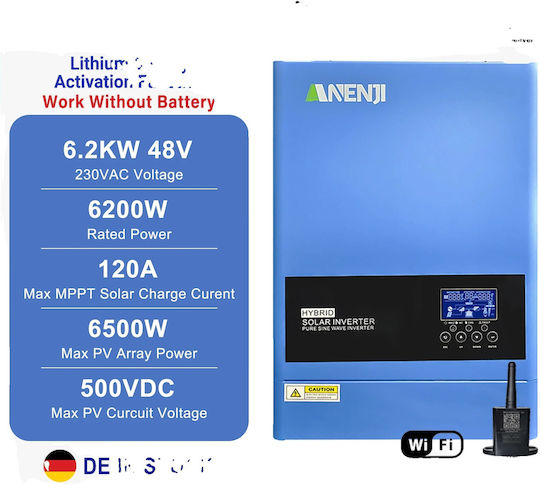

Functionality: This hybrid solar inverter can operate with or without batteries, offering flexibility for various solar energy setups.

High Efficiency: With a maximum efficiency of 98%, this inverter converts solar energy effectively, ensuring maximum energy utilization.

Smart Monitoring: Ability to monitor and control your solar system via the built-in WiFi APP controller, allowing real-time performance monitoring and adjustments from your smartphone.

Autonomous Charging Control: The built-in MPPT 120A solar charge controller optimizes the solar energy collected from your panels, significantly enhancing charging efficiency.

Reliability: Designed to withstand various environmental conditions with an operating temperature range from -10℃ to 55℃ and storage temperatures down to -15℃, ensuring long-term stable performance.

Specifications:

• Output Capacity: 6200W
• Rated Capacity: 6500VA
• Output Frequency: 50/60HZ
• Automatic Output Type Detection: Single
• Output Current: 120A
• Battery Voltage: 45VDC
• Maximum Charging Current: 120A
• Maximum PV Total Capacity: 6500W
• Input Voltage: 230VAC
• Acceptable Voltage Range: 170-280VAC (For computers), 90-280VAC (For home appliances)
• Discharge Capacity: 6500VA
• Transfer Time: 10ms (For computers), 20ms (For home appliances)
• Waveform: Pure sine wave
• Maximum PV Open Circuit Voltage: 500VDC
• MPPT Operating Range: 60-500VDC
• Maximum Efficiency: 98%
• Operating Temperature: -10℃ to 55℃
• Storage Temperature: -15℃ to 60℃
• Humidity: 5% to 95% Relative Humidity (Non-condensing)
• Dimensions (L*W*H): 438x295x105mm
• Net Weight: 10kg
• Communication Interface: RS232/RS485, GPRS/WIFI
• Features: Supports battery-less operation, supports lithium activation function.
