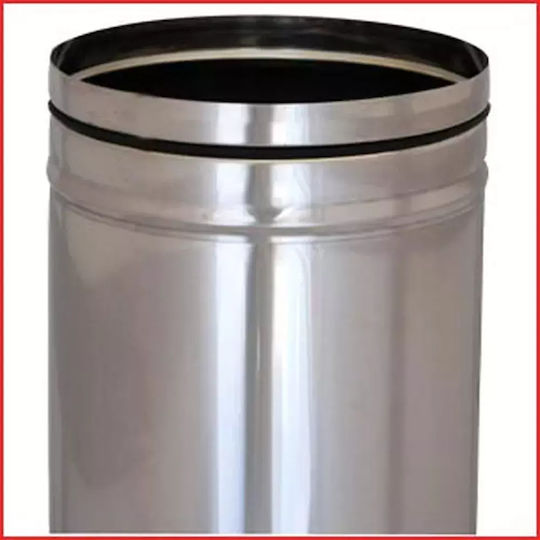

Stainless Steel Single Wall Inox Chimney

Made from stainless, non-magnetic steel AISI 304 BA.

Steel thickness: 0.40 mm.

Available diameters: from Ø80 to Ø450.

Available straight lengths: 0.25m – 0.50m – 1.00m.

Continuous inspection:

The chimneys and accessories of the TechnoGos series have undergone the required inspections and meet all the conditions of the CE marking requirements, according to EN 1856-1 and EN 1856-2.

Certification was carried out by a recognized body.

Quality control through ISO 9001:2015 management systems.

Features:

• Autogenous welding of ducts and accessories
• Male – female configuration
• Easy assembly of ducts and accessories
• Sealing with 200°C thermosilicone gasket
• Construction flexibility with a wide range of accessories

The TechnoGos accessory collection includes:

• Straight telescopic elements with extension from 1m to 2m, from 0.50m to 1m, from 0.25m to 0.40m
• Bends – Angles from 15° – 30° – 45° – 60° – 90°
• Tee 90° and Half-tee 135°
• Cleaning caps
• Clamping rings
• 200°C thermosilicone gaskets
• Axis offsetters
• Reducers
• Wall rosettes
• Wall supports
• Reinforced ceiling supports
• Adjustable triangular support base
• Floor support base
• Inclined roof support base
• Cleaning door or thermometer door
• Damper with adjustable diaphragm

The series is certified and includes ducts and accessories designed for use in Pellet units, oil boilers, energy fireplaces, etc.

They withstand continuous temperatures up to 400°C or short periods up to 600°C. The use of the series is recommended for indoor installation.
