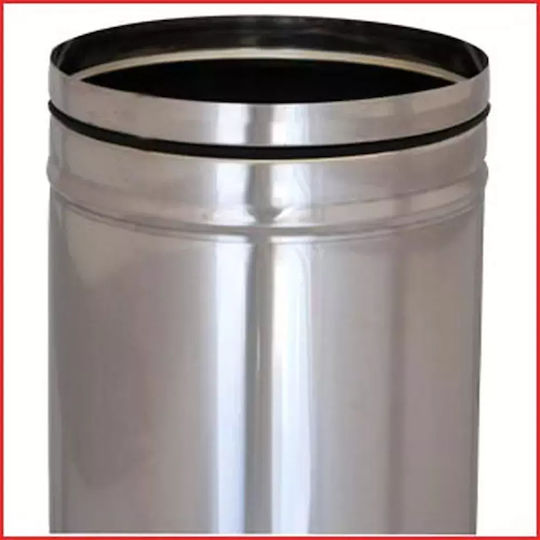

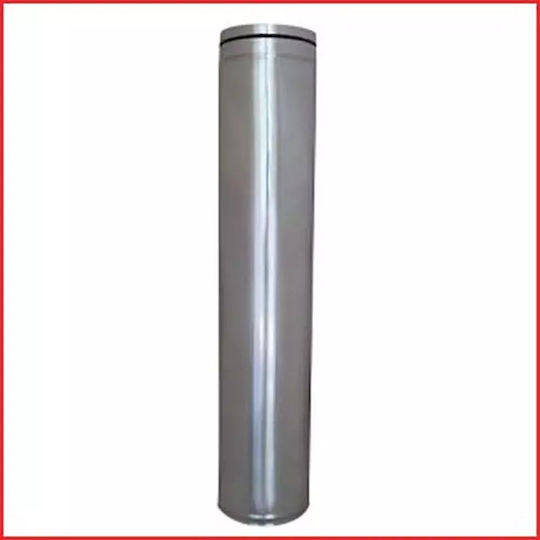

Stainless Steel Single Wall Inox Chimney

Manufactured from stainless non-magnetic steel AISI 304 BA.

Steel thickness: 0.40 mm.

Available diameters: from Ø80 to Ø450

Available straight lengths: 0.25m – 0.50m – 1.00m.

Continuous inspection:

• The chimneys and components of the TechnoGos series have undergone the required inspections and meet all the requirements of CE marking, according to EN 1856-1 and EN 1856-2.
• Certification was carried out by the recognized body DEDAL – ATTESTATION AND CERTIFICATION Ltd.
• Quality control through the ISO 9001:2015 management systems of SGS TUV SAAR.

Features:

• Autogenous welding of pipes and fittings.
• Male – female configuration.
• Easy assembly of pipes and fittings.
• Tightness using 200 °C thermosilicone gasket.
• Construction flexibility with a wide range of components.

The TechnoGos component collection includes:

• Straight telescopic elements with extension from 1m to 2m – from 0.50m to 1m – from 0.25m to 0.40m.
• Bends – Angles of 15° – 30° – 45° – 60° – 90°.
• 90° Tees and 135° Half-Tees.
• 90° Tee for pellet Ø80 with cap (right or left).
• Cleaning caps.
• Clamping collars.
• 200 °C thermosilicone gaskets.
• Axis offset adapters.
• Reducers.
• Wall rosettes.
• Wall supports.
• Reinforced ceiling supports.
• Adjustable triangular support base.
• Floor support base.
• Inclined roof support base.
• Cleaning door or thermometer door.
• Damper with adjustable diaphragm.

The series is certified and includes pipes and components designed for use in Pellet units, oil boilers, energy fireplaces, etc. They withstand continuous temperatures up to 400°C or short periods up to 600°C. Use of the series is recommended for indoor installation.
