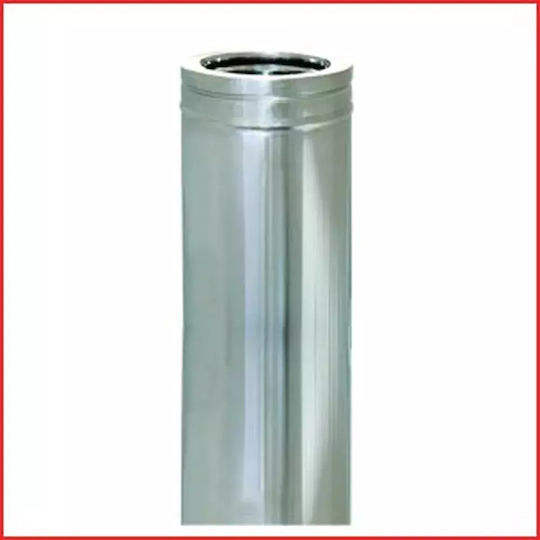

Stainless Steel Double Wall Chimney Inox TECHNOTHERM - DOUBLE WALL

Produced from stainless non-magnetic steel AISI 304 BA with a steel thickness of 0.40 mm.

Available diameters: from Ø80/130 up to Ø400/450.

25mm ceramic fiber insulation with a density of 96 kg/m3.

Available straight lengths: 0.25m – 0.50m – 1.00m.

Continuous inspection, certified according to the EU Construction Products Directive 89/106/EEC.

Certification was carried out by the recognized body DEDAL – ATTESTATION AND CERTIFICATION Ltd.

Quality control through the ISO 9001:2015 management systems of SGS TUV SAAR.

Features:

• Autogenous welding of pipes and fittings

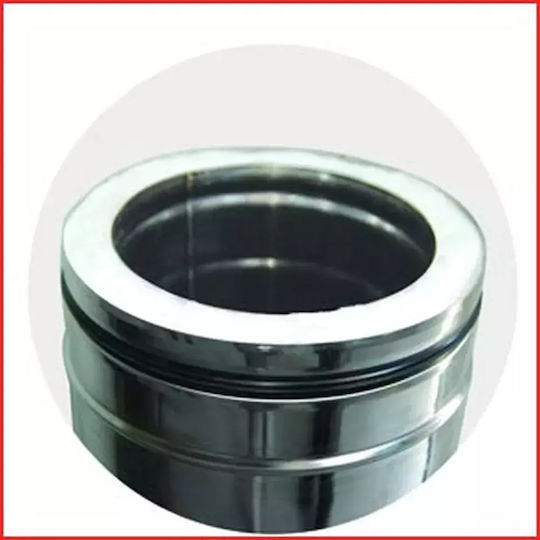

• Male – female configuration
• Easy assembly of pipes and fittings
• Tightness using 200°C thermosilicone gasket
• Construction flexibility with a wide range of fittings

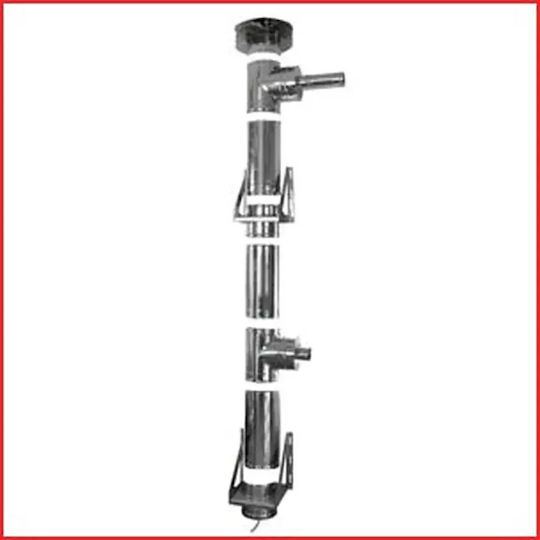

The TechnoTherm fittings collection includes:

• Straight telescopic elements with extension from 1m to 2m – from 0.50m to 1m – from 0.25m to 0.40m.
• Bends – Angles of 15° – 30° – 45° – 60° – 90°
• 90° Tee and 135° Half Tee
• Cleaning caps
• Clamping bands
• 200°C thermosilicone gaskets
• Adapters (double to single and single to double)
• Reducers
• Wall rosettes
• Wall supports
• Reinforced ceiling supports
• Adjustable triangular support base
• Floor support base
• Inclined roof support base
• Cleaning hatch or thermometer hatch
• Damper with adjustable diaphragm

The TechnoTherm series is certified and includes pipes and fittings designed for use in Pellet units, oil boilers, energy fireplaces, etc.

They withstand continuous temperatures up to 600°C or short periods up to 800°C.
