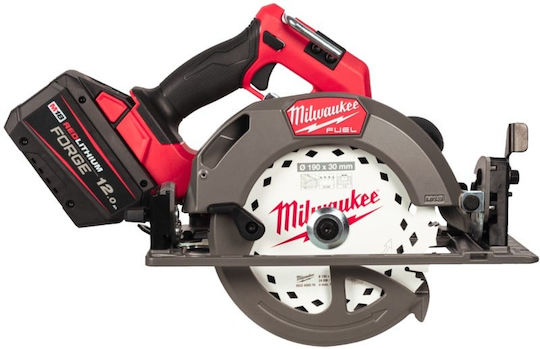

The M18 FUEL™ circular saw delivers the power for longitudinal cutting and maintains 6,000 RPM throughout the cut, providing a faster cutting experience thanks to the FORGE™ technology integrated into this tool.
It is capable of cutting up to 700 pieces of pine wood measuring 90 mm x 45 mm with a single 12.0 Ah battery charge or 64 linear meters in pine panels with a thickness of 42 mm.
At a glance
The M18 FUEL™ circular saw delivers the power for longitudinal cutting and maintains 6,000 RPM throughout the cut, providing a faster cutting experience thanks to the FORGE™ technology integrated into this tool.
It is capable of cutting up to 700 pieces of pine wood measuring 90 mm x 45 mm with a single 12.0 Ah battery charge or 64 linear meters in pine panels with a thickness of 42 mm.
Features
- 190 mm blade, providing a cutting depth of 68 mm, allowing the cutting of a stack of 3x 22 mm OSB sheets.
- Magnesium base, compatible with MILWAUKEE® guide rail, allowing straight and precise cuts on sheet material, maintaining the same cutting line at any angle, reducing setup time.
- Durable metal hanging hook for better workspace management and safety.
- Equipped with the DEK26 vacuum adapter, which fits directly onto all MILWAUKEE® dust extractors.
- Integrated LED lighting for illuminating the workspace.
- Integrated dust blower that keeps the cutting line clear.
- Adjustable cutting bevel up to 50°.
- Optimized for use with FORGE™ batteries.
- FUEL™ technology redefines the balance of cordless tools. The POWERSTATE™ brushless motor, REDLITHIUM™ battery, and REDLINK PLUS™ electronic technology from MILWAUKEE® deliver outstanding power, autonomy, and durability.
- Flexible battery system: compatible with all MILWAUKEE® M18™ batteries.
Specifications
- Bevel capacity (°): 50
- Blade diameter (mm): 190
- Bore size (mm): 30

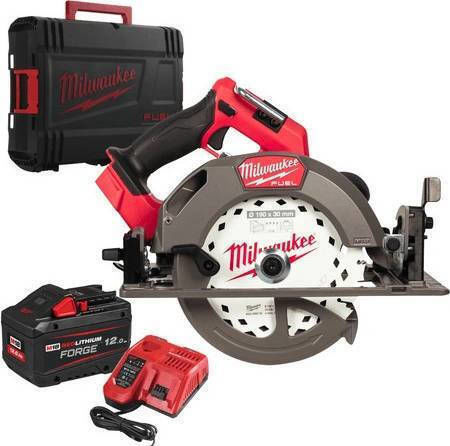

- The set includes: 1 x M18 FB12 battery, M12-18 FC charger, Kitbox
- Maximum cutting depth 45° (mm): 53
- Maximum cutting depth with guide [mm]: 64
- Maximum cutting depth with guide 45° [mm]: 49
- Maximum cutting depth 90° (mm): 68
- No load speed (revolutions per minute): 6,000
- Voltage (V): 18
- Weight (kg): 4
- Weight with battery (EPTA) (kg): 5.7 (M18 FB12)
Includes
- Parallel cutting guide, blade 190 x 30 x 1.8 mm with 24 teeth 4932498976
- Kitbox
- Included charger: M12-18 FC
- Number of supplied batteries: 1
Main Specifications
- Power Source
- Battery
- Rail
- No
- Guide
- Yes
- Carrying Case
- Hard Case
- Net Weight
- 4 kg
- Weight (with Battery)
- 5.7 kg
Battery Specifications
- Number of Batteries
- 1
- Volt
- 18 V
- Ah
- 12 Ah
- Lithium
- Yes
- Compatible Battery Type
- Milwaukee M18
Features & Functions
- Maximum Motor Speed
- 6000 rpm
- Speed Adjustment
- No
- Dust Suction System
- Yes
- Saw Blade Hole Diameter
- 30 mm
- Saw Blade Diameter
- 190 mm
- Max. Wood Cutting Capacity (90°)
- 68 mm
- Max. Wood Cutting Capacity (45°)
- 53 mm
- Miter Capability
- 50 °
- Plunge Saw
- No
- Brushless
- Yes
Important information
Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.
