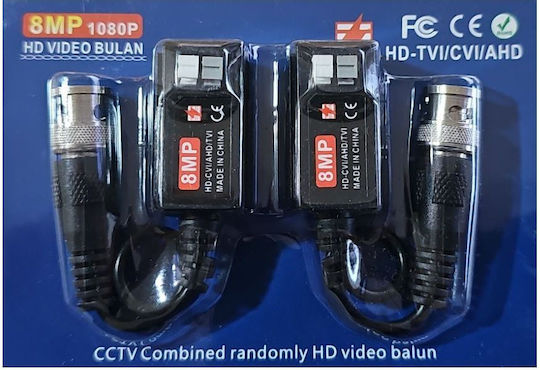

HD Pair of passive Video Balun for HD-TVI-CVI-AHD cameras - Analog OEM.

Suitable for transmitting video signal from HD-CVI, HD-TVI, and AHD cameras via UTP CAT5/CAT5e/CAT6 cables.

• Maximum Transmission Distance: 200 m max for TVI cameras up to 8mp.
• Maximum Transmission Distance: 300 m max for AHD/CVI cameras up to 8mp.

Features press-fit terminals with spring clamp (Press Fit) for easy connection without requiring a screwdriver.

Note: Make sure to install the transmitter on the camera side and the receiver on the DVR side to achieve the best quality.

If you adjust the DVR saturation, the video transmission distance may be greater. (HD-CVI 1080P: maximum up to 190m. HD-CVI 720P: maximum up to 320m.) If color abnormality appears, please also adjust the saturation, the image will recover automatically.

The device is not waterproof and should not be used outdoors.
