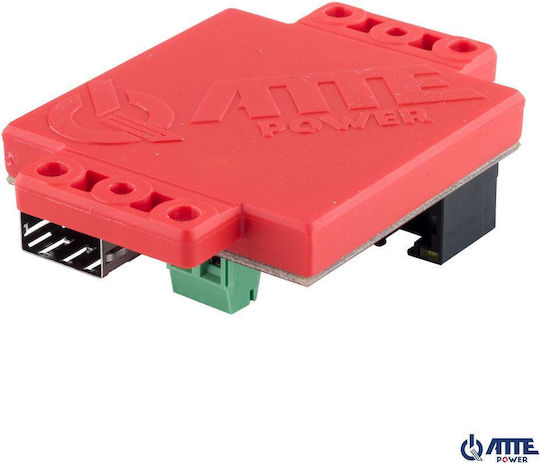

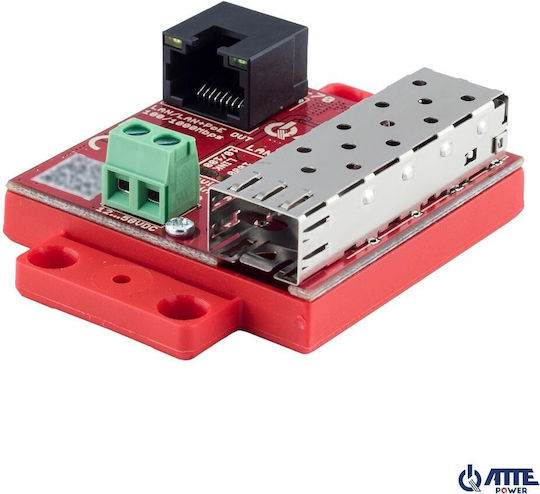

The Atte xFIBER-2-70 Gigabit Ethernet Media Converter (PoE OUT) is a versatile media converter specifically designed for Gigabit Ethernet applications. It is particularly suitable for IP CCTV systems, allowing users to seamlessly switch the transmission medium from UTP copper to fiber optics. This change significantly enhances the reliability and security of data transmission.

Key Features and Technical Specifications:

• Ports:
• 1x RJ45 Gigabit Port: Supports speeds of 10/100/1000 Mbps with Power over Ethernet (PoE) capabilities, auto MDI-MDIX, and autonegotiation.
• 1x SFP Slot: Designed for Gigabit IEEE 802.3z compatibility, allowing easy switching between different fiber optic modules.

• Power Supply:
• Supports PoE with a voltage range of 35-58VDC, also powered via a voltage input of 12-58VDC.

• Protection and Indication:
• Features overload protection and LED indicators for signal status.

• Enclosure and Dimensions:
• Durable polycarbonate enclosure, dimensions of 61 x 61 x 21 mm, with a weight of approximately 0.04 kg.

• Operating Temperature:
• Operates within -25°C to +65°C for reliable performance in various environments.

• IP Rating:
• IP20 rating, indicating that it is designed for indoor use with basic protection from solid objects.

In summary, the Atte xFIBER-2-70 Gigabit Ethernet Media Converter (PoE OUT) is an essential tool for reliable media conversion, especially in high-speed data applications.
