Experience the next level of 1440p gaming performance with AMD Radeon™ RX 9060 XT graphics cards. Powered by the groundbreaking RDNA™ 4 architecture with unified compute units featuring advanced raytracing and AI accelerators, support for AMD FidelityFX™ Super Resolution 4 technology, and AMD HYPR-RX for ultra-smooth, ultra-fast gameplay that makes every game count.
- Product Number
- RX9060XT 16G-A
Main Specifications
- Processor Manufacturer
- AMD
- Chipset Model
- Radeon RX 9060 XT
- Interface
- PCI Express x16 5.0
- Maximum Resolution
- 7680x4320 pixels
- Parallel Processing Technology
- Not Supported
- Type
- High Performance
- Cuda Cores
- -
- Device Group
- Gaming
- Colour
- Black
Special Features
- RGB Lighting
- No
- OverClock (OC)
- Yes
- Air-cooled
- Yes
- Low Profile
- No
- Passive Cooling
- No
- Water-cooled
- No
- External Graphics Card (eGPU)
- No
- LHR
- No
Memory
- Memory Capacity
- 16 GB
- Memory type
- GDDR6
- Memory Speed
- 20 Gbps
- Memory bus
- 128 bit
Connectivity
- HDMI
- 1
- DisplayPort
- 2
- Dual Link DVI
- No
System Requirements
- Minimum Power Supply
- 500 W
- Power Connectors
- 8-pin
Dimensions
- Length
- 200 mm
Top Specs
- Memory
- 16GB, GDDR6
- Connectivity
- HDMI, DisplayPort
Important information
Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.
Description

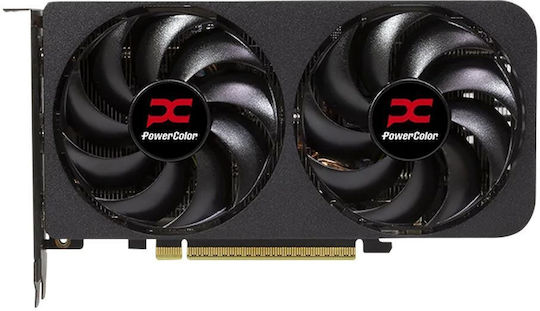

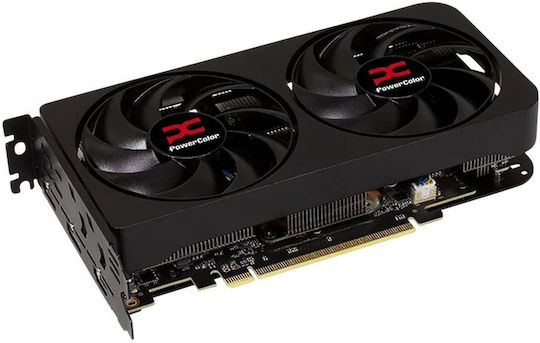

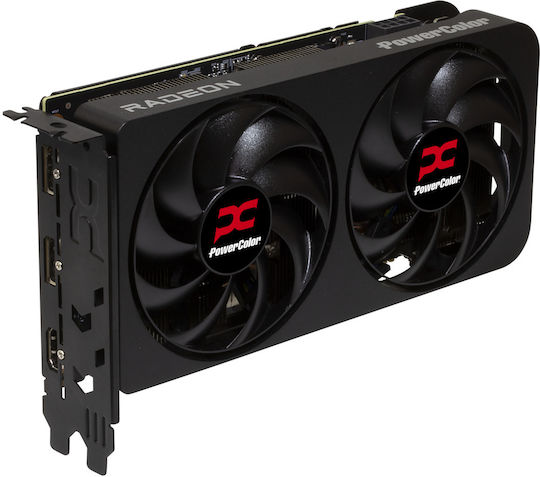

The PowerColor Radeon RX 9060 XT Reaper is a professional graphics card designed to deliver high performance and an exceptional gaming experience. Equipped with 16GB GDDR6 memory, it offers fast speeds and the capability to handle demanding graphics.
The card features a PCI Express x16 5.0 interface, ensuring fast and reliable communication with the system. Additionally, it supports a maximum resolution of 7680x4320, making it ideal for 4K gaming and professional work with multiple displays.
- The memory speed reaches 3320 MHz, providing rapid access to data and improved performance.
- It uses a 128-bit memory bus, which enhances data transfer speeds between the memory and the chipset.

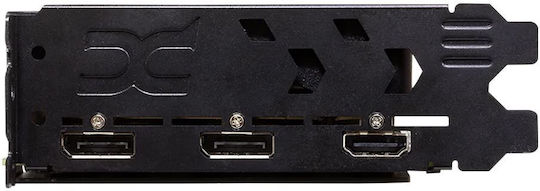

- The Radeon RX 9060 XT has 2 DisplayPort and 1 HDMI ports, allowing for the simultaneous connection of multiple displays.
- It is OverClocked, meaning it has the ability to operate at higher speeds than factory settings for even better performance.
For proper operation, it requires a minimum power supply of 500W and features an 8-pin power connector, providing the necessary power to ensure its performance. With a length of 200mm, it is designed to fit in many computer cases.
DESIGNED FOR EXTREMELY FAST GAMING, POWERED BY AMD RDNA™ 4
Experience the next level of 1440p gaming performance with AMD Radeon™ RX 9060 XT graphics cards. Powered by the groundbreaking RDNA™ 4 architecture with unified compute units featuring advanced raytracing and AI accelerators, support for AMD FidelityFX™ Super Resolution 4 technology, and AMD HYPR-RX for ultra-smooth, ultra-fast gameplay that makes every game count.
FidelityFX
FidelityFX™ Super Resolution 4 (FSR 4) technology is available to gamers, promising stunning performance and unparalleled graphics quality through a new upscaling engine (AI Upscaling) based on Machine Learning (ML) for managing Super Resolution. It is combined with enhanced frame generation techniques (AMD Fluid Motion Frames 2) and anti-lag (Radeon™ Anti-Lag 2). Thanks to these features, the new Radeon™ RX 9000 Series graphics cards promise smooth, uncompromising gameplay and unprecedented levels of realism in the latest photorealistic games at resolutions up to 4K, while offering higher performance per watt compared to the previous generation.
GPU AMD Radeon™ RX 9060 XT
Based on AMD's new "RDNA™ 4" architecture, the Radeon™ RX 9060 XT GPU features 32x Compute Units, 32x Ray Accelerators, 64x AI Accelerators, and 2,048x Stream Processors, while offering 32 MB Infinity Cache™.
Powerful AI Enhanced Visuals
Enjoy gaming like never before with immersive, realistic graphics powered by next-generation ray tracing, enhanced with AMD FidelityFX™ Super Resolution 4 ML-powered upscaling and increased streaming clarity through the Enhanced Media Engine.
3rd generation hardware-accelerated Ray Tracing
The new AMD Radeon™ RX 9000 series graphics cards feature specialized hardware for accelerating ray tracing technology, called the Ray Accelerator. More specifically, each compute unit (CU) includes a 3rd generation ray tracing acceleration unit, which achieves significantly higher performance per compute unit (CU) compared to the previous generation of the company's graphics cards.
3rd Generation AMD Infinity Cache™
The 4th generation AMD RDNA™ architecture is more efficient and effective thanks to the innovative 3rd generation AMD Infinity Cache™ memory architecture. This is a new level of cache, accessible by all elements of the graphics core for increased bandwidth and reduced latency. The 3rd generation Infinity Cache™ in Radeon™ RX 9000 Series GPUs has a size of 64MB and reaches up to 96MB (depending on the model). It essentially acts as a "bandwidth amplifier" for faster access to memory data and overall increased gaming performance.
2nd Generation AMD Radiance Display™ Engine
The 2nd generation AMD Radiance Display™ engine combined with DisplayPort™ 2.1a technology offers 12-bit HDR and full coverage of the REC2020 color space (68 billion colors) for incredible color accuracy at resolutions up to 8K with a refresh rate up to 165Hz. Of course, HDMI™ 2.1 connections are also supported.
HYPR-RX
Maximize performance by utilizing the full set of HYPR-RX features (e.g. AMD Radeon™ Anti-Lag 2, AMD Fluid Motion Frames 2, AMD Radeon™ Super Resolution, AMD Radeon™ Boost, AMD FidelityFX™ Super Resolution 4) with a single click from the AMD Software: Adrenalin Edition™. HYPR-RX automatically enables and configures the above features so you can enjoy significantly enhanced performance. Choose HYPR-RX Eco for a smooth gaming experience with reduced power consumption.
AMD Adrenalin AI
The new graphics cards come with AMD Adrenalin AI. This is a locally accelerated creative (or generative AI) application that can generate images, summarize documents, and perform various language/grammar tasks (such as translating, writing, summarizing, etc.). Additionally, it can function as a chatbot to answer various questions related to AMD and its products.
The Reaper Series
The PowerColor Reaper series is built for gamers who demand reliable performance and lasting durability. With robust cooling architecture and precision engineering, the Reaper is designed to withstand the demands of intense gaming sessions without compromise. Crafted with a unique focus on delivering consistent results, it is an unwavering ally for those ready to conquer any challenge. The Reaper series is gaming, pure and simple – nothing more, nothing less.
Dominate the game with the Reaper series
The Reaper series from PowerColor is designed to offer reliable and stable performance for gamers. Featuring high-quality Japanese dual ball bearings and high-performance ring blade fans, the robust dual-fan design ensures optimal airflow and durability. The copper base provides direct contact with the GPU and VRAM, maximizing cooling performance during demanding gaming sessions. The Reaper Series is built for those who value lasting performance in every battle.
Smart Fan Control
Accurate temperature sensor
Cooling with a fan ensures that the GPU operates within the optimal temperature range. The fans activate at 60°C and stop below 50°C.
Unique Ring Blade Design
Fast and silent.
Designed with 9 blades, which enhance fan speed and airflow, while keeping noise levels to a minimum.
