- With 169 mm for ideal handling, especially for drilling and screwing tasks above the head and in tight spaces
- Professional power: The 2-speed gearbox ensures powerful 30 Nm in drilling (up to 19 mm) and screwing (up to 7 mm)
- High-quality Auto-Lock 10 mm chuck
- Bosch Electronic Cell Protection (ECP): Protects the battery from overloading, overheating, and complete discharge
- Practical battery charge status indicator with 3 LEDs
- Integrated LED for illuminating the work area even in dark spots
- Motor brake for precise work during continuous screwing
- The battery can be charged at any time regardless of the charging status, without damaging the cells
The drill driver from Bosch operates with Bosch GBA 12V, Bosch GBA 10.8V batteries. It is suitable for both screwing - unscrewing, as well as for drilling holes. Specifically, it can drill into wood with a hole diameter of up to 19 millimeters, steel with a hole diameter of up to 10 millimeters, and various other building materials.
It has the ability to adjust the rotation speed and operating torque, so it can be set according to the task you want to perform. Usually, low values are needed for screwing - unscrewing and higher ones for drilling into walls or concrete. Its chuck can accommodate drill bits with a base diameter of up to 10 millimeters.
Specifications
The most compact package in its class
- With 169 mm for ideal handling, especially for drilling and screwing tasks above the head and in tight spaces
- Professional power: The 2-speed gearbox ensures powerful 30 Nm in drilling (up to 19 mm) and screwing (up to 7 mm)
- High-quality Auto-Lock 10 mm chuck
- Bosch Electronic Cell Protection (ECP): Protects the battery from overloading, overheating, and complete discharge
- Practical battery charge status indicator with 3 LEDs
- Integrated LED for illuminating the work area even in dark spots
- Motor brake for precise work during continuous screwing
- The battery can be charged at any time regardless of the charging status, without damaging the cells
Technical Specifications:
- Torque, max. (hard screwdriving applications) 30 Nm
- Torque, max. (soft screwdriving applications) 15 Nm
- No-load speed (1st gear/2nd gear) 0 – 400 / 1,300 rpm
- Chuck clamping range, min./max. 1 / 10 mm
- Battery voltage 12V (Compatible with 10.8V)
- Weight with battery 0.95 kg
- Torque settings 20+1
- Length 169.0 mm
Drill diameter
- Drilling diameter in wood, max. 19 mm
- Drilling diameter in steel, max. 10 mm
Screw diameter
- Screw diameter, max. 7 mm

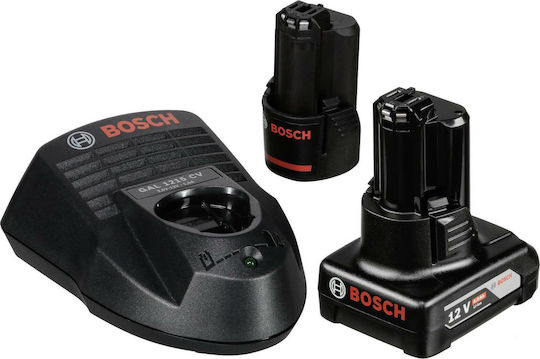

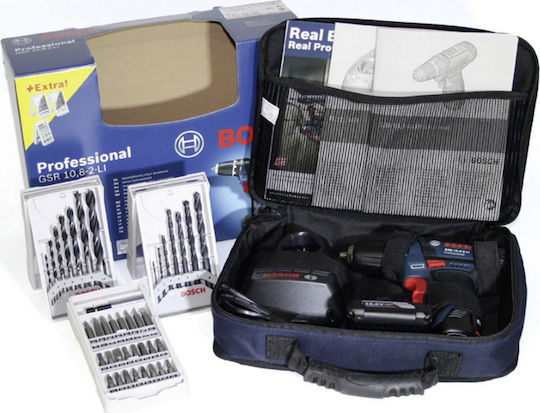

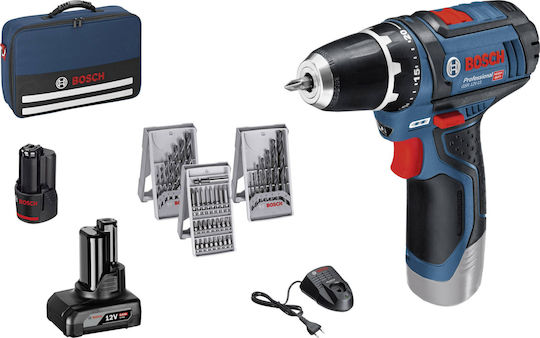

Package Contents
- Fabric carrying case
- 1x 12V battery 4.0Ah
- 1x 12V battery 2.0Ah
- Quick charger AL 1115 CV (charging time 1 hour)
- 24 pcs. screwdriver bits
- 7 wood drill bits
- 7 metal drill bits
Product Guides
Product Details
- Type
- Drill Driver
- Power Source
- Battery
- Brushless
- No
Battery Features
- Number of Batteries
- 2
- Battery Voltage
- 12 V
- Battery Capacity
- 4 Ah
- Secondary Battery Charge Ah
- 2 Ah
- Compatible Battery Type
- Bosch GBA 12V, Bosch GBA 10.8V
Drilling Abilities
- Steel Ø
- 10 mm
- Wood Ø
- 19 mm
Features & Functions
- Maximum Motor Speed
- 1300 rpm
- Speed Adjustment
- Yes
- Maximum Torque
- 30 Nm
- Maximum Number of Hits
- -
- Torque Adjustment
- Yes
- Percussive
- No
- Angle
- No
- Interchangeable Head
- No
- Reception
- Quick Change
- Maximum Chuck Diameter
- 10 mm
- Net Weight
- 870 gr
- Weight (with Battery)
- 1045 gr
Extra Features
- Carrying Case
- Soft Case
- Handle Included
- No
- Integrated Light
- Yes
