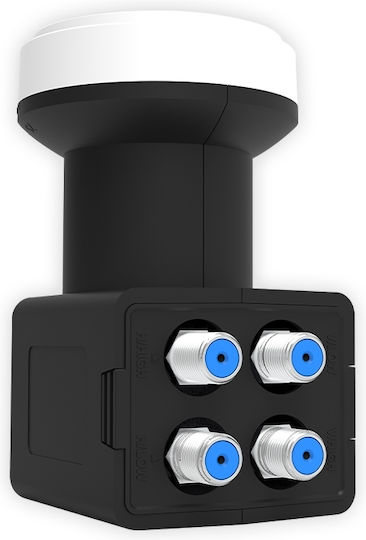

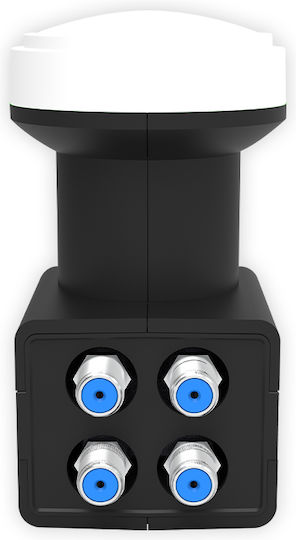

Gt-qtl2 LNB Quattro Four Outputs
LNB

Gt-qtl2 LNB Quattro Four Outputs

GT-QTL2 LNB QUATTRO with four outputs for connection to one satellite, exclusively for use with a Multiswitch.

  • Low band input: 10.7...11.70 GHz
  • High band input: 11.7...12.75 GHz
  • Low band output:...

GT-QTL2 LNB QUATTRO with four outputs for connection to one satellite, exclusively for use with a Multiswitch.

  • Low band input: 10.7...11.70 GHz
  • High band input: 11.7...12.75 GHz
  • Low band output: 950...1950 MHz
  • High band output: 1100...2150 MHz
  • Gain: 57dB (minimum)
  • Low noise figure: 0.1 dB
  • Output connector: F type, 75Ω female
  • L.O. frequency low band: 9.75...
See full description See full description
Review the product
Product report

Description

Description

GT-QTL2 LNB QUATTRO with four outputs for connection to one satellite, exclusively for use with a Multiswitch.

  • Low band input: 10.7...11.70 GHz
  • High band input: 11.7...12.75 GHz
  • Low band output: 950...1950 MHz
  • High band output: 1100...2150 MHz
  • Gain: 57dB (minimum)
  • Low noise figure: 0.1 dB
  • Output connector: F type, 75Ω female
  • L.O. frequency low band: 9.75 GHz, high band: 10.6 GHz
  • L.O. frequency stability: ± 0.5 MHz
  • DC consumption: 140 mA
  • Operating voltage: Vertical: 11...14 Vdc, Horizontal: 16...20 Vdc
  • Band switching: Low band: 0 Hz, High band: 22 KHz ± 4 KHz
  • Storage ambient temperature: -20°C ... +70°C

Manufacturer

Manufacturer Details

Warnings & Safety Information
See full description

Specifications

Specifications

Type
Quad
Low Noise Limit
-

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.

See all specifications

Description & Specifications

GT-QTL2 LNB QUATTRO with four outputs for connection to one satellite, exclusively for use with a Multiswitch.

  • Low band input: 10.7...11.70 GHz
  • High band input: 11.7...12.75 GHz
  • Low band output: 950...1950 MHz
  • High band output: 1100...2150 MHz
  • Gain: 57dB (minimum)
  • Low noise figure: 0.1 dB
  • Output connector: F type, 75Ω female
  • L.O. frequency low band: 9.75 GHz, high band: 10.6 GHz
  • L.O. frequency stability: ± 0.5 MHz
  • DC consumption: 140 mA
  • Operating voltage: Vertical: 11...14 Vdc, Horizontal: 16...20 Vdc
  • Band switching: Low band: 0 Hz, High band: 22 KHz ± 4 KHz
  • Storage ambient temperature: -20°C ... +70°C

Manufacturer

Manufacturer Details

Warnings & Safety Information
Type
Quad
Low Noise Limit
-

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.

16,99 €
14,00 €   shipping cost
