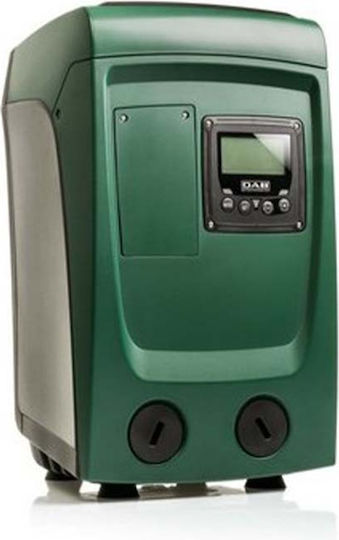

DAB E-Sybox Single Stage Single Phase Water Pressure Pump with 2 Litre Container 2.1hp
Water Pressure Pumps

DAB E-Sybox Single Stage Single Phase Water Pressure Pump with 2 Litre Container 2.1hp

Key features:

  • Stable pressure with Inverter
  • Extremely quiet, only 45dB
  • Up to 30% reduction in consumption
  • Ready All-in-One system
See full description
Review the product
Product report

Description

Description

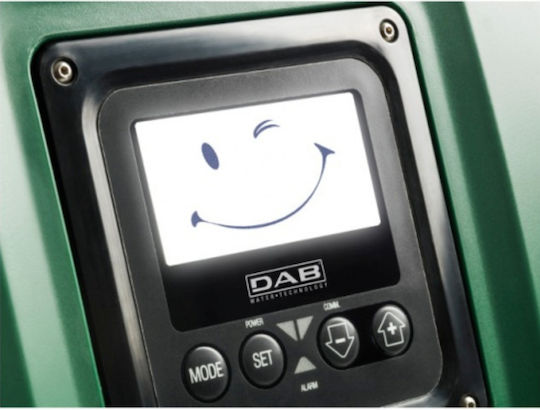

Complete pressure unit for domestic and urban installations. No additional components are required for its installation. Includes a multistage self-priming pump, inverter, flow and pressure sensors, high-resolution LCD screen, and a 2-liter pressure tank. It can be installed horizontally or vertically even in a non-ventilated space because it is water-cooled. For pumping clean liquid without solid microparticles and mineral oils, chemically neutral, similar in properties to water. The water-cooled pump, the ABS soundproof construction box, and the 4 anti-vibration bases make it completely silent (45 dB).

Technical specifications

  • Water-cooled two-stage pump
  • Completely silent operation with a noise level of only 45 dB!
  • Suitable for drinking water
  • Inverter for energy saving & constant pressure
  • Maximum operating pressure: 8 bar
  • Maximum operating temperature: 40°C
  • Self-priming up to 8 meters
  • Power: 2.1hp
  • Voltage: 1x 220/240V
  • Manometric: 65m
  • Flow rate: 7.2m³/h
  • Connection ports: 1'' x 1''
  • Weight: 27kg
  • Dimensions: 263(L) x 352(W) x 564(H)

At a glance

  • Inverter Technology: Continuous adjustment of motor speed to maintain constant pressure and drastically reduce power consumption.

  • Silent Operation: Noise production of only 45 dB during normal use, thanks to the water-cooled motor and anti-vibration mounts.

  • Energy Efficiency: Reduction of electricity costs by up to 30% compared to traditional booster pump units.

  • All-in-One Design: Full integration of the pump, two-liter expansion tank, and sensors into a single compact enclosure.

Stable Pressure Without Fluctuations

Enjoy your shower without unpleasant surprises in water pressure, even if someone else turns on a tap at the same time. The advanced Inverter technology of the DAB E.SYBOX automatically and precisely adjusts the speed of the 2.1 HP motor according to demand, keeping the pressure absolutely stable while drastically reducing unnecessary electricity consumption.

Absolute Silence in Your Home

Forget the annoying noise of common water pressure systems that disturb your home. Thanks to the innovative water-cooled motor, the E.SYBOX uses water itself for cooling instead of noisy fans. It operates almost silently at 45dB, allowing you to install it even indoors or near bedrooms without losing your peace and quiet.

All-in-One Installation Anywhere

Don't worry about limited space or complicated piping. This compact All-in-One system integrates the pump, the 2-liter expansion tank, and the protection sensors into a sleek casing. It allows you to install it either horizontally or vertically, reducing the required space by 30% and offering a spotless, professional appearance to your space.

Specifications

  • Input Power: 1.55 kW / 2.1 HP

  • Operating Voltage: 1x 220-240 V / 50-60 Hz

  • Maximum Head: 65 meters

  • Maximum Flow Rate: 120 liters per minute (7.2 m³/h)

  • Noise Level: 45 dB in normal use

  • Maximum Operating Pressure: 8 bar (800 kPa)

  • Integrated Expansion Tank: 2 liters

  • Protection Rating: IPX4

  • Connection Ports: 1 inch BSP (Suction/Discharge)

  • Maximum Suction Depth: 8 meters

  • Wireless Communication: Integrated (interfacing up to 4 pumps)

  • Protection: Built-in dry run protection system

  • Part Number (PN): 60212309

Manufacturer

Manufacturer Details

Warnings & Safety Information
See full description

Specifications

Specifications

Noise Level
45 dB
Type
Single Stage
Power Source
Single Phase
Maximum Pressure
8 bar
Maximum Suction Height
65 m
Horsepower
2.1 hp
Maximum Supply
7.5 m³/h
Container Capacity
2 lt
Inverter
Yes

Inverter

Inverter water pressure systems automatically adjust the motor speed according to the water demand, in order to maintain constant pressure in the network. They offer quieter operation, lower power consumption, and less wear compared to conventional pressure systems. They are ideal for homes or commercial spaces where water pressure often fluctuates.
Weight
24.8 kg

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.

See all specifications

Description & Specifications

Complete pressure unit for domestic and urban installations. No additional components are required for its installation. Includes a multistage self-priming pump, inverter, flow and pressure sensors, high-resolution LCD screen, and a 2-liter pressure tank. It can be installed horizontally or vertically even in a non-ventilated space because it is water-cooled. For pumping clean liquid without solid microparticles and mineral oils, chemically neutral, similar in properties to water. The water-cooled pump, the ABS soundproof construction box, and the 4 anti-vibration bases make it completely silent (45 dB).

Technical specifications

  • Water-cooled two-stage pump
  • Completely silent operation with a noise level of only 45 dB!
  • Suitable for drinking water
  • Inverter for energy saving & constant pressure
  • Maximum operating pressure: 8 bar
  • Maximum operating temperature: 40°C
  • Self-priming up to 8 meters
  • Power: 2.1hp
  • Voltage: 1x 220/240V
  • Manometric: 65m
  • Flow rate: 7.2m³/h
  • Connection ports: 1'' x 1''
  • Weight: 27kg
  • Dimensions: 263(L) x 352(W) x 564(H)

At a glance

  • Inverter Technology: Continuous adjustment of motor speed to maintain constant pressure and drastically reduce power consumption.

  • Silent Operation: Noise production of only 45 dB during normal use, thanks to the water-cooled motor and anti-vibration mounts.

  • Energy Efficiency: Reduction of electricity costs by up to 30% compared to traditional booster pump units.

  • All-in-One Design: Full integration of the pump, two-liter expansion tank, and sensors into a single compact enclosure.

Stable Pressure Without Fluctuations

Enjoy your shower without unpleasant surprises in water pressure, even if someone else turns on a tap at the same time. The advanced Inverter technology of the DAB E.SYBOX automatically and precisely adjusts the speed of the 2.1 HP motor according to demand, keeping the pressure absolutely stable while drastically reducing unnecessary electricity consumption.

Absolute Silence in Your Home

Forget the annoying noise of common water pressure systems that disturb your home. Thanks to the innovative water-cooled motor, the E.SYBOX uses water itself for cooling instead of noisy fans. It operates almost silently at 45dB, allowing you to install it even indoors or near bedrooms without losing your peace and quiet.

All-in-One Installation Anywhere

Don't worry about limited space or complicated piping. This compact All-in-One system integrates the pump, the 2-liter expansion tank, and the protection sensors into a sleek casing. It allows you to install it either horizontally or vertically, reducing the required space by 30% and offering a spotless, professional appearance to your space.

Specifications

  • Input Power: 1.55 kW / 2.1 HP

  • Operating Voltage: 1x 220-240 V / 50-60 Hz

  • Maximum Head: 65 meters

  • Maximum Flow Rate: 120 liters per minute (7.2 m³/h)

  • Noise Level: 45 dB in normal use

  • Maximum Operating Pressure: 8 bar (800 kPa)

  • Integrated Expansion Tank: 2 liters

  • Protection Rating: IPX4

  • Connection Ports: 1 inch BSP (Suction/Discharge)

  • Maximum Suction Depth: 8 meters

  • Wireless Communication: Integrated (interfacing up to 4 pumps)

  • Protection: Built-in dry run protection system

  • Part Number (PN): 60212309

Manufacturer

Manufacturer Details

Warnings & Safety Information
Noise Level
45 dB
Type
Single Stage
Power Source
Single Phase
Maximum Pressure
8 bar
Maximum Suction Height
65 m
Horsepower
2.1 hp
Maximum Supply
7.5 m³/h
Container Capacity
2 lt
Inverter
Yes

Inverter

Inverter water pressure systems automatically adjust the motor speed according to the water demand, in order to maintain constant pressure in the network. They offer quieter operation, lower power consumption, and less wear compared to conventional pressure systems. They are ideal for homes or commercial spaces where water pressure often fluctuates.
Weight
24.8 kg

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.
