Simar NX2194.34
Hydrometers

Simar NX2194.34

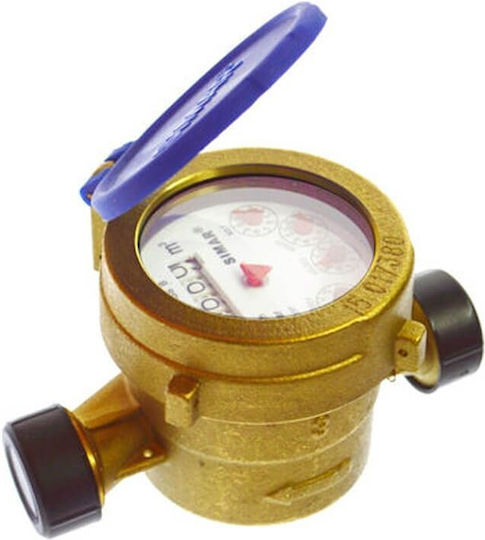

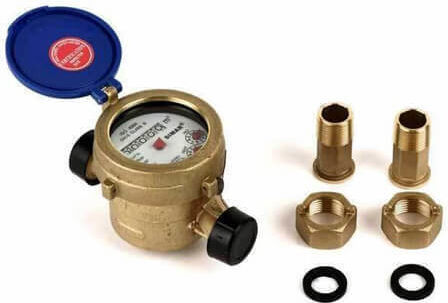

Liquid type water meter 3/4" SIMAR with single jet and direct reading. It features straight reading on numbered rollers and has a brass body.

  • High accuracy.
  • Supply: 3/4''.
  • Connection thread with...

Liquid type water meter 3/4" SIMAR with single jet and direct reading. It features straight reading on numbered rollers and has a brass body.

  • High accuracy.
  • Supply: 3/4''.
  • Connection thread with union.
  • Mechanical transmission.
  • Small and lightweight, suitable for cold or hot water.
  • According to ISO9001 Standard Class B.
  • Water temperature: -30°C for cold...
See full description See full description
Review the product
Product report

Description

Description

Liquid type water meter 3/4" SIMAR with single jet and direct reading. It features straight reading on numbered rollers and has a brass body.

  • High accuracy.
  • Supply: 3/4''.
  • Connection thread with union.
  • Mechanical transmission.
  • Small and lightweight, suitable for cold or hot water.
  • According to ISO9001 Standard Class B.
  • Water temperature: -30°C for cold water, up to 90°C for hot water.
  • Water pressure: 1MPa (PN: 1.6MPa / 16bar) ΔP: 0.1MPa.
  • From minimum flow (Qmin) to transitional flow (Qt) deviation: ± 5%.
  • From transitional flow (Qt) to overload pressure (Qs) deviation: ± 2%.
  • Dimensions: 130mm (length without union) - 70mm (width) - 80mm (height with lid closed).
  • Country of manufacture: Italy.

Manufacturer

Manufacturer Details

Warnings & Safety Information
See full description

Specifications

Specifications

Union
With Union
Oil
No

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.

See all specifications

Description & Specifications

Liquid type water meter 3/4" SIMAR with single jet and direct reading. It features straight reading on numbered rollers and has a brass body.

  • High accuracy.
  • Supply: 3/4''.
  • Connection thread with union.
  • Mechanical transmission.
  • Small and lightweight, suitable for cold or hot water.
  • According to ISO9001 Standard Class B.
  • Water temperature: -30°C for cold water, up to 90°C for hot water.
  • Water pressure: 1MPa (PN: 1.6MPa / 16bar) ΔP: 0.1MPa.
  • From minimum flow (Qmin) to transitional flow (Qt) deviation: ± 5%.
  • From transitional flow (Qt) to overload pressure (Qs) deviation: ± 2%.
  • Dimensions: 130mm (length without union) - 70mm (width) - 80mm (height with lid closed).
  • Country of manufacture: Italy.

Manufacturer

Manufacturer Details

Warnings & Safety Information
Union
With Union
Oil
No
