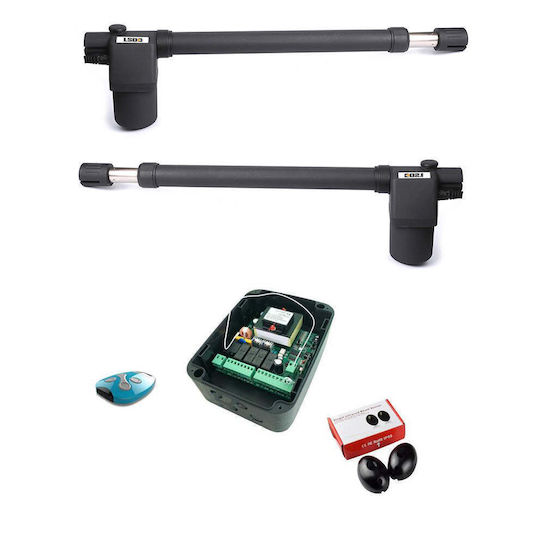

The LSD LS400-S7-150 gate operator kit automates double-leaf swing gates and includes two linear electromechanical actuators with permanent grease lubrication. Each motor operates at 230 Vac and can move a gate leaf weighing up to 250 kg and measuring up to 3 m wide. The maximum opening angle is 120°. The operator can be disengaged with a key, allowing the gate to be moved manually in the event of a power outage.

The control panel supports automatic closing, connection of an electric lock, and motor force adjustment. The kit comes with one wireless remote control, one safety beacon, and two pairs of photocells. It also supports slow stopping and connection of internal and external safety photocells.

• Operator type: Linear, electromechanical, permanently grease-lubricated, non-reversible
• Motors: 2
• Maximum gate leaf weight: 250 kg
• Maximum gate leaf width: 3 m
• Maximum opening angle: 120°
• Operating voltage: 230 Vac, single-phase
• Motor power: 280 W per motor
• Opening and closing cycles per hour: Up to 20 at 20 °C
• Usable piston stroke: 40 cm
• Opening/closing time: 33 sec
• Control panel: 1, model S7-150
• Remote control: 1 wireless remote with 4 buttons
• Remote control frequency: 433.92 MHz
• Remote control coding: Rolling Code
• Maximum number of remote controls: 250
• Safety beacon: 1
• Photocells: 2 wired pairs
• Automatic closing: Supported
• Electric lock connection: Supported
• Motor force adjustment: Supported
• Slow stopping: Supported
• Housing material: Aluminum
• Housing color: Black
• Release method: Key-operated
• Protection rating: IP43
• Operating temperature range: From -25 °C to 60 °C
• Motor winding protection: Thermal, at 150 °C
• Package contents: 2 arms, 1 control panel, 1 remote control, 1 set of photocells, mounting brackets and pins, 2 x 8 μF capacitors, 2 release keys, and installation instructions in Greek
