Description
Specifications

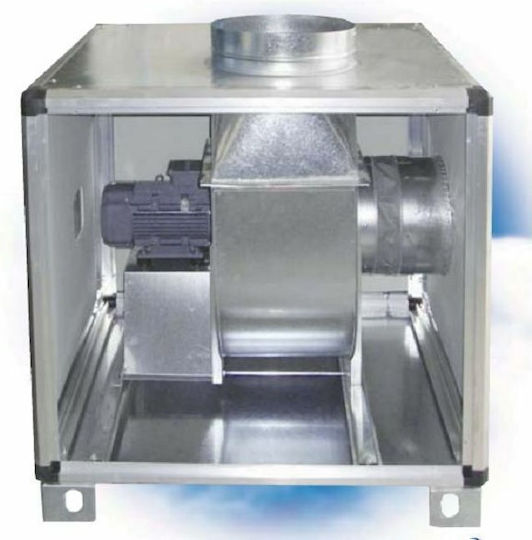

The Airtechnic ventilation motor is housed in a sound-insulated galvanized casing and features a 300 mm diameter intake port and a rectangular outlet, which requires an outlet flange. The single-inlet fan is located inside the casing and connected with a special anti-vibration connector to dampen vibrations.
The casing features an aluminium profile, three-way plastic corners and side panels made of reinforced sheet steel. The panels have 5 mm internal insulation made of sound-absorbing, self-extinguishing material. The motor and casing are supplied assembled.
- Type: Ventilation motor
- Casing: Galvanized and sound-insulated
- Power: 3 hp / 2.20 kW
- Voltage: 230 V
- Rotational speed: 1,450 rpm
- Intake port diameter: 300 mm
- Outlet: Rectangular
- Airflow: 9,000 m³/h
- Dimensions: 82 × 82 × 91 cm
- Casing profile material: Aluminium
- Side panel material: Reinforced sheet steel
- Insulation material: Sound-absorbing, self-extinguishing
- Insulation thickness: 5 mm
- Connector: Anti-vibration
- Fan: Single-inlet
- Delivery condition: Assembled
Specifications
- Type
- Motor
- Diameter
- 300 mm
Dimensions
- Length
- 820 mm
- Width
- 910 mm
- Length
- 910 mm
Important information
Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.
