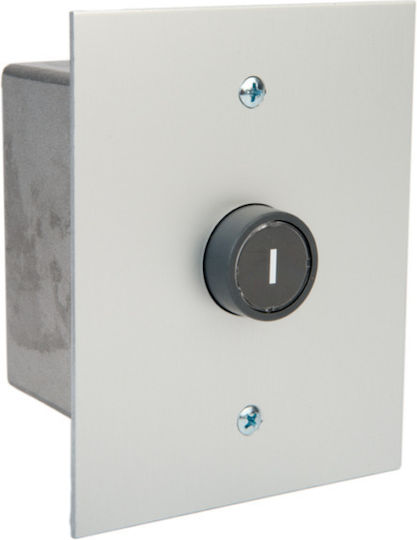

Built-In Push Button Panel 1 Button Gdte-1
Industrial Buttons

Built-In Push Button Panel 1 Button Gdte-1

Industrial type aluminum push button panel with one button. Suitable for controlling sliding and hinged doors, shutters, garage doors, traffic control barriers, as well as for all kinds of automation....

Industrial type aluminum push button panel with one button. Suitable for controlling sliding and hinged doors, shutters, garage doors, traffic control barriers, as well as for all kinds of automation. It is installed within the wall and requires appropriate infrastructure.

The push button panel features:

  • Voltage routing (e.g., phase of single-phase current...
See Description & Specifications See Description & Specifications
25 00 €
Delivery by Thu, 08 Oct
14,00 €   shipping cost
Sent from Greece
From NextSystems
Greece
20+ pieces
See Industrial Materials on the page of NextSystems

Learn more about invoicing
Review the product
Product report

Description & Specifications

Industrial type aluminum push button panel with one button. Suitable for controlling sliding and hinged doors, shutters, garage doors, traffic control barriers, as well as for all kinds of automation. It is installed within the wall and requires appropriate infrastructure.

The push button panel features:

  • Voltage routing (e.g., phase of single-phase current 230 VAC)
  • Use in control panels with cold contacts
  • German manufacturing by GEBA

Technical specifications:

  • Ue: 240 V/AC
  • Ui: 300 V
  • Ith: 16 A
  • Ie: 5 A
  • Imin: 5 mA
  • Maximum line fuse rating: 16 A gl
  • Usage category according to: EN 60947 AC15
  • Maximum wire cross-section: 2.5 mm²
  • Protection rating against dust and moisture: IP-65
  • Dimensions: 70 (width) x 90 (height) x 65 (depth) mm
  • Contacts: Normally Open (NO) with automatic reset

Manufacturer

Manufacturer Details

Warnings & Safety Information
Type
Push Button Panel

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.
