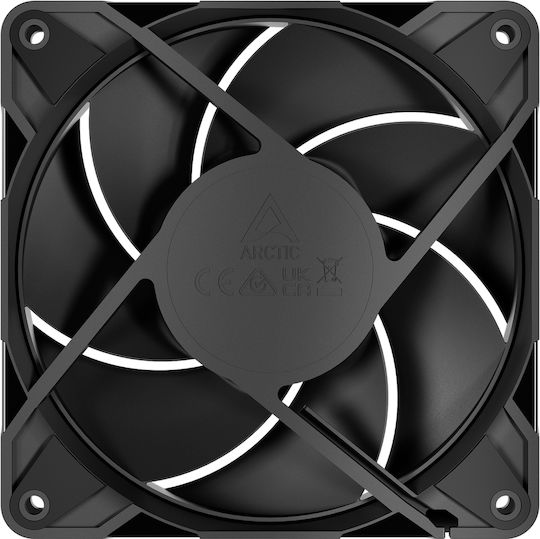

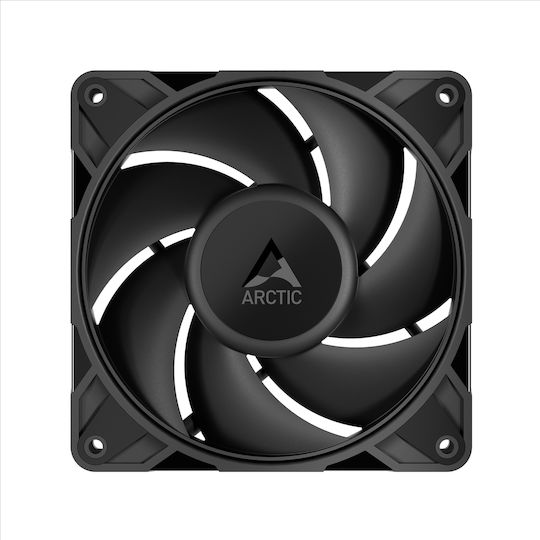

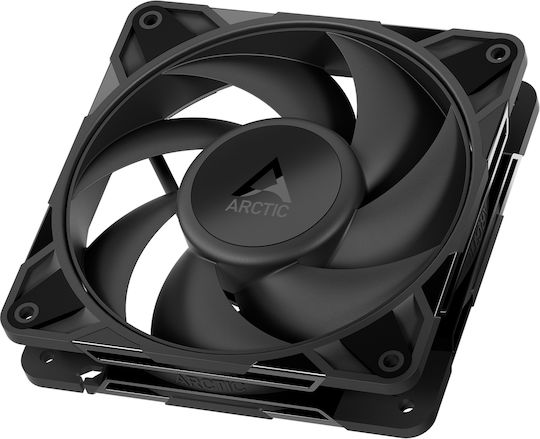

The Arctic P12 Pro fan has a static pressure of 6.9 mmH₂O, allowing it to move air effectively through restricted spaces such as heatsinks, perforated panels, and mesh filters. The blade design combines airflow with smooth operation, while the fluid dynamic bearing (FDB) and extended shaft help reduce noise and vibration. Automated balancing improves operating precision, while the microcontroller reduces motor noise, compensates for load fluctuations, and protects against inrush currents and reverse polarity.
Speed is controlled via PWM, with a range of 600–3000 rpm and the ability to stop spinning below 5% PWM. At low speeds, it provides increased airflow and static pressure, with a noise level of up to 25 dB(A).
- Type: Case fan
- Diameter: 120 mm
- Thickness: 25 mm
- Rotational speed: 600–3000 rpm
- Speed control: PWM
- Airflow: Up to 77 cfm (131 m³/h)
- Static pressure: 6.9 mmH₂O
- Noise level: Up to 25 dB
- Bearing: Fluid dynamic (FDB)
- Connector: 4-pin PWM
- Operating voltage: 12 V DC
- Starting voltage: 3.3 V DC
- Current: 0.33 A
- Cable length: 400 mm
- Color: Black
- Lighting: No LED
- Operating temperature: 0–40 °C
- Weight: 185 g
- Quantity: 1
Main Specifications
- Dimension
- 120 mm
- Colour
- Black
- Packaging
- 1 pcs
Technical Specifications
- Fan Speed (Max)
- 3000 rpm
- Noise Level (Max)
- 25 dB
- Air Flow (Max)
- 77 cfm
- Connection
- 4-Pin PWM
- LED Color
- Without LEDs
- Reverse Blade
- No
- Air Pressure
- 6.9 mmH₂O: millimeters of water
Important information
Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.
