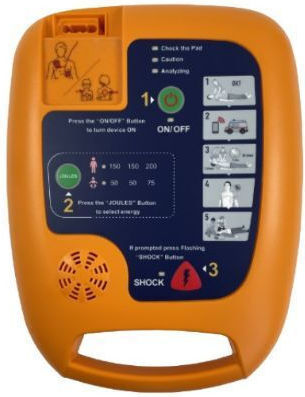

The Meditech 632-05-002 automated defibrillator guides the operator with voice prompts and LED indicators, while the defibrillation process follows three steps. The energy level is selected for adults or children, and the biphasic waveform delivers a maximum energy of 200 J. The device locks to prevent accidental defibrillation.

The defibrillator performs daily, weekly and monthly self-tests and stores up to 60 hours of data in its memory. ECG signals and events can be transferred to a computer via infrared, and the device can be used inside its carry case.

• Operation: Automatic
• Defibrillation steps: 3
• Patient modes: Adult, child
• Energy sequence: 50, 50, 75 J and 150, 150, 200 J
• Maximum energy: 200 J
• Waveform: Biphasic, exponential and truncated exponential
• Charging time: Less than 6 seconds at 150 J and less than 8 seconds at 200 J
• Operating instructions: Voice prompts and visual LED indicators
• Languages: 2 options, with manual selection
• Volume: 5 levels
• Controls: 2 buttons, ON/OFF and Shock
• Protection: Lock to prevent accidental defibrillation
• Self-test: Daily, weekly and monthly
• Memory: Up to 60 hours
• ECG storage: 1,500 events
• Data transmission: Infrared
• Battery: Disposable LiMnO2 type, 12 V and 3,000 mAh
• Battery life: At least 5 years
• Operating temperature: 0–40 °C
• Operating humidity: 30%–95%, non-condensing
• Storage temperature without battery: -20–55 °C
• Storage humidity without battery: Up to 93%, non-condensing
• Water and dust resistance: IPX55
• Weight with battery: 1.9 kg
• Package contents: Carry case, battery, pad, data transmission software
