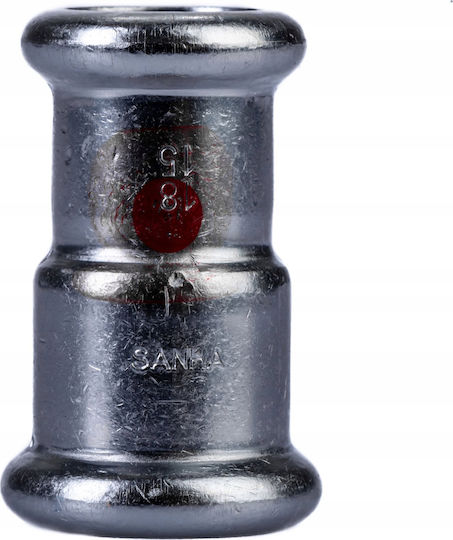

Reducing coupling SANHA-Therm with dimensions 28x18 mm, made from galvanized carbon steel, suitable for closed heating systems and compressed air installations. It features seals made of ethylene propylene diene monomer (EPDM) rubber. Installation is quick and does not require an open flame.

Applications:

• Compressed air systems (oil content ≤ 25 mg/m³)
• Wet spray installations
• Closed heating systems
• Shipbuilding industry
• Cold water systems

In high humidity environments, additional anti-corrosion protection is recommended.

Technical specifications:

• Manufacturer: Sanha
• Manufacturer code: 1242402818
• Connection material: steel
• Material quality: St 34.2 (1.0034)
• Surface protection: galvanizing/electrolytic galvanizing
• Surface treatment: untreated
• Shape: straight, one-piece, reducer
• Outer diameter of connection pipe 1: 28 mm
• Connection 1: compression coupling
• Outer diameter of connection pipe 2: 18 mm
• Connection 2: compression coupling
• Seal material: ethylene propylene diene monomer (EPDM) rubber
• Length: 55 mm
• Maximum operating pressure at 20°C: 16 bar
• With seals: yes
• Weight: 0.03 kg
