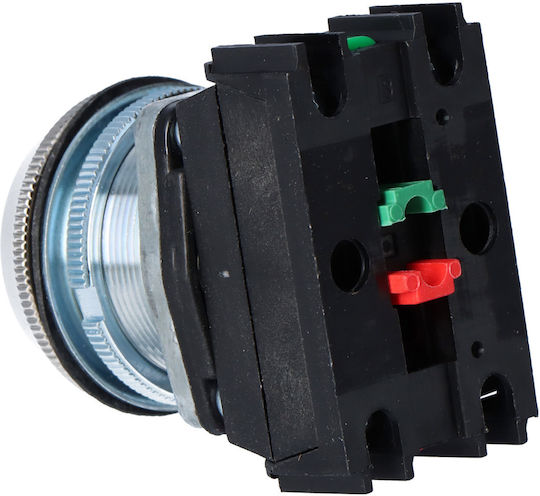

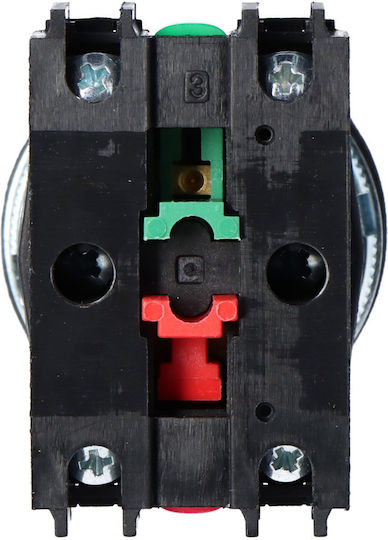

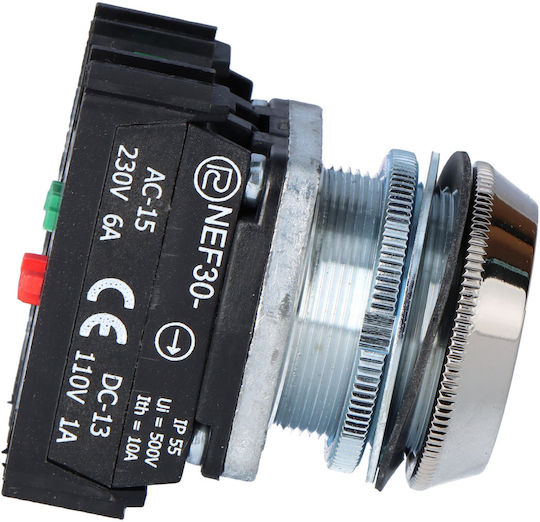

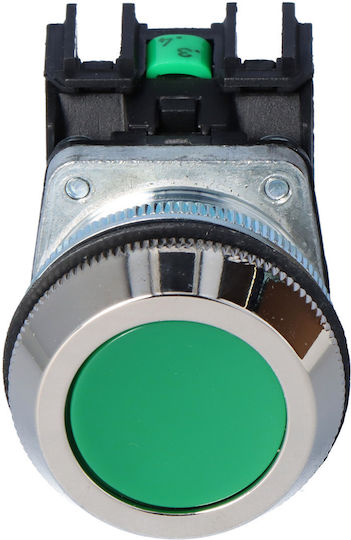

The NEF30 safety button is designed to be integrated into control panels, signage panels, or directly onto machine and device bodies with a mounting hole diameter of 30 mm. It has a modular design and consists of an activation unit, also known as the button activator, and a connection unit, which can include 1, 2, or 3 switches connected to the activator.

The head of the activator is available in red color. The button is mounted using fastening plugs, without the need to disconnect the activator and switches. It has an IP56 protection rating and can be successfully installed in areas with high humidity, such as industrial environments or outdoor spaces, provided additional protection is applied.

• Includes: 1 normally open contact and 1 normally closed contact
• Release: by rotation
• Rated insulation voltage: 500 V AC
• Protection rating of the upper part: IP56
• Protection rating of the lower part: IP20
• AC15 AC current 230/400 V: 6/4 A
