Valvex Valve
Air Tools Parts

Valvex Valve

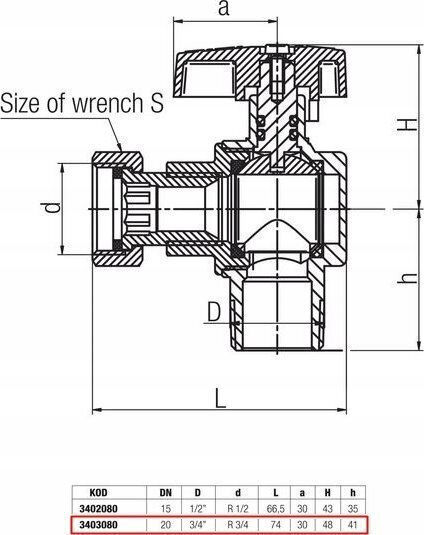

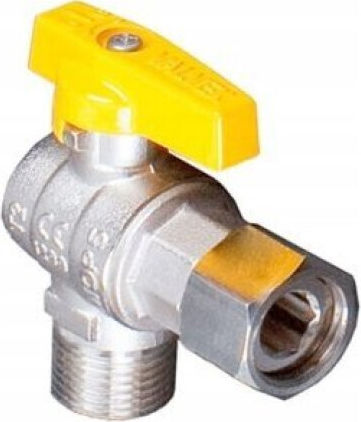

The Valvex ORION angle spherical gas valve with rotating nut is designed for connections to gas boilers. The body is made from brass CW617N and features a flat NBR gasket. The operating pressure is...

The Valvex ORION angle spherical gas valve with rotating nut is designed for connections to gas boilers. The body is made from brass CW617N and features a flat NBR gasket. The operating pressure is MOP 5 and the operating temperature range is from -20°C to +60°C.

  • Manufacturer: Valvex
  • Manufacturer code: 3403080
  • Type: DN20
  • MOP: 5
  • Material: brass CW617N
  • ...
See full description See full description

Learn more about invoicing
Review the product
Product report

Description

Description

The Valvex ORION angle spherical gas valve with rotating nut is designed for connections to gas boilers. The body is made from brass CW617N and features a flat NBR gasket. The operating pressure is MOP 5 and the operating temperature range is from -20°C to +60°C.

  • Manufacturer: Valvex
  • Manufacturer code: 3403080
  • Type: DN20
  • MOP: 5
  • Material: brass CW617N
  • Sealing: flat NBR
  • Application: connection installations in gas boilers
  • Temperature class: T2 (according to EN 3311998/A12010)

Manufacturer

Manufacturer Details

Warnings & Safety Information
See full description

Specifications

Specifications

Product Type
Valve
Pieces
1 pcs

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.

See all specifications

Description & Specifications

The Valvex ORION angle spherical gas valve with rotating nut is designed for connections to gas boilers. The body is made from brass CW617N and features a flat NBR gasket. The operating pressure is MOP 5 and the operating temperature range is from -20°C to +60°C.

  • Manufacturer: Valvex
  • Manufacturer code: 3403080
  • Type: DN20
  • MOP: 5
  • Material: brass CW617N
  • Sealing: flat NBR
  • Application: connection installations in gas boilers
  • Temperature class: T2 (according to EN 3311998/A12010)
