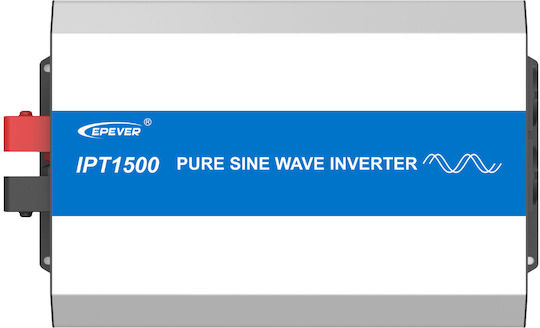

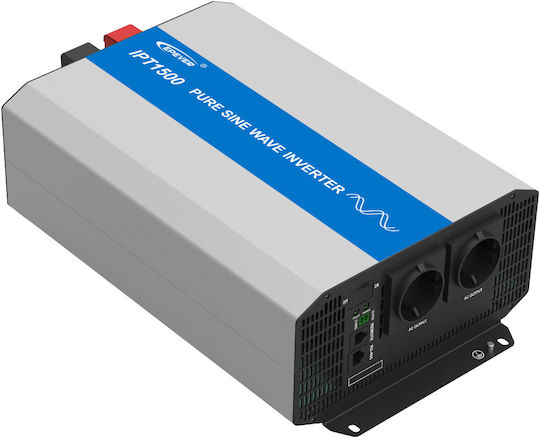

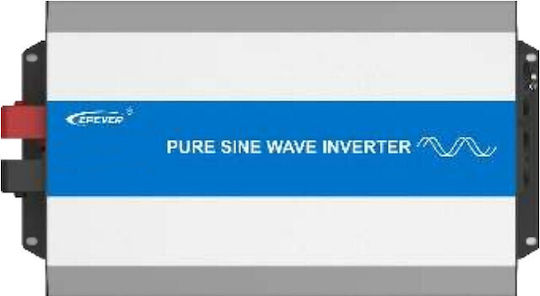

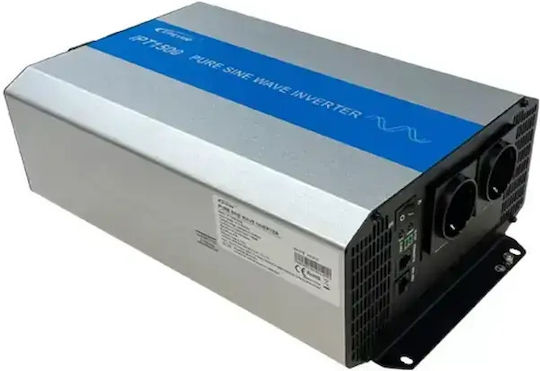

The Epsolar IPT1500-12(E) pure sine wave inverter converts 12 V DC to 220 V AC and has a continuous rated power of 1500 W. It provides peak power of 3000 W for 5 s, with efficiency above 90% and low standby power consumption. It supports energy-saving mode and can be connected to an MT91 LCD display, a computer, or a mobile phone.
- Type: Pure sine wave
- Rated input voltage: 12 V
- Input voltage range: 8–16 V DC
- Rated power: 1500 W
- Peak power: 3000 W for 5 s
- Output voltage: 220 V AC (±3%)
- Output frequency: 50/60 Hz ± 0.2%
- Output waveform: Pure sine wave
- Output distortion (THD): Below 3% for resistive loads
- Efficiency: Above 90%
- Standby power consumption: Low
- Energy-saving mode: Yes
- Connections: MT91 LCD display, computer, and mobile phone
- Protection: Overload, over-discharge, overheating, and short-circuit protection
- Compatible power sources: 12 V DC lead-acid and lithium-ion batteries
- Power supply: Single-phase
- Type
- Pure Sine Wave
- Rated power
- 1500 W
- Nominal Input Voltage
- 12 V
- Power supply
- Single Phase
