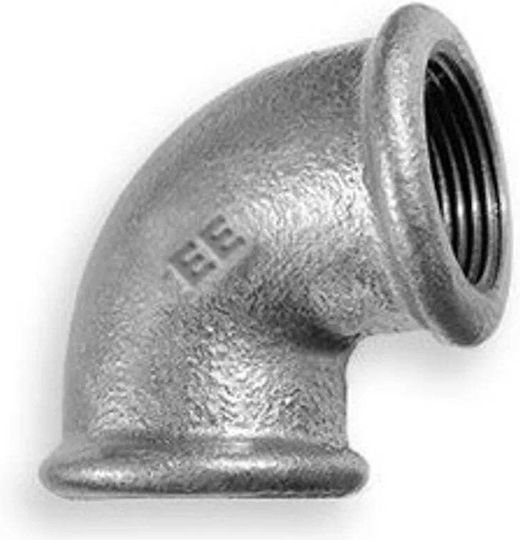

Reducing Elbow Nut 1x3/4" Galvanized A1 No 6 No 90r
Pipe Elbow Fittings

Reducing Elbow Nut 1x3/4" Galvanized A1 No 6 No 90r

The 90° reducing pipe elbow with union, 1" x 3/4", is made of white malleable cast iron and has a galvanized finish. It is designed for threaded pipe connections and for conveying non-aggressive...

The 90° reducing pipe elbow with union, 1" x 3/4", is made of white malleable cast iron and has a galvanized finish. It is designed for threaded pipe connections and for conveying non-aggressive liquids and gases.

The galvanized coating has a mass of over 500 g/m², corresponding to an average thickness of 70 μm. The operating pressure is 2.5 MPa (25 bar) at...

See Description & Specifications See Description & Specifications
8 90 €
Delivery Wed, 18 Nov - Tue, 24 Nov
14,00 €   shipping cost
Sent from Greece
From Getters 4.5 (115)
4.5 (115 reviews)
Greece
20+ pieces
See Hose Connections on the page of Getters

Shop selection criteria

Why do we recommend buying from this shop?

We don’t only look at the price. We weigh different factors to find an offer that combines a good price, fast delivery and a reliable purchase.

  • Product price

    We calculate the total price you will pay and any discounts available from the shop.

  • Shipping & delivery time

    We check how quickly the product can be shipped and when you will receive it, based on your address.

  • Shop reliability

    We look at how often shops complete their orders successfully and how consistently they serve their customers.

  • Official reseller

    Where available, we take into account whether the shop is an official reseller of the brand.

Learn more about invoicing
Review the product
Product report

Description & Specifications

The 90° reducing pipe elbow with union, 1" x 3/4", is made of white malleable cast iron and has a galvanized finish. It is designed for threaded pipe connections and for conveying non-aggressive liquids and gases.

The galvanized coating has a mass of over 500 g/m², corresponding to an average thickness of 70 μm. The operating pressure is 2.5 MPa (25 bar) at temperatures from -20°C to 120°C, and 2.0 MPa (20 bar) at 300°C, with intermediate pressure values between 120°C and 300°C.

  • Fitting type: Reducing pipe elbow
  • Angle: 90°
  • Size: 1" x 3/4"
  • Thread type: Female
  • Material: White malleable cast iron EN-GJMW-400-5 according to EN 1562, equivalent to W 400-05 according to ISO 5922
  • Finish: Galvanized
  • Standards: PN-EN 10242 and ISO 49
  • Design symbol: A
  • Tensile strength: At least 400 MPa
  • Elongation: At least 5%
  • Hardness: Up to 200 HB
  • Galvanized coating mass: Over 500 g/m²
  • Average coating thickness: 70 μm
  • Dimension A: 35 mm
  • Dimension B: 36 mm
  • Weight: 0.145 kg

Manufacturer

Manufacturer Details

Warnings & Safety Information

Specifications

Size
1", 3/4"
Material
Galvanized
for Pex Pipe
No
Type
-

Dimensions

Diameter
1 mm

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.
