Circuit Breaker C120n B80-3 B 80A 3-Pole
Automatic Circuit Breaker

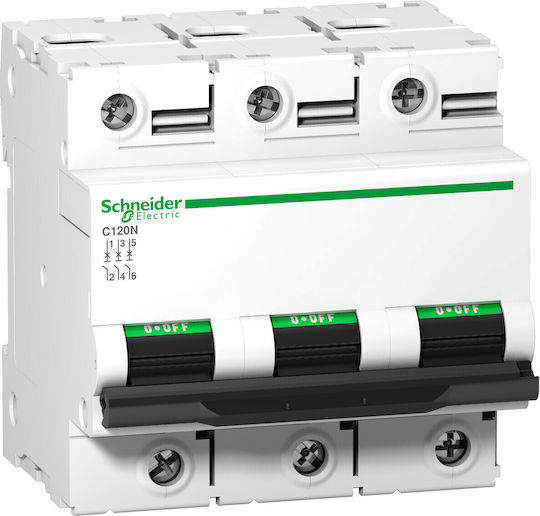

Circuit Breaker C120n B80-3 B 80A 3-Pole

The Schneider Electric C120N three-pole circuit breaker is designed for electrical installations in residential and industrial settings. It has a B operating characteristic and a rated current of 80...

The Schneider Electric C120N three-pole circuit breaker is designed for electrical installations in residential and industrial settings. It has a B operating characteristic and a rated current of 80 A, and operates on alternating current. It is mounted on a 35 mm DIN rail and accepts accessories to suit the installation’s requirements.

  • Number of poles: 3
  • ...
See Description & Specifications See Description & Specifications

Rated current

  1. 80 A

    from 240,90 €

  2. 100 A

    from 329,90 €

240 90 €
Delivery Mon, 16 Nov - Fri, 20 Nov
14,00 €   shipping cost
Sent from Greece
From Getters 4.6 (112)
4.6 (112 reviews)
Greece
20+ pieces
See Electrical Panel Supplies on the page of Getters

Shop selection criteria

Why do we recommend buying from this shop?

We don’t only look at the price. We weigh different factors to find an offer that combines a good price, fast delivery and a reliable purchase.

  • Product price

    We calculate the total price you will pay and any discounts available from the shop.

  • Shipping & delivery time

    We check how quickly the product can be shipped and when you will receive it, based on your address.

  • Shop reliability

    We look at how often shops complete their orders successfully and how consistently they serve their customers.

  • Official reseller

    Where available, we take into account whether the shop is an official reseller of the brand.

Learn more about invoicing
Review the product
Product report

Description & Specifications

The Schneider Electric C120N three-pole circuit breaker is designed for electrical installations in residential and industrial settings. It has a B operating characteristic and a rated current of 80 A, and operates on alternating current. It is mounted on a 35 mm DIN rail and accepts accessories to suit the installation’s requirements.

  • Number of poles: 3
  • Rated current: 80 A
  • Current type: Alternating current (AC)
  • Operating curve: B
  • Rated voltage: 400 V AC
  • Breaking capacity: 6 kA
  • Rated frequency: 50/60 Hz
  • Mounting type: 35 mm DIN rail
  • Protection rating: IP20
  • Accessories: Can be added
  • Operating temperature: -25 to 70 °C
  • Rated short-circuit breaking capacity Icn at 230 V: 10 kA
  • Rated short-circuit breaking capacity Icn at 400 V: 10 kA
  • Rated short-circuit breaking capacity Icu at 230 V: 20 kA
  • Rated short-circuit breaking capacity Icu at 400 V: 10 kA
  • Rated impulse withstand voltage Uimp: 6 kV
  • Solid conductor cross-section: 1.5 to 50 mm²
  • Stranded conductor cross-section: 1 to 35 mm²
  • Energy-limiting class: 3
  • Pollution degree: 3
  • Recess depth: 44 mm
  • Width: 4.5 modules
  • Dimensions: 0.08 × 0.09 × 0.08 m
  • Weight: 0.58 kg
  • Compliance standards: IEC 60898-1, IEC 60947-2

Manufacturer

Manufacturer Details

Warnings & Safety Information

Specifications

Number of Poles
3
Rated Current
80 A
Operating Curve
Curve B

Operating Curve

The tripping curve shows the time required for the circuit breaker to switch off in relation to the current passing through it. For small overcurrents, the tripping is delayed to avoid unnecessary interruptions, while for very high values, such as in the case of a short circuit, the breaker operates immediately to protect the circuit. Different types of curves are used depending on the needs of each installation and the type of loads.

Curve B

Suitable for domestic circuits and lighting, it activates quickly at low overcurrents.

Power Supply

AC
Yes
DC
No

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.
