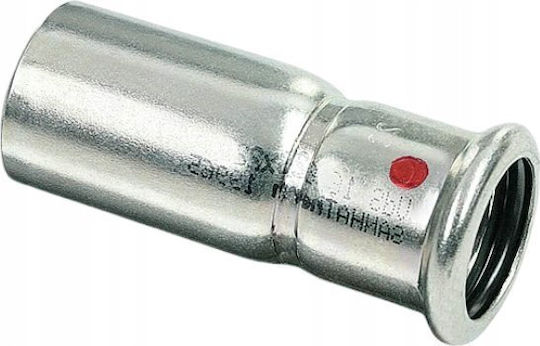

The SANHA-Therm ZWxZZ 42ax35 compact connector links pipes of different diameters and is suitable for hydraulic and heating systems. It features a push-fit end and a pressed female fitting, with black EPDM sealing rings, and a maximum working pressure of 16 bar at 20°C.

• Connector material 1: Steel
• Material quality 1: St 34.2 (1.0034)
• Surface protection 1: galvanic/electrolytic galvanization
• Surface treatment 1: untreated
• Connector material 2: Steel
• Material quality 2: St 34.2 (1.0034)
• Surface protection 2: galvanic/electrolytic galvanization
• Surface treatment 2: untreated
• Model/Shape: straight
• Model: one-piece
• Compact model: yes
• External diameter of connector 1: 42 mm
• Connection 1: push-fit end
• External diameter of connector 2: 35 mm
• Connection 2: pressed female fitting
• Sealing material: ethylene-propylene-diene terpolymer (EPDM)
• Length: 90 mm
• Connection length 1: 58 mm
• Connection length 2: 32 mm
• Effective connection length 2: 32 mm
• Maximum operating pressure at 20°C: 16 bar
• With seals: yes
• Brand: Sanha
• Weight: 0.136 kg
