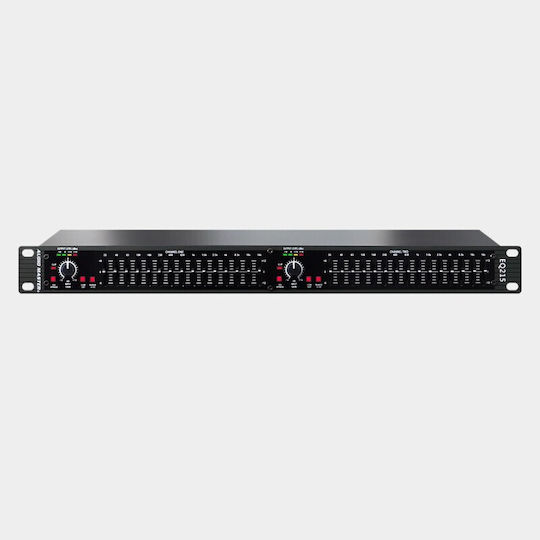

The Audiomaster Eq215 graphic equalizer features 2 channels with 15 adjustment bands per channel and constant-Q filters. It has a bypass switch, a gain control and a 50 Hz low-cut filter with a 12 dB-per-octave slope.
The VU meters, with 4 LEDs per channel, allow you to monitor output levels. The boost/cut range can be set to 6 dB or 12 dB.
- Type: Graphic equalizer
- Channels: 2
- Adjustment bands: 15 per channel
- Band spacing: 1/3 octave
- Filters: Constant Q
- Bypass switch: Yes
- Gain control: Yes
- Low-cut filter: 50 Hz
- Filter slope: 12 dB per octave
- Level indicators: VU meter with 4 LEDs per channel
- Boost/cut range: 6 dB or 12 dB
- Frequency response: 10 Hz–50 kHz
- Dynamic range: Greater than 108 dB
- Input and output connections: XLR and 1/4" TRS
- Dimensions: 482 × 44 × 152 mm
- Weight: 2.5 kg
- Product Number
- 00.000859
- Type
- Equalizer
