Construction: Reinforced aluminum

Weight Capacity: For door weight up to 600kg

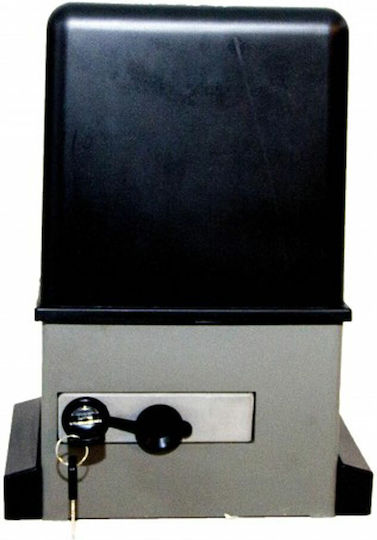

Operation: In case of power failure, it has a release hatch that unlocks with a key for manual operation of the garage door.

Electronic Board: Built-in Seav Lrs 2102R++ board, programmed and ready for operation.

• Deceleration during opening and closing with electronic adjustment and the possibility of different timings.
• Storage of up to 150 different rolling code, dip-switch, or random codes.
• Electronic brake.
• Soft Start for smooth start-up.
• Pedestrian passage – partial door opening.
• Automatic closing.
• Many extra functions depending on the needs of each installation.

Technical Specifications:

• Weight: 600 kg
• Absorbed power: 350 watt
• Power supply: 220 – 230 volt
• Current: 1.50 A
• Thermal protection: No
• Starting capacitor: 12.5 μF
• Operating temperatures: -45 C ~ + 60 C
• Insulation class: 1
• Motor speed: 1400 rpm
• Protection rating: IP 55
• Torque: 600 Nm
• Lubrication: Grease
• Noise: ≤ 50 db
• Door speed: 10 m / min

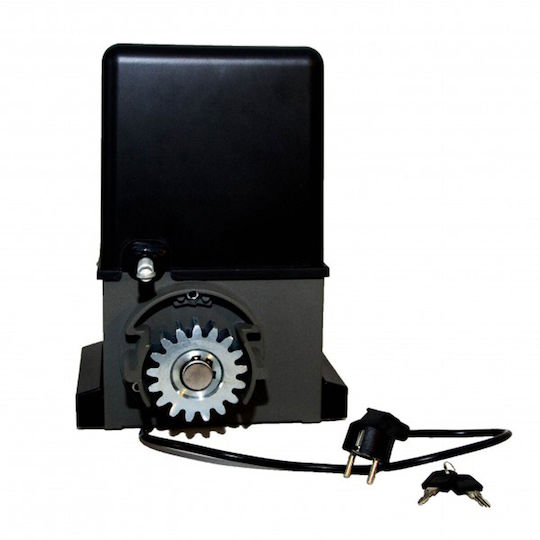

• Movement: Rack Module 4
