The PICO500-ec4 garage door motor (FULL KIT) offers reliable automation for sliding doors. It is designed for a maximum door leaf weight of 500 Kg and has a power of 280 Watts. Its operating voltage is 230 VAC (single-phase).

Technical specifications:

• Product code: PICO500-ec4-FULL-KIT
• Motor speed: 1400 rpm
• Supply current: 1.5 A
• Maximum door leaf speed: 10 m/min
• Protection rating against dust and moisture: IP-44
• Operating temperature range: -20°C to +55°C
• Open/close cycles per hour: up to 25 for a 5 m door at 20°C
• Maximum thrust force: 450 N
• Motor weight: 10 Kg
• Motor dimensions: 293 mm x 234 mm x 295 mm
• Motor box dimensions: 300 mm x 250 mm x 330 mm
• Color: Grey

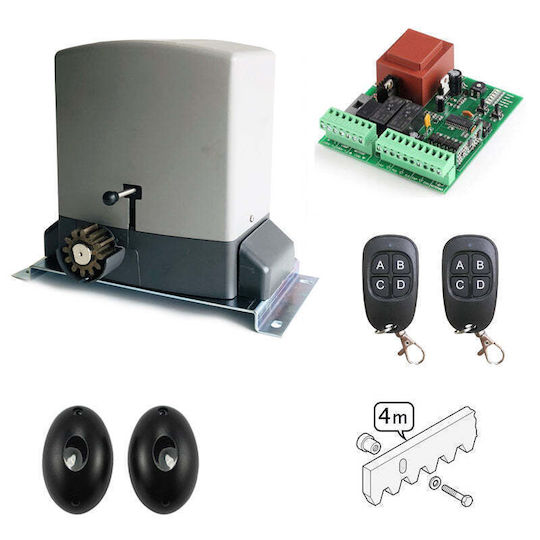

The set includes:

• 1 PICO500 motor
• 2 disengagement keys
• 4 galvanized 8x25 DIN912 screws
• 4 galvanized M8 washers
• 4 square snap-on M8 nuts
• 1 metal mounting bracket
• 2 metal plates for activating limit switches
• 1 set of safety photocells (transmitter & receiver) AGO-20
• 2 ec4 remote controls
• 1 e500-SL control panel
• 1 user manual in Greek

Additionally, it includes 4 meters of metal rack module 4 with spacers and screws, in a separate package.
