Qoltec Wall Mounted Three-Phase 22kW Charging Station Type 2 (52432)
Electric Car Charging Stations

Qoltec Wall Mounted Three-Phase 22kW Charging Station Type 2 (52432)

Wall-mounted three-phase charging station 22kW Type 2, compatible with most electric vehicles in Europe. Supports smart control via the Smart Life (Tuya) app, adjustable current 1–32A, RFID cards, LCD...

Wall-mounted three-phase charging station 22kW Type 2, compatible with most electric vehicles in Europe. Supports smart control via the Smart Life (Tuya) app, adjustable current 1–32A, RFID cards, LCD screen, and a comprehensive protection system. Suitable for indoor and outdoor installation (IP65).

  • Manufacturer: Qoltec
  • Material: PC + ABS
  • Maximum Power: 22...
See full description See full description
615,48 €
553 93 €
-61,55€
expires in 5 days
Delivery by Fri, 07 Aug
23,00 €   shipping cost
Sent from Greece
From Engaia
Greece
2 pieces
See Car Electronics on the page of Engaia
Product report

Description

Description

Wall-mounted three-phase charging station 22kW Type 2, compatible with most electric vehicles in Europe. Supports smart control via the Smart Life (Tuya) app, adjustable current 1–32A, RFID cards, LCD screen, and a comprehensive protection system. Suitable for indoor and outdoor installation (IP65).

  • Manufacturer: Qoltec
  • Material: PC + ABS
  • Maximum Power: 22 kW
  • Operating Voltage: 400 VAC (L1 + L2 + L3 + N + PE)
  • Number of Phases: 3 (Three-phase)
  • Operating Current: up to 32 A
  • Frequency: 50 Hz

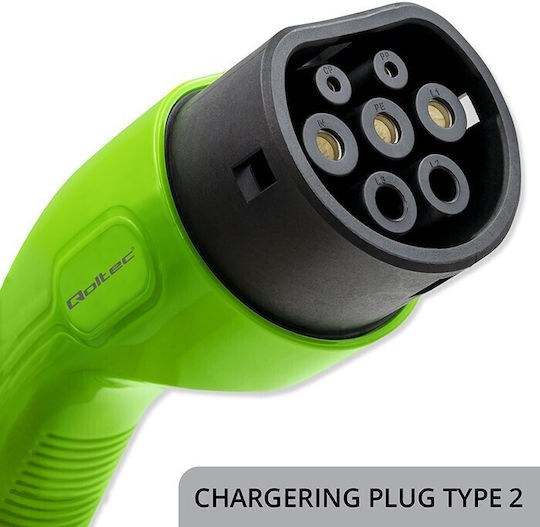

  • Connection Type: Type 2
  • Compatibility: Electric vehicles with Type 2 socket (Europe)
  • Display: LCD 4.3’’
  • Cable Length: 5 m
  • Cable Cross-section: 5×6 mm² + 1×0.5 mm²
  • Cable Diameter: 16.8 mm
  • Cable Insulation: TPU / TPE

Smart Features:

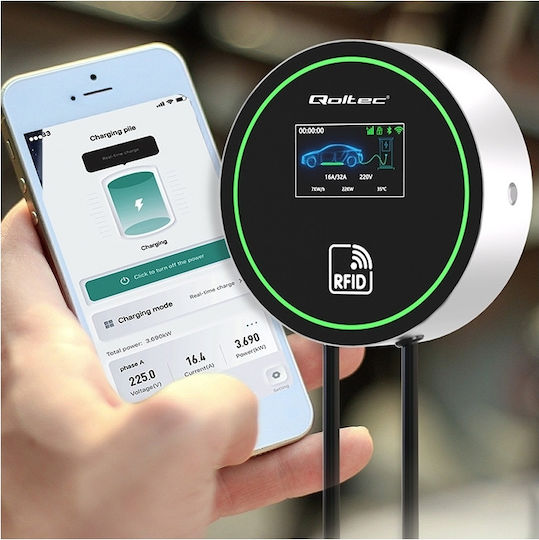

  • Control via Smart Life / Tuya App
  • Charging current adjustment 1A – 32A
  • Automatic current adjustment based on vehicle’s onboard charger (OBC)
  • Access via RFID (2 cards)

Safety Protections:

  • Overvoltage & undervoltage protection
  • Overheating protection
  • Short circuit protection
  • Leakage current protection
  • Grounding control
  • Temperature monitoring

Durability & Environment:

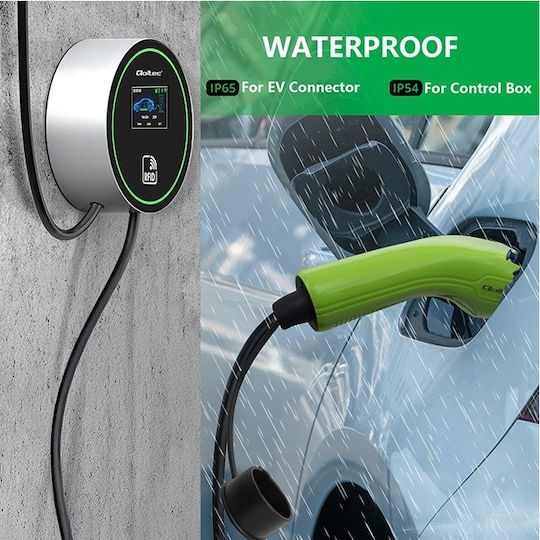

  • Protection grade: IP65
  • Operating temperature: -25 °C to +45 °C
  • Humidity: 5% – 95% RH
  • Color: Black / Green

Packaging Contents:

  • 1× Charging station with Type 2 cable
  • 1× Gun holder
  • 1× Set of screws
  • 1× User manual
  • 2× RFID cards

Dimensions & Weight:

  • Station dimensions: 250 × 250 × 80 mm
  • Charger dimensions: 210 × 70 × 60 mm
  • Net weight: 6.3 kg
  • Gross weight: 7.2 kg

Manufacturer

Manufacturer Details

Warnings & Safety Information
See full description

Specifications

Specifications

Placement
Wall Mounted
Phase Capacity
Three-Phase
Charging Power
22 kW
Built-in Cable
No
Charging Port
Type 2
Cable Length
5 m

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.

See all specifications
