Cisa Multitop 49526 Gear lock with 3 locking points for metal doors | 35mm

The Cisa 49526 lock features three-point locking. Its characteristics are as follows:

• 3-point locking with 3 one-piece bolts and 2 additional hook locks.
• Gear lock with Cisa Multitop Pro system.
• Suitable for aluminum and iron doors.
• Can be installed for both right-handed and left-handed direction.
• Can be combined with a standard or security cylinder (not included in the package).

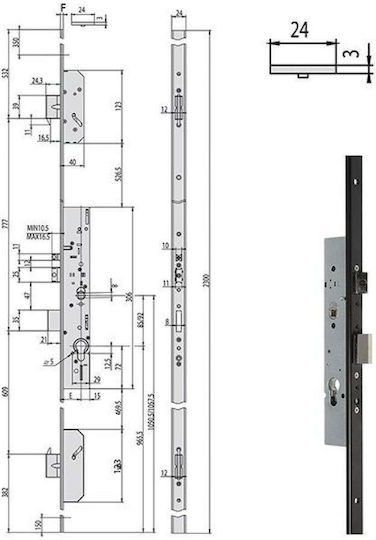

• Axis distance: 85mm.
• Body thickness: 15.5mm.
• Steel adjustable flat faceplate: 24 x 3mm.
• Dimensions: Painted black, height 2300mm.
• Top adjustment: 350mm.
• Bottom adjustment: 150mm.
• Latch tongue adjustable from 11 to 17mm.
• Centers: 30mm & 35mm.
• Gear body with one-piece tongues and hooks, square plate, and face width 24mm.
• Lock height: 2.30m (adjustable).
• Plastic cover caps for the rebate.

Certifications: Certified according to European standards EN 12209:03 Grade 6.
