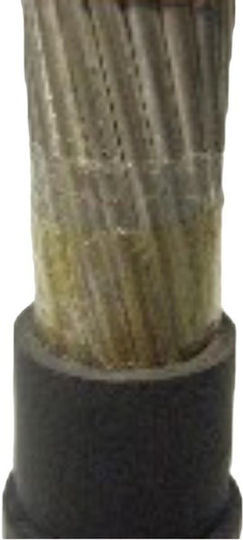

Monopolar Copper Cable NSGAFOEU 1X2.5 1.8/3 kV Black

• CPR classification: EN 50575 Eca
• Standard: VDE 0250 T. 602
• Conductor material: tinned copper
• Conductor category: 5 = flexible
• Insulation: rubber (EPR) 3GI3
Jacket material: rubber (CR) 5GM3
• Flame retardant: VDE 0482-332-1-2/IEC 60332-1-2
• UV resistant: yes, only black version
• Oil resistant: yes
• Ozone resistant: yes
• Maximum conductor temperature: 90 °C
• Maximum short-circuit temperature: 200 °C
• Permissible external cable temperature (steady): -40 to +80 °C
• Permissible external cable temperature (transient): -25 to +80 °C
• Bending radius (fixed installation): 6 x Ø
• Bending radius (movement application): 10 x Ø
• Number of cores: 1 conductor with 2.4 mm diameter
• Rated cross-section: 2.5 mm²
• Conductor resistance: 8.21 Ω/km
• Air resistance (at 30 °C): 41 A
• Short-circuit current (1 s): 0.305 kA
• Outer diameter: approximately 6.20 mm
Outer jacket color: black Burning heat (fire load): 0.28 kWh/m Tensile strength during installation: 38 N Copper weight (GER): 24 VDE: yes GOST/EAC: yes Rated voltage: 1.8/3 kV Jacket material: rubber Cable shape: round Halogen-free: no Oil resistant: yes Color: black Conductor construction: class 5 = fine stranded Insulation: rubber
