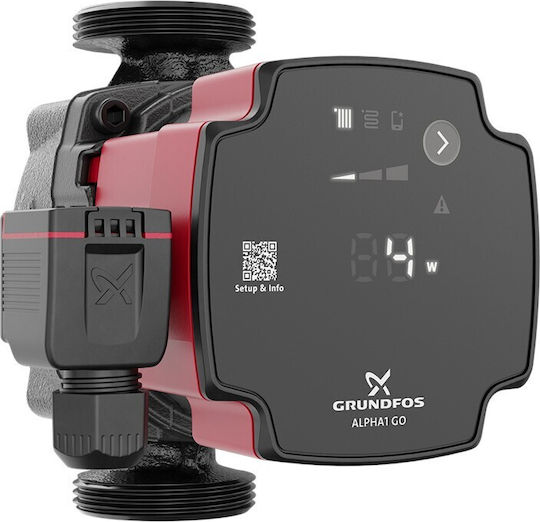

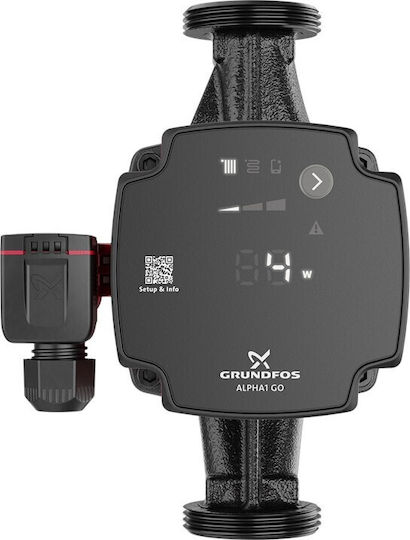

Grundfos Alpha1 Electronic Circulator Pump Heating / Air Condition 180mm Code: 93074169

The Grundfos Alpha1 electronic circulator features an electronically commutated motor and is designed to circulate water in heating and air conditioning systems. It offers three control modes:...

The Grundfos Alpha1 electronic circulator features an electronically commutated motor and is designed to circulate water in heating and air conditioning systems. It offers three control modes: constant pressure, proportional pressure, and constant curve, each with three speed settings.

The Grundfos GO app and operating panel make it easy to copy curves and...

See full description See full description
Lowest price '26 1 variation has

Learn more about invoicing

Description

Description

The Grundfos Alpha1 electronic circulator features an electronically commutated motor and is designed to circulate water in heating and air conditioning systems. It offers three control modes: constant pressure, proportional pressure, and constant curve, each with three speed settings.

The Grundfos GO app and operating panel make it easy to copy curves and replace older integrated or standalone circulators. It features automatic air venting, dry-running protection, and a start-up function that helps prevent blockages caused by dirt, magnetite, and limescale. The ceramic shaft and bearings reduce wear, while the error codes on the operating panel make troubleshooting easier.

  • Type: Electronic circulator
  • Applications: Heating, air conditioning
  • Control modes: Constant pressure, proportional pressure, constant curve
  • Speed settings: 3 per mode
  • Maximum head: 6 m
  • Rated flow rate: 1.65 m³/h
  • Rated head: 1.89 m
  • Length: 180 mm
  • Pumped liquid: Water
  • Liquid temperature: 2–110 °C
  • Selected liquid temperature: 20 °C
  • Liquid density: 998.2 kg/m³
  • Frequency converter: Integrated
  • Pump housing: Cast iron
  • Shaft and bearings: Ceramic
  • TF class: 110
  • Approvals: CE, VDE

Manufacturer

See full description

Specifications

Specifications

Product Number
93074169

Product Details

Electronic
Yes
Application
Heating, Air Conditioning
Maximum Pressure Head (m)
6 m

Dimensions

Connection Diameter
-
Length
180 mm

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.

See all specifications

Reviews (1)

Reviews

  1. 1
  2. 4 stars
    0
  3. 3 stars
    0
  4. 2 stars
    0
  5. 1 star
    0
Review this product

Description & Specifications

The Grundfos Alpha1 electronic circulator features an electronically commutated motor and is designed to circulate water in heating and air conditioning systems. It offers three control modes: constant pressure, proportional pressure, and constant curve, each with three speed settings.

The Grundfos GO app and operating panel make it easy to copy curves and replace older integrated or standalone circulators. It features automatic air venting, dry-running protection, and a start-up function that helps prevent blockages caused by dirt, magnetite, and limescale. The ceramic shaft and bearings reduce wear, while the error codes on the operating panel make troubleshooting easier.

  • Type: Electronic circulator
  • Applications: Heating, air conditioning
  • Control modes: Constant pressure, proportional pressure, constant curve
  • Speed settings: 3 per mode
  • Maximum head: 6 m
  • Rated flow rate: 1.65 m³/h
  • Rated head: 1.89 m
  • Length: 180 mm
  • Pumped liquid: Water
  • Liquid temperature: 2–110 °C
  • Selected liquid temperature: 20 °C
  • Liquid density: 998.2 kg/m³
  • Frequency converter: Integrated
  • Pump housing: Cast iron
  • Shaft and bearings: Ceramic
  • TF class: 110
  • Approvals: CE, VDE

Manufacturer

Product Number
93074169

Product Details

Electronic
Yes
Application
Heating, Air Conditioning
Maximum Pressure Head (m)
6 m

Dimensions

Connection Diameter
-
Length
180 mm

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.
