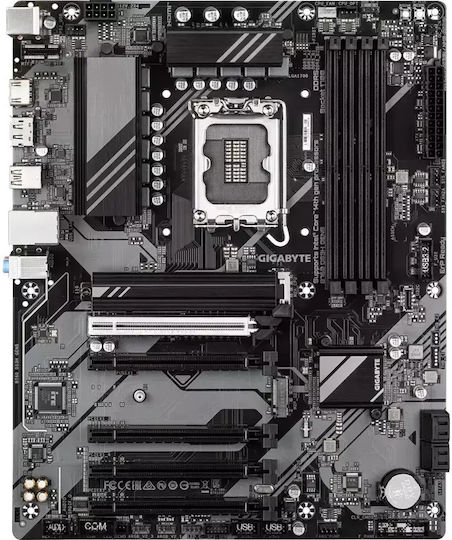

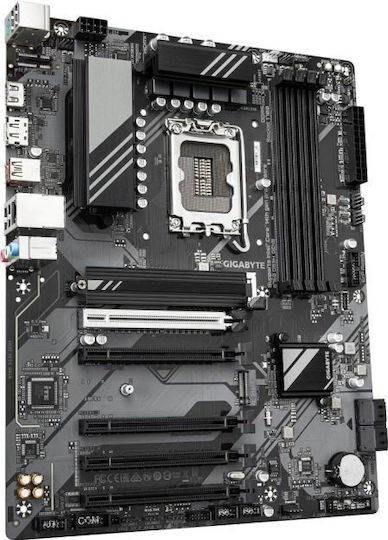

Gigabyte B760 DS3H GEN5 Motherboard ATX with Intel 1700 Socket
Motherboards

Gigabyte B760 DS3H GEN5 Motherboard ATX with Intel 1700 Socket

Key features:

  • 4 DDR5 Ram slots up to 5600
  • Intel 13th/14th Gen processors
  • Support for PCI Express 4.0 x16
  • Slots for 4x Sata III and 2x M.2
  • DisplayPort, HDMI connection
  • 1x USB 3.2, 4x USB 2.0, 1x USB-C 3.2
See full description

  • Socket

    The processor socket type.

    The processor we choose should have the same socket in order to fit into the motherboard.

    In addition to the socket, the motherboard chipset must also be supported by the processor.

  • Size

    The size of the motherboard is expressed with a code name (standard).
    2. We make sure that the computer case in which the motherboard will be installed supports the corresponding standard in order to fit it.

    ATX

    Classic size with full feature support and many expansion slots.

  • Usage

    Desktop

    Motherboards designed for use in desktop computers.

  • Chipset

    The motherboard chip that manages connections with motherboard components (e.g. CPU, RAM memory, hard disk, USB ports).

    The processor we choose must support the motherboard chipset in order to be 100% compatible with each other and to fully utilize the motherboard connections.

    If the motherboard chipset is supported by the processor, then the socket will also be compatible.



  • Memory

    Memory Type and RAM Slots

    Indicates the type of RAM memory supported by the motherboard (e.g., DDR4, DDR5) and the number of slots (DIMM slots) for the modules, which determines how much memory can be installed in total.
  • See all
Review the product
Product report

Description

Description

The Gigabyte B760 DS3H GEN5 motherboard is an excellent choice for desktop computers, offering high compatibility with Intel processors. It features socket 1700, which is suitable for processor series such as Celeron Dual Core, Core i3, Core i5, Core i7, Core i9, and Pentium Dual Core.

This ATX motherboard provides important features, such as support for DDR5 memory with speeds starting from 4000 MT/s, allowing fast and reliable performance. It also has 7.1 channel audio technology, delivering an exceptional audio experience.

The B760 DS3H GEN5 offers four SATA III 6Gb/s ports for connecting hard drives and SSDs. The PCI Express x16 4.0 slots allow the addition of expansion cards for extra functionality, while it includes two M.2 ports for fast connection of specialized M.2 SSD units.

With its powerful features and flexibility, this motherboard is ideal for those who want to build a computer with very good performance and expandability.

  • Processor socket: 1700
  • Form factor: ATX
  • Supported processors: Intel (Celeron, Core i3, i5, i7, i9, Pentium)
  • Memory type: DDR5
  • Audio channels: 7.1
  • Number of SATA III: 4
  • PCI Express x16 4.0: 1
  • M.2 ports: 2 PCIe 4.0

PCIe Gen5

The new GIGABYTE B760 motherboards offer the most efficient solution to enjoy enhanced PCIe Gen5 performance on the existing platform. PCIe 5.0 doubles the data transfer rate of PCIe 4.0 from 16 GT/s to 32 GT/s per lane. This significant increase in bandwidth particularly benefits high-performance graphics cards, storage devices, and AI accelerators that require faster data transfer.

Thermal Design

  • Durable VRM heatsinks keep your system cool and efficient.
  • M.2 Thermal Guard technology prevents performance drops and bottlenecks from high-speed M.2 SSDs by effectively dissipating heat before it becomes an issue.

GbE LAN with Bandwidth Management

GbE LAN technology incorporates bandwidth management application, which improves network latency and maintains low response times (ping), offering a better experience in demanding and crowded LAN environments.

Manufacturer

Manufacturer Details

Warnings & Safety Information
See full description

Specifications

Specifications

Product Details

Size
ATX

Size

The size of the motherboard is expressed with a code name (standard).
2. We make sure that the computer case in which the motherboard will be installed supports the corresponding standard in order to fit it.

ATX
Classic size with full feature support and many expansion slots.
Type
Desktop

Type

Desktop

Motherboards designed for use in desktop computers.

Processor

Supported Processors
Intel
Models
Celeron Dual Core, Core i3, Core i5, Core i7, Core i9, Pentium Dual Core
Supported CPU Generation
Alder Lake, Raptor Lake
Socket
1700

Socket

The processor socket type.

The processor we choose should have the same socket in order to fit into the motherboard.

In addition to the socket, the motherboard chipset must also be supported by the processor.

Chipset

Model
Intel B760

Model

The motherboard chip that manages connections with motherboard components (e.g. CPU, RAM memory, hard disk, USB ports).

The processor we choose must support the motherboard chipset in order to be 100% compatible with each other and to fully utilize the motherboard connections.

If the motherboard chipset is supported by the processor, then the socket will also be compatible.



Memory

Memory type
DDR5

Memory type

The type of RAM memory that is compatible with the motherboard.

DDR5

The latest memory type, with speed starting from 4000 MT/s.
Quantity
4 DIMM Slots
Memory Speeds
4000, 4800, 5200OC, 5400OC, 5600OC, 5800OC, 6000OC, 6200OC, 6400OC, 6600OC, 6800OC, 7000OC, 7200OC, 7400OC, 7600OC

Memory Speeds

The supported RAM memory speeds.

The RAM and processor that will be installed in the computer should be able to reach these speeds, while special settings may be required to reach maximum speeds.
Memory Channels
Dual Channel

Memory Channels

Dual Channel

It is possible to install two identical RAM modules that will work in parallel and provide more speed to applications that require a lot of memory (e.g. video editing). 2. For example, if two identical 8GB RAM modules are installed in a dual channel motherboard, they will perform better than installing one 16GB module.

Internal Connectors

PCI Express x16 4.0
1 Slot

PCI Express x16 4.0

The available PCI Express x16 4.0 expansion card slots of the motherboard.
SATA III 6Gb/s
4 Port

SATA III 6Gb/s

Modern hard drive connection standard.

Most SSD hard drives require this standard to perform at their maximum potential.
M.2 Type
2 PCIe 4.0 Ports

M.2 Type

The number and type of available slots for installing M.2 SSD units.
M.2 Slots
0

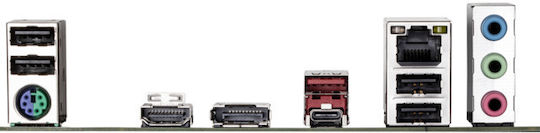

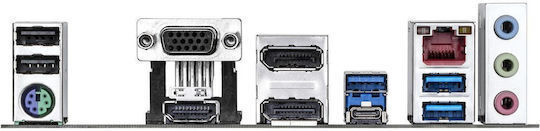

External Connectors

Rear USB-A outputs
1 USB 3.2 Port, 4 USB 2.0 Ports
Rear USB-C outputs
1 USB 3.2 Port
Ethernet (LAN)
1

Ethernet (LAN)

The number of ethernet ports for wired connection to a network that the motherboard has on its back panel.
Screen Connections
DisplayPort, HDMI

Specifications

RGB Lighting
No
WiFi/Bluetooth
No
Extra
RGB Header

Extra

RGB Header
Special connector for connecting LED strips or connecting other parts with RGB that require separate power supply.

Sound

Sound Card Channels
7.1

Top Specs

Memory
4x DDR5

Memory

Memory Type and RAM Slots

Indicates the type of RAM memory supported by the motherboard (e.g., DDR4, DDR5) and the number of slots (DIMM slots) for the modules, which determines how much memory can be installed in total.

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.

See all specifications

Description & Specifications

Product Details

Size
ATX

Size

The size of the motherboard is expressed with a code name (standard).
2. We make sure that the computer case in which the motherboard will be installed supports the corresponding standard in order to fit it.

ATX
Classic size with full feature support and many expansion slots.
Type
Desktop

Type

Desktop

Motherboards designed for use in desktop computers.

Processor

Supported Processors
Intel
Models
Celeron Dual Core, Core i3, Core i5, Core i7, Core i9, Pentium Dual Core
Supported CPU Generation
Alder Lake, Raptor Lake
Socket
1700

Socket

The processor socket type.

The processor we choose should have the same socket in order to fit into the motherboard.

In addition to the socket, the motherboard chipset must also be supported by the processor.

Chipset

Model
Intel B760

Model

The motherboard chip that manages connections with motherboard components (e.g. CPU, RAM memory, hard disk, USB ports).

The processor we choose must support the motherboard chipset in order to be 100% compatible with each other and to fully utilize the motherboard connections.

If the motherboard chipset is supported by the processor, then the socket will also be compatible.



Memory

Memory type
DDR5

Memory type

The type of RAM memory that is compatible with the motherboard.

DDR5

The latest memory type, with speed starting from 4000 MT/s.
Quantity
4 DIMM Slots
Memory Speeds
4000, 4800, 5200OC, 5400OC, 5600OC, 5800OC, 6000OC, 6200OC, 6400OC, 6600OC, 6800OC, 7000OC, 7200OC, 7400OC, 7600OC

Memory Speeds

The supported RAM memory speeds.

The RAM and processor that will be installed in the computer should be able to reach these speeds, while special settings may be required to reach maximum speeds.
Memory Channels
Dual Channel

Memory Channels

Dual Channel

It is possible to install two identical RAM modules that will work in parallel and provide more speed to applications that require a lot of memory (e.g. video editing). 2. For example, if two identical 8GB RAM modules are installed in a dual channel motherboard, they will perform better than installing one 16GB module.

Internal Connectors

PCI Express x16 4.0
1 Slot

PCI Express x16 4.0

The available PCI Express x16 4.0 expansion card slots of the motherboard.
SATA III 6Gb/s
4 Port

SATA III 6Gb/s

Modern hard drive connection standard.

Most SSD hard drives require this standard to perform at their maximum potential.
M.2 Type
2 PCIe 4.0 Ports

M.2 Type

The number and type of available slots for installing M.2 SSD units.
M.2 Slots
0

External Connectors

Rear USB-A outputs
1 USB 3.2 Port, 4 USB 2.0 Ports
Rear USB-C outputs
1 USB 3.2 Port
Ethernet (LAN)
1

Ethernet (LAN)

The number of ethernet ports for wired connection to a network that the motherboard has on its back panel.
Screen Connections
DisplayPort, HDMI

Specifications

RGB Lighting
No
WiFi/Bluetooth
No
Extra
RGB Header

Extra

RGB Header
Special connector for connecting LED strips or connecting other parts with RGB that require separate power supply.

Sound

Sound Card Channels
7.1

Top Specs

Memory
4x DDR5

Memory

Memory Type and RAM Slots

Indicates the type of RAM memory supported by the motherboard (e.g., DDR4, DDR5) and the number of slots (DIMM slots) for the modules, which determines how much memory can be installed in total.

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.

Description

The Gigabyte B760 DS3H GEN5 motherboard is an excellent choice for desktop computers, offering high compatibility with Intel processors. It features socket 1700, which is suitable for processor series such as Celeron Dual Core, Core i3, Core i5, Core i7, Core i9, and Pentium Dual Core.

This ATX motherboard provides important features, such as support for DDR5 memory with speeds starting from 4000 MT/s, allowing fast and reliable performance. It also has 7.1 channel audio technology, delivering an exceptional audio experience.

The B760 DS3H GEN5 offers four SATA III 6Gb/s ports for connecting hard drives and SSDs. The PCI Express x16 4.0 slots allow the addition of expansion cards for extra functionality, while it includes two M.2 ports for fast connection of specialized M.2 SSD units.

With its powerful features and flexibility, this motherboard is ideal for those who want to build a computer with very good performance and expandability.

  • Processor socket: 1700
  • Form factor: ATX
  • Supported processors: Intel (Celeron, Core i3, i5, i7, i9, Pentium)
  • Memory type: DDR5
  • Audio channels: 7.1
  • Number of SATA III: 4
  • PCI Express x16 4.0: 1
  • M.2 ports: 2 PCIe 4.0

PCIe Gen5

The new GIGABYTE B760 motherboards offer the most efficient solution to enjoy enhanced PCIe Gen5 performance on the existing platform. PCIe 5.0 doubles the data transfer rate of PCIe 4.0 from 16 GT/s to 32 GT/s per lane. This significant increase in bandwidth particularly benefits high-performance graphics cards, storage devices, and AI accelerators that require faster data transfer.

Thermal Design

  • Durable VRM heatsinks keep your system cool and efficient.
  • M.2 Thermal Guard technology prevents performance drops and bottlenecks from high-speed M.2 SSDs by effectively dissipating heat before it becomes an issue.

GbE LAN with Bandwidth Management

GbE LAN technology incorporates bandwidth management application, which improves network latency and maintains low response times (ping), offering a better experience in demanding and crowded LAN environments.

Manufacturer

Manufacturer Details

Warnings & Safety Information
118,09 €
14,00 €   shipping cost
