Dahua DVR NVR XVR1B08-I/T
Surveillance Video Recorders

Dahua DVR NVR XVR1B08-I/T

Device: Dahua XVR1B08-I/T

General Information:

  • Series: Cooper
  • Color: Black
  • Processor: Built-in
  • Operating System: Embedded LINUX
  • Analog Camera Input: 8 channels, BNC
  • IP Camera Input: 2+8 channels
  • ...

Device: Dahua XVR1B08-I/T

General Information:

  • Series: Cooper
  • Color: Black
  • Processor: Built-in
  • Operating System: Embedded LINUX
  • Analog Camera Input: 8 channels, BNC
  • IP Camera Input: 2+8 channels
  • Support for HDCVI Cameras: 1080p@25/30 fps; 720p@25/30 fps
  • AHD Cameras: 1080p@25/30 fps; 720p@25/30 fps
  • TVI Cameras: 1080p@25/30 fps; 720p@25/30 fps
  • Resolution:...
See full description See full description

  • Type

    NVR

    Recorder that uses IP cameras and network connection for video recording and management.

  • Number of Channels

    The maximum number of cameras that can be connected to and managed by the recorder

  • Resolution

    Full HD

    It offers a sharp, clear image (2 Megapixels), allowing you to distinguish details, such as faces or objects, with clarity.

  • Incoming Bandwidth

    This is the actual processing power of the recorder. It determines how much "load" (data) it can handle simultaneously from all cameras. A high number is necessary for many channels at high 4K resolution.


    • Example 1: You have 4 cameras of 5MP (each requiring ~8 Mbps). A total of ~32 Mbps is required. An NVR with 80 Mbps Incoming Bandwidth is more than enough.
    • Example 2: You have 16 cameras of 4K (each requiring ~12 Mbps). A total of ~192 Mbps is required. An NVR with 160 Mbps is not enough and will "lose" cameras or reduce their quality. Here, you need an NVR with at least 256 Mbps.

    40

  • HDD Slots

    The number of internal hard drives (SATA) that can be installed simultaneously in the recorder.

  • Maximum Capacity per Disk

    The maximum size (in TB - Terabytes) of the hard drive that the device "recognizes" and supports in each slot.

  • ONVIF

    ONVIF is a protocol that allows cameras and recorders from different manufacturers to communicate with each other.

  • Ports

    VGA

    An analog video output. Used to connect the recorder to older computer monitors.

    HDMI

    The digital output for video and audio. It is the standard way to connect the recorder to a modern TV or monitor (PC) and view your cameras in high resolution.

    USB

    Its main use is to connect a mouse for menu navigation and settings. Additionally, it is used to connect a USB stick (flash drive) in order to export (take a backup of) specific video clips that interest you.

  • Video Compression

    H.265+

    Smart version of H.265, designed for 4K/8K surveillance. It offers very low bandwidth in static scenes, combining high image quality with significant storage space savings.

    • The standard supports approximately 50–60 days of continuous recording on a 2TB hard drive

    (Values and durations are indicative and based on standard settings. Actual performance may vary depending on resolution, frame rate, scene movement, and hardware.)
  • See all

Number of channels outputs

  1. 4

    from 81,84 €

  2. 8

    from 96,52 €

Product report

Description

Description

Device: Dahua XVR1B08-I/T

General Information:

  • Series: Cooper
  • Color: Black
  • Processor: Built-in
  • Operating System: Embedded LINUX
  • Analog Camera Input: 8 channels, BNC
  • IP Camera Input: 2+8 channels
  • Support for HDCVI Cameras: 1080p@25/30 fps; 720p@25/30 fps
  • AHD Cameras: 1080p@25/30 fps; 720p@25/30 fps
  • TVI Cameras: 1080p@25/30 fps; 720p@25/30 fps
  • Resolution: 1080P (1920×1080); 720P (1280×720)
  • Maximum Camera Resolution: 2 MP
  • Storage: 1 SATA port, up to 6TB

Video:

  • Video Compression: H.265/H.264
  • Smart Codec: Smart H.265+/ Smart H.264+
  • Streaming Capability: 2 streams
  • Bandwidth: 40 Mbps input
  • Bitrate: 32 kbps–4096 kbps
  • Recording Mode: Main, motion detection; alarm
  • Playback: 1/4/9
  • Playback Features: Instant playback, general playback, event playback, bookmark playback, smart playback
  • Backup: USB device / via network

Perimeter Protection:

  • AI Functions: SMD Plus (human/vehicle detection)
  • SMD Plus from Camera: 10 channels
  • SMD from Recorder: 8 channels

Smart Features:

  • Smart Motion Detection: Yes
  • Alarm Signal: Motion detection; HDCVI alarm; external camera alarm; network alarm; PIR scanner

Certification:

  • Certificates: CE-LVD: IEC 62368-1:2014, CE-EMC: EN IEC 61000-3-2:2019, EN 61000-3-3:2013+A1:2019, EN 55032:2015+A11:2020, EN 55035:2017+A11:2020, EN 55024:2010+A1:2015, EN 50130-4:2011+A1:2014
  • Compatibility with Other Manufacturers: Panasonic; Sony; Hanwha; Axis; Arecont; ONVIF

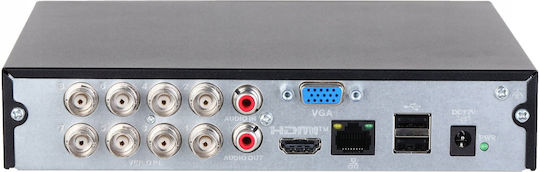

Additional Ports:

  • Audio Input: 1-channel RCA, 8-channel BNC (Conventional Audio)
  • Audio Output: 1 (RCA port)
  • Video Port: 1 x HDMI, 1 x VGA
  • USB: 2 USB 2.0 ports at the back
  • Video Port Resolution:
    • HDMI: 1920 × 1080, 1280 × 1024, 1280 × 720
    • VGA: 1920 × 1080, 1280 × 1024, 1280 × 720
  • Multidimensional Video: When IP extension mode is off: 1/4/8/9, when enabled: 1/4/8/9/16
  • Two-way Audio: Yes
  • Audio Compression: G.711a; G.711u; PCM
  • Audio Sampling Rate: 8KHz, 16 bit per channel
  • Audio Bitrate: 64 Kbps per channel

Network Functions:

  • Ethernet: 1 RJ-45 port (10/100 Mbps)
  • Mobile Application: Android, iOS
  • Network Protocols: HTTP; HTTPS; TCP/IP; IPv4; IPv6; RTSP; UDP; NTP; DHCP; DNS; SMTP; UPnP; IP filter; FTP; DDNS; SNMP; Alarm Server; P2P; Auto Registration; IP Search (Supports IP camera, DVR, NVS, etc.)
  • Compatibility: ONVIF 24.06 (Profile T; Profile S; Profile G); CGI; SDK
  • Access via Web Browser: IE, Chrome, Firefox, Safari

Power Supply:

  • Power Supply: DC 12V/1.5A
  • Power Consumption: < 7W (without HDD)

Operating Conditions:

  • Operating Temperature: -10°C to +45°C
  • Operating Humidity: 10% to 90% RH (non-condensing)

Construction:

  • Dimensions: 197 mm × 204.3 mm × 41.5 mm
  • Net Weight: 0.57 kg
  • Gross Weight: 0.97 kg

Manufacturer

Manufacturer Details

Warnings & Safety Information
See full description

Specifications

Specifications

Specifications

Type
NVR

Type

NVR
Recorder that uses IP cameras and network connection for video recording and management.
Number of Channels Outputs
8

Number of Channels Outputs

The maximum number of cameras that can be connected to and managed by the recorder
Resolution
Full HD

Resolution

Full HD

It offers a sharp, clear image (2 Megapixels), allowing you to distinguish details, such as faces or objects, with clarity.
WiFi
No

WiFi

Specifies whether the device can connect wirelessly to your router (Wi-Fi)
Incoming Bandwidth
40 Mbps

Incoming Bandwidth: 40

This is the actual processing power of the recorder. It determines how much "load" (data) it can handle simultaneously from all cameras. A high number is necessary for many channels at high 4K resolution.


  • Example 1: You have 4 cameras of 5MP (each requiring ~8 Mbps). A total of ~32 Mbps is required. An NVR with 80 Mbps Incoming Bandwidth is more than enough.
  • Example 2: You have 16 cameras of 4K (each requiring ~12 Mbps). A total of ~192 Mbps is required. An NVR with 160 Mbps is not enough and will "lose" cameras or reduce their quality. Here, you need an NVR with at least 256 Mbps.
Gigabit Port
No

Gigabit Port

Specifies the speed of the wired network connection (LAN). "Gigabit" (1000 Mbps) is 10 times faster than standard "Fast Ethernet" (100 Mbps). It is essential for multi-channel 4K NVRs to handle the large volume of data from the cameras without delay.
Ports
VGA, HDMI, USB

Ports

VGA

An analog video output. Used to connect the recorder to older computer monitors.

HDMI
The digital output for video and audio. It is the standard way to connect the recorder to a modern TV or monitor (PC) and view your cameras in high resolution.
USB

Its main use is to connect a mouse for menu navigation and settings. Additionally, it is used to connect a USB stick (flash drive) in order to export (take a backup of) specific video clips that interest you.
ONVIF
Yes

ONVIF

ONVIF is a protocol that allows cameras and recorders from different manufacturers to communicate with each other.
Video Compression
H.265+

Video Compression

H.265+

Smart version of H.265, designed for 4K/8K surveillance. It offers very low bandwidth in static scenes, combining high image quality with significant storage space savings.

  • The standard supports approximately 50–60 days of continuous recording on a 2TB hard drive

(Values and durations are indicative and based on standard settings. Actual performance may vary depending on resolution, frame rate, scene movement, and hardware.)

Smart AI Detection

Human Detection
Yes

Human Detection

The technology recognizes human shapes in real time. Ideal for security, area monitoring, or alarms, reducing false alarms caused by other objects.
Vehicle Detection
Yes

Vehicle Detection

Recognizes and tracks vehicles, distinguishing them from other objects. Useful for parking, traffic management, or road surveillance.

HDD

HDD Slots
1

HDD Slots

The number of internal hard drives (SATA) that can be installed simultaneously in the recorder.
Maximum Capacity per Disk
6 TB

Maximum Capacity per Disk

The maximum size (in TB - Terabytes) of the hard drive that the device "recognizes" and supports in each slot.
Includes Hard Drive
No

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.

See all specifications
