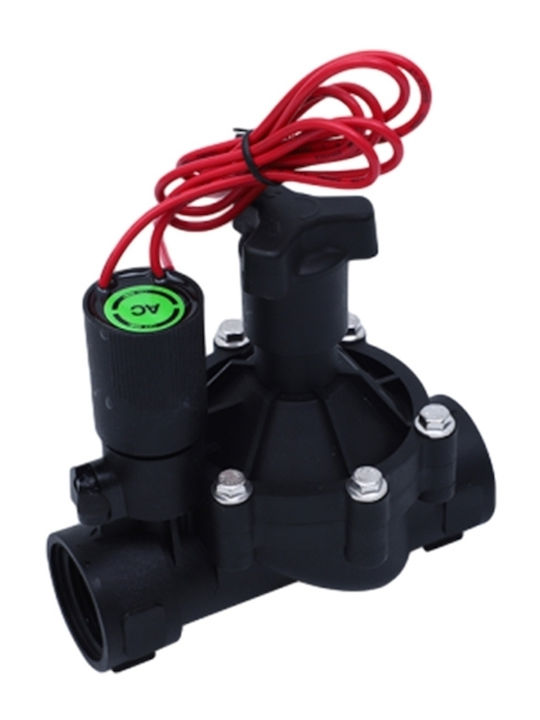

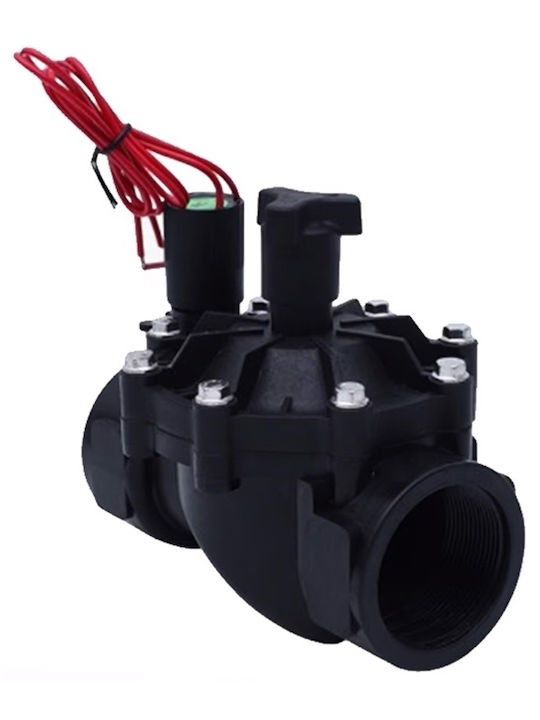

RainPoint AC 1" Solenoid Valve

The RainPoint solenoid valve is designed for the efficient control of water flow in low-flow irrigation systems. It works well in gardens, greenhouses, and other small areas that require precise watering management.

• Flow range: 0.05-9 m³/h
• Pressure range: 0.5-8 bar
• Liquid temperature: ≤60°C
• Valve material: Glass fiber reinforced nylon
• Membrane: EPDM rubber
• Operating voltage: AC 24V ±10%, 50/60 Hz
• Starting current: 0.3 A
• Holding current: 0.18 A

The valve features a manual switch and flow control button for easy testing and adjustment without the need to start the entire system. With clear flow direction indicators and compact dimensions (126 x 124 x 90 mm), installation is quick and easy.
