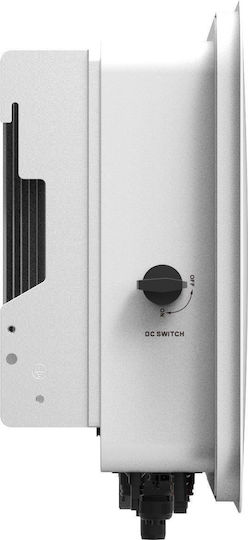

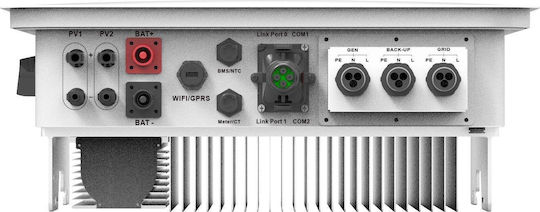

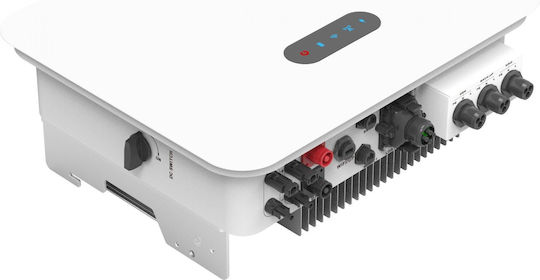

Hybrid inverter EPEVER ELS-6K 6000W for efficient energy management.

Versatile Energy Solution with the ELS Series Hybrid Inverters

The ELS series is designed to provide a flexible and reliable energy solution for modern homes. It supports multiple charging sources, such as grid, generators, and solar energy, ensuring continuous power supply under any conditions.

Uninterrupted Energy Management and Savings

It offers flexible functions, such as grid bypass, standalone operation, and grid-tied (on-grid) power supply. Smart energy management allows you to power your home, store surplus solar energy for future use, and export excess to the grid, significantly reducing costs and dependence on the public grid.

Efficient, Flexible, and Reliable

The ELS-6K hybrid inverter delivers high performance and compatibility with lithium and lead-acid batteries. Whether you need backup power during outages or want to maximize the use of a solar installation, this solution offers reliability and economy.

Main Features:

• Optimized Operation: Natural cooling with no maintenance required and ultra-quiet operation for maximum reliability.
• Superior Performance: High efficiency with MPPT tracking up to 99.9%, photovoltaic conversion efficiency of 97.6%, and efficient battery charging/discharging at 94.6%.
• Protection & Durability: IP65 protection rating, tested overload resistance at 1.5x nominal power for 60 seconds, and continuous charging/discharging current of 120A.
• Flexibility & Connectivity: Capability for PV oversizing up to 1.5x, dedicated port for generator connection, smart load management or AC coupling, and support for up to 6 parallel single-phase connections.
• User Experience: Smart application (APP) for easy monitoring and management, UPS switching ＜10ms, and optional RSD and AFCI modules for extra safety.

Technical Specifications:

• Output: 230V
• Maximum Power (On-grid): 6600VA
• Rated Output Power (Off-grid): 6000W
• Charging Technology: MPPT
• Maximum PV Input Power: 9000W
• Maximum PV Input Voltage: 580V
• Maximum PV Input Current: 16A or 16A + 16A
• Battery Type: Lithium / Lead-Acid
• Rated Battery Voltage: 48VDC
• Maximum Charging / Discharging Current: 120A
