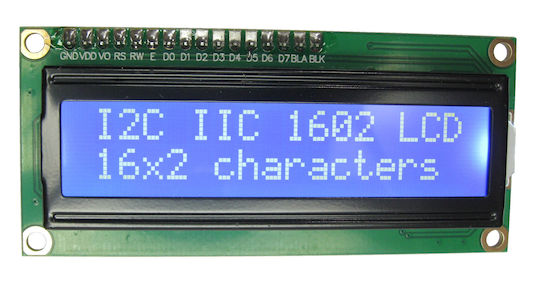

LCD Display 16x2 I2C Interface Module HD44780 Compatible Blue Background White Characters Backlight LCD1602A IIC

The LCD1602A display shows 16 characters on each of its two lines and has an HD44780 or compatible controller. It connects via an I2C interface with a PCF8574, while the LED backlight is blue and the...

Type: Character LCD
Layout: 16 characters 2 lines
Controller: HD44780 or compatible

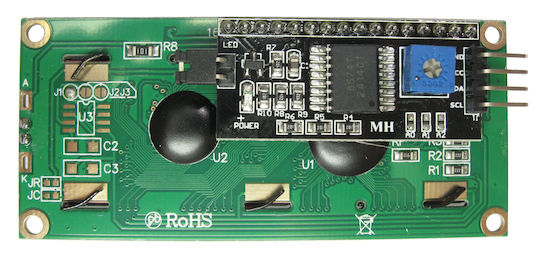

Interface: I2C via PCF8574
Backlight: LED, blue
...

See full description See full description

3 50 €

Delivery by Wed, 18 Nov

14,00 € shipping cost

Sent from Greece

From Hamradio 4.2 (3)

4.2 (3 reviews)

Greece

7 pieces

See Microelectronic Components on the page of Hamradio

Description

Type: Character LCD
Layout: 16 characters × 2 lines
Controller: HD44780 or compatible
Interface: I2C via PCF8574
Backlight: LED, blue
Character color: White
Operating voltage: 5 V DC
Current consumption: approximately 1 mA without backlight, up to 20 mA with backlight
DDRAM: 80 characters
CGRAM: 8 programmable characters
PCB dimensions: approximately 80 × 36 mm
Display dimensions: approximately 64.5 × 16 mm
Operating temperature: -20 °C to +70 °C
Viewing angle: approximately 45° to 60°
Weight: approximately 35 g

Manufacturer

OEM

See full description

Specifications

Size Inches: -

Character size: -

Touch Screen: No

Type: LCD
