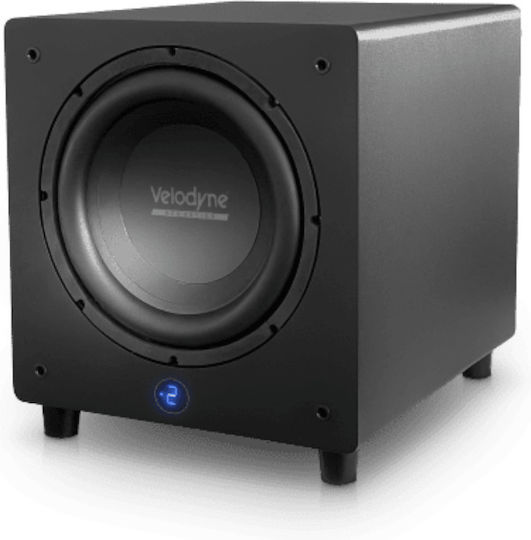

The Velodyne Vi-q10 active subwoofer features a front-firing 10″ driver and a Class D amplifier rated at 450 W RMS. Its sealed cabinet has a 50 mm-thick, 21-ply plywood front panel and a driver with a carbon-fibre cone.
Frequency response is 28–200 Hz (±3 dB), and the crossover frequency is adjustable from 50 to 180 Hz. Connections include stereo RCA inputs and outputs, as well as XLR inputs and outputs and high-level inputs. The operating mode selector has Off, Auto and On settings.
- Operation: Active
- RMS power: 450 W
- Amplifier type: Class D
- Bass driver: 10″, front-firing
- Frequency response (±3 dB): 28–200 Hz
- Frequency response (±10 dB): 25–280 Hz
- Low-pass crossover frequency: 50–180 Hz
- Crossover slope: 12 dB/octave
- Phase: 0 / 180 degrees
- Cabinet type: Sealed
- Cabinet material: 22 mm HDF
- Front panel thickness: 50 mm
- Diaphragm material: Carbon fibre
- Magnet: Dual ferrite
- Connections: RCA, XLR and high-level inputs
- Operating mode selector: Off / Auto / On
- Colour: Matte black
- Height: 38 cm
- Width: 32 cm
- Depth: 40 cm
- Weight: 24 kg
Dimensions
- Power (RMS)
- 450 W
- Bass Driver
- 10 "
- Functionality
- Active
- Wireless
- No
- Cabinet Type
- Sealed / Closed Cabin
- Colour
- Black
- Weight
- 24 kg
- Height
- 38 cm
- Width
- 32 cm
- Length
- 40 cm
Connectivity
- Connections
- RCA
