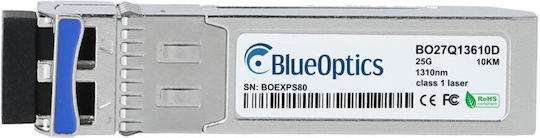

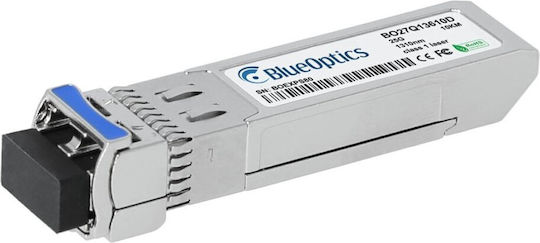

The HPE compatible SFP28 LC 25GBASE-LR S-Mode 10KM DDM transceiver is an advanced optical solution suitable for high-performance 25 Gigabit Ethernet applications over single-mode fibers. This module is characterized by its ability to support impressive data transmission speeds of up to 25.78 Gbps bidirectionally.

Designed for long-distance communications, it can extend connections up to 10 kilometers. The transceiver uses a DFB laser diode at 1310nm in combination with a PIN photodiode receiver, and features a duplex LC optical interface compatible with standard single-mode fibers (SMF).

• Form: Hot-pluggable SFP28 transceiver module
• Speed: 25GBASE-LR, supporting line rates of up to 25 Gbps
• Wavelength: 1310 nanometers
• Maximum Range: 10 kilometers over OS1 single-mode fiber
• Optical Interface: Duplex LC connector

Additionally, this module consumes less than 3.3 watts of power and features Digital Diagnostic Monitoring (DDM), enabling monitoring of critical parameters such as optical power, temperature, voltage, and laser bias current. It ensures compliance with multiple standards, including SFF-8472, RoHS, EN 60825-1 and -2, and FDA Class 1 Laser Product, ensuring reliability.

The operating temperature ranges from 0°C to 70°C, covering a wide range of environmental conditions. It is fully compatible with HPE Aruba network equipment, facilitating seamless integration into existing networks.

Overall, the HPE compatible JL486A SFP28 transceiver offers a robust and compatible solution for extending 25G Ethernet connection speeds up to 10 kilometers over single-mode fibers, ensuring optimal network performance.
