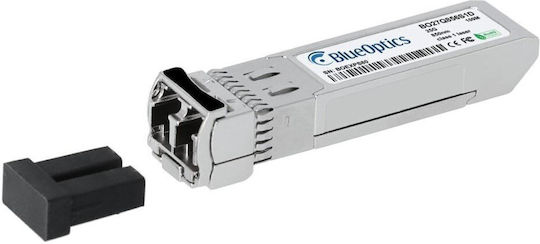

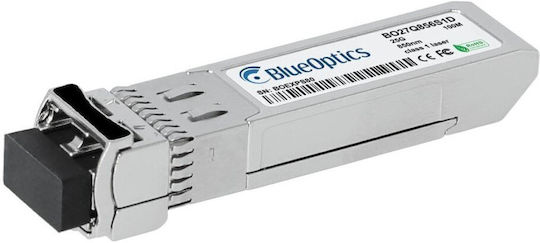

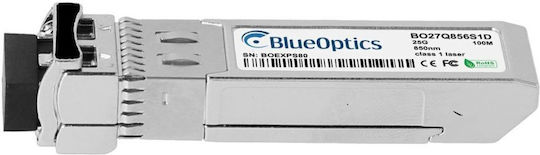

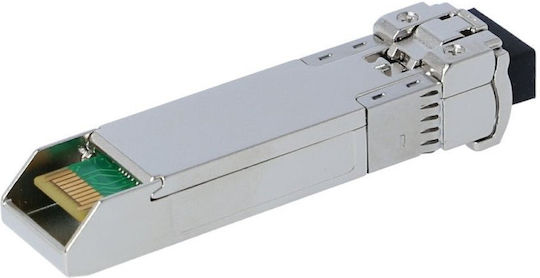

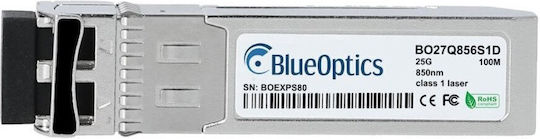

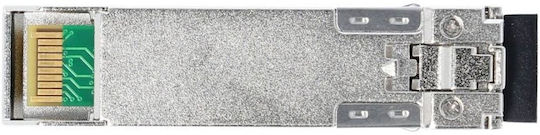

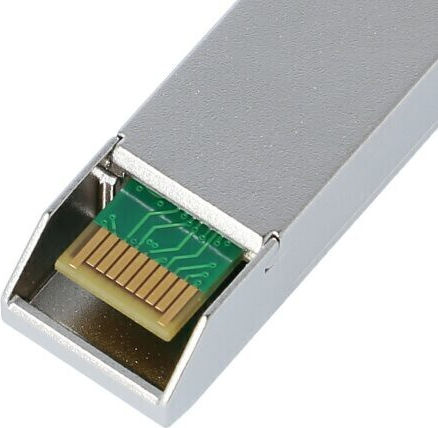

The Transceiver Extreme Networks compatible SFP28 LC-Duplex 25GBASE-SR 100M transceiver-transmitter and receiver is a high-performance small form factor hot-pluggable transceiver (SFP28) that meets the requirements of modern networking environments.

With a maximum data rate of 25 Gb/s and an operating wavelength of 850 nm, this transceiver enables optical connections via multimode fiber up to 100 meters in distance. It is an ideal choice for data centers and high-performance computer networks.

Key Technical Specifications:

• Form Factor: SFP28, hot-pluggable for easy installation.
• Data Rate: 25 Gb/s, suitable for high-capacity applications.
• Wavelength: 850 nm VCSEL with PIN photodiode receiver.
• Maximum Distance: 100 meters on OM4, 70 meters on OM3 cable.

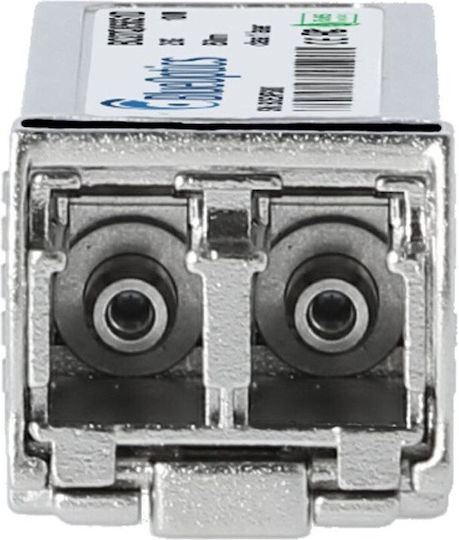

• Connector Type: LC duplex optical connector for reliable connections.
• Optical Media: Multimode fiber (MMF) with standard core/cladding of 50/125 µm.
• Digital Diagnostic Monitoring (DDM): Enabled for real-time parameter monitoring.
• Operating Temperature: 0°C to 70°C.
• Power Supply: 3.3V single power source.
• Dimensions: Approximately 57 mm (L) x 15 mm (W) x 9 mm (H).
• Weight: Approximately 0.01 kg.

This transceiver is designed to provide an affordable solution while ensuring compatibility with Extreme Networks equipment and other devices. It is widely recognized for its reliability in high-speed 25GBASE-SR connectivity.
