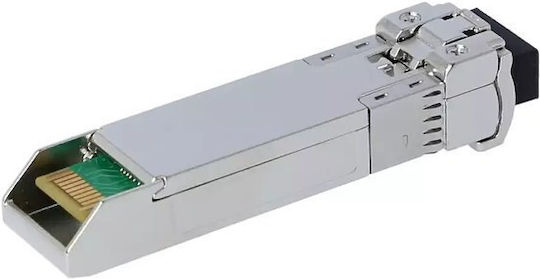

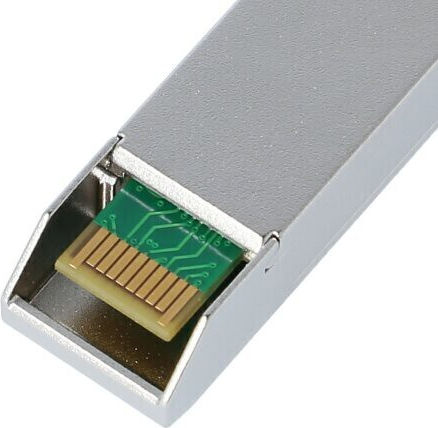

The HPE-compatible SFP+ LC 10GBASE-LR S-Mode 1310nm 10KM transceiver is designed for high-performance networks. This compact unit supports data transfer speeds of up to 10 Gbps over single-mode fiber (SMF), achieving a maximum connection distance of 10 kilometers.

• Form Factor: SFP+ for flexible networking solutions.
• Data Rate: Uses the 802.3ae 10GBASE-LR standards for excellent speed.
• Optical Interface: LC duplex connector designed for long-distance applications.
• Operates at a nominal frequency of 1310 nm with DFB laser for high reliability.
• Maximum Distance: Effective up to 10 km.
• Optical Power: Transmitter power ranges from -6 to 0 dBm.
Attenuation Ratio: Greater than 3.5 dB for better signal clarity.
• Diagnostic Capability: Features Digital Diagnostic Monitoring for real-time data monitoring.
• Operational Temperature: Designed for environments from 0°C to 70°C.

This unit is ideal for applications requiring reliable long-term 10G Ethernet connections. It is compatible with multiple HPE and Aruba devices, ensuring broad usability in business and telecommunications networks.
