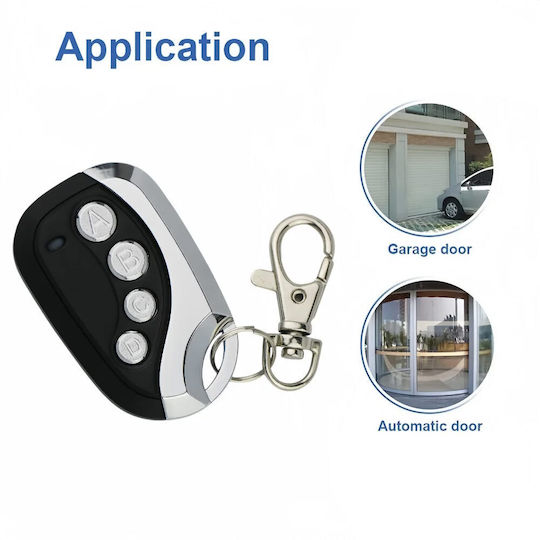

The garage door remote control features 4 buttons (A, B, C, and D), each corresponding to a secret code stored in the transmitter's memory. All buttons are equivalent.

The reset procedure for the remote is as follows: Press and hold simultaneously the button with the locked padlock and the button with the unlocked padlock for 3 seconds, until the indicator light stays on continuously. Then, while holding the button with the unlocked padlock, release the button with the locked padlock and, as soon as you release it, press it again 3 times.

Code cloning is done using the following process: Place the two remotes (ORIGINAL and CLONE) as close to each other as possible. Press and hold the button on the clone where you want to store the code copied from the ORIGINAL, until the clone's indicator light remains steadily lit.

Release the buttons and then press buttons C and D simultaneously, holding them until the light begins to flash. Then release the buttons to complete the saving process of the new code.

• Dimensions: 5.7 x 3.1 cm
• Weight: 0.037 kg
