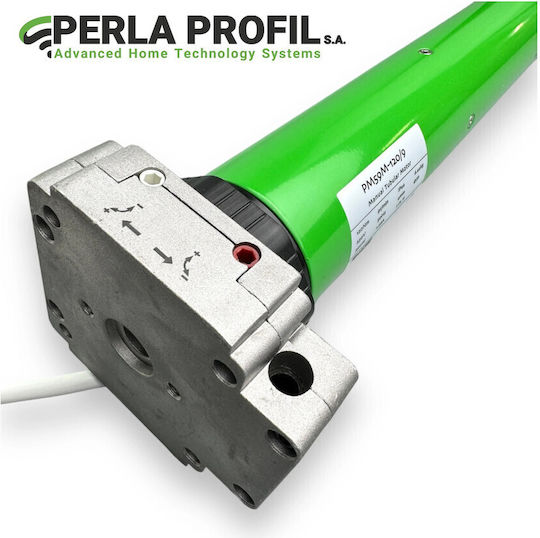

The 59M motor is a tubular motor with a tube diameter of 59mm, suitable for use in aluminum shutters and garage doors with a 70mm octagonal shaft. There is the option to use a crank handle in case of emergency. It can also be used in shading systems using the appropriate plastic components offered based on the shaft. Its operation is wired, and the limit adjustments are made mechanically.

Features:

• Wired Motor
• Auxiliary Crank Handle Operation
• 5 Wires
• Connection with External Receiver
• Mechanical Limits

Product Specifications:

• Tube Diameter: Ø59 mm
• Nominal Torque: 120 Nm
• Nominal Power: 350 W
• Nominal Speed: 9 rpm
• Operating Voltage: 230 V DC
• Operating Frequency: 50 Hz
• Nominal Current: 1.56A
• Protection Class: IP44
• Obstacle Detection: No
• Number of Turns: 22 max
• Operating Time: 4 Minutes
• Maximum Load: 180

Accessories included (Crown-Adapter-Base).
