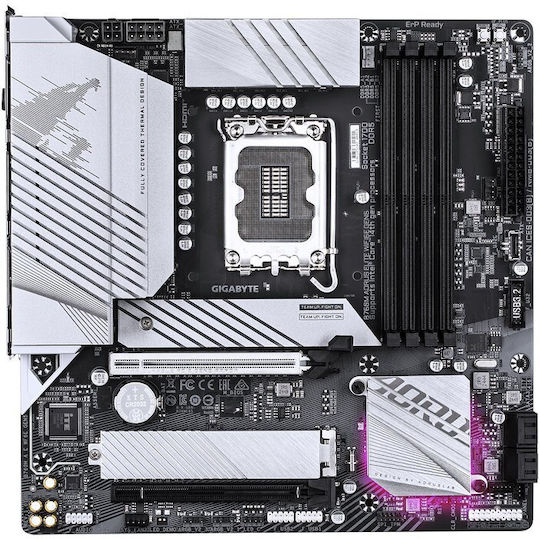

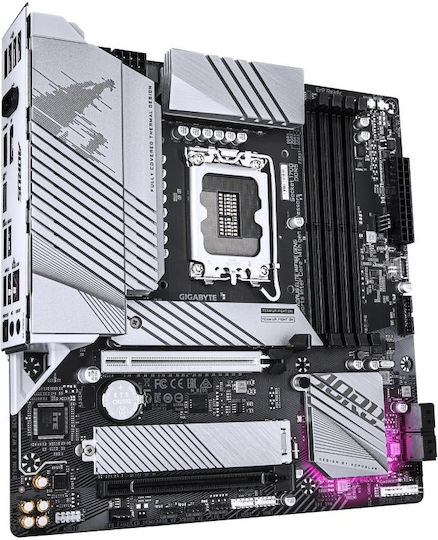

Gigabyte B760M Aorus Elite WIFI6E GEN5 rev. 1.0 Motherboard Micro ATX with Intel 1700 Socket
Motherboards

Gigabyte B760M Aorus Elite WIFI6E GEN5 rev. 1.0 Motherboard Micro ATX with Intel 1700 Socket

Key features:

  • Size: Micro ATX
  • Intel Celeron, Core i3, i5, i7, i9
  • Alder Lake, Raptor Lake
  • Number of SATA III 6Gb/s: 4
  • Number of M.2 slots: 2
See full description

  • Socket

    The processor socket type.

    The processor we choose should have the same socket in order to fit into the motherboard.

    In addition to the socket, the motherboard chipset must also be supported by the processor.

  • Size

    The size of the motherboard is expressed with a code name (standard).
    2. We make sure that the computer case in which the motherboard will be installed supports the corresponding standard in order to fit it.

    Micro ATX

    Smaller than ATX, with fewer slots but sufficient for everyday use.

  • Usage

    Desktop

    Motherboards designed for use in desktop computers.

  • Chipset

    The motherboard chip that manages connections with motherboard components (e.g. CPU, RAM memory, hard disk, USB ports).

    The processor we choose must support the motherboard chipset in order to be 100% compatible with each other and to fully utilize the motherboard connections.

    If the motherboard chipset is supported by the processor, then the socket will also be compatible.



  • Memory

    Memory Type and RAM Slots

    Indicates the type of RAM memory supported by the motherboard (e.g., DDR4, DDR5) and the number of slots (DIMM slots) for the modules, which determines how much memory can be installed in total.
  • See all
Product report

Description

Description

This motherboard is specifically designed for desktop computers and supports Intel processors with socket 1700. To ensure compatibility, the processor you choose must also have the same socket and support the chipset.

The type of memory supported is DDR5, which offers speeds starting from 4000 MT/s, and it features four slots for RAM. In addition, you will have the ability to connect up to four SSD hard drives via SATA III 6Gb/s, ensuring very fast performance.

The motherboard includes two M.2 PCIe 4.0 slots for installing even more SSDs with high-performance speeds. It also has PCI Express x16 5.0 slots so you can add expansion cards to upgrade your graphics performance.

The card supports 7.1 channel audio, offering excellent sound quality for multimedia applications. Additionally, it features integrated WiFi 6E and Bluetooth, ensuring easy connectivity with other devices.

  • Size: Micro ATX
  • Supported processors: Intel Celeron, Core i3, i5, i7, i9, Pentium
  • Supported processor generations: Alder Lake, Raptor Lake
  • Number of SATA III 6Gb/s: 4
  • Number of M.2 slots: 2
  • Sound card channels: 7.1
  • PCI Express x16: 1

Express Performance on PCIE5

The new GIGABYTE B760 motherboards provide the most efficient solution to enjoy enhanced PCIe Gen5 performance on the existing platform. PCIe 5.0 doubles the data transfer rate of PCIe 4.0 from 16 GT/s to 32 GT/s per lane. This significant increase in bandwidth especially benefits high-performance graphics cards, storage devices, and AI accelerators that require faster data transfer.

Fully covered thermal design

High-coverage MOSFET and integrated molded heatsinks for improved thermal performance with better airflow and heat dissipation.

M.2 Thermal Protection

The M.2 Thermal Guard prevents throttling and bottlenecks from high-speed M.2 SSDs, as it helps dissipate heat before it becomes an issue.


Born from Ultra Durable™

Technology embodies our commitment to excellence, providing gamers with a platform that is not only powerful but also built for longevity and reliability. GIGABYTE motherboards are designed to endure and excel.

PCIe UD Slot

The unified stainless steel shielding design by GIGABYTE reinforces the PCIe slots, providing the extra durability required to support heavy graphics cards.

1.7X
stronger shear test
3.2X
stronger retention force test
Reduced signal degradation
with SMD technology

Unlock DDR5 Performance

GIGABYTE offers a tested and proven platform with excellent improvement in memory performance.

Dual Hybrid VRM Design

To ensure maximum Turbo Boost performance and overclocking of Intel’s next-generation CPUs, AORUS series motherboards feature the best VRM design ever built, with higher quality components.

12* VCORE DrMOS 60A Phases

To fully utilize the multi-core performance capabilities of the CPU.

*6+6 phase parallel power design

1 VCCGT DrMOS 60A Phase

For integrated CPU and GPU performance.

1 VCCAUX Phase

Provides stable power supply for the CPU’s integrated PCIe and memory controller.

Comprehensive Connectivity

Enjoy ultimate connectivity with next-generation network, storage, and Wi-Fi solutions that deliver lightning-fast data transfer speeds.

Comprehensive Connectivity
Wi-Fi 6E

2.5GbE LAN

Rear USB-C® 20Gb/s port

Front USB-C® 10Gb/s port

Customize it to match your unique personality

GIGABYTE motherboards combine many useful and user-friendly software tools to help users control every aspect of the motherboard and provide customizable lighting effects with exceptional aesthetics that match your unique personality.

Key Features

  • PCIe Gen5 Performance: Perfect timing for victory
  • Supports Intel® Core™ 14th/13th/12th generation processors
  • Efficient thermal protection: VRM Thermal Armor Advanced & M.2 Thermal Guard
  • WIFI EZ-Plug: Fast and easy design for Wi-Fi antenna installation
  • WIFI Compass: Automatically detects the best antenna position for stronger Wi-Fi signal
  • EZ-Latch: PCIe 5.0x16 slot with quick release design
  • EZ-Latch Plus: M.2 slots with quick release and screwless design
  • PCIe UD Slot: SMD PCIe 5.0 Armor for enhanced graphics card support
  • Unmatched Performance: Dual Hybrid VRM Solution 12*+1+1 Phases
  • Dual Channel DDR5: 4*DIMM with XMP memory module support
  • Fast Networking: 2.5GbE LAN & Wi-Fi 6E 802.11ax
  • Extensive connectivity: Rear USB-C® 20Gb/s, Front USB-C® 10Gb/s, DP, HDMI
  • Next-generation storage: 2*PCIe 4.0 x4 M.2 slots
  • Smart Fan 6: Features multiple temperature sensors, hybrid fan headers with FAN STOP
  • Q-Flash Plus: Update BIOS without installing the CPU, memory, and graphics card
  • High-resolution audio: ALC1220 & high-quality audio capacitors

Manufacturer

Manufacturer Details

Warnings & Safety Information
See full description

Specifications

Specifications

Product Details

Size
Micro ATX

Size

The size of the motherboard is expressed with a code name (standard).
2. We make sure that the computer case in which the motherboard will be installed supports the corresponding standard in order to fit it.

Micro ATX
Smaller than ATX, with fewer slots but sufficient for everyday use.
Type
Desktop

Type

Desktop

Motherboards designed for use in desktop computers.

Processor

Supported Processors
Intel
Models
Celeron Dual Core, Core i3, Core i5, Core i7, Core i9, Pentium Dual Core
Supported CPU Generation
Alder Lake, Raptor Lake
Socket
1700

Socket

The processor socket type.

The processor we choose should have the same socket in order to fit into the motherboard.

In addition to the socket, the motherboard chipset must also be supported by the processor.

Chipset

Model
Intel B760

Model

The motherboard chip that manages connections with motherboard components (e.g. CPU, RAM memory, hard disk, USB ports).

The processor we choose must support the motherboard chipset in order to be 100% compatible with each other and to fully utilize the motherboard connections.

If the motherboard chipset is supported by the processor, then the socket will also be compatible.



Memory

Memory type
DDR5

Memory type

The type of RAM memory that is compatible with the motherboard.

DDR5

The latest memory type, with speed starting from 4000 MT/s.
Quantity
4 DIMM Slots
Memory Speeds
4000, 4800, 5200, 5400, 5600, 5800OC, 6000OC, 6200OC, 6400OC, 6600OC, 6800OC, 7000OC, 7200OC, 7400OC, 7600OC

Memory Speeds

The supported RAM memory speeds.

The RAM and processor that will be installed in the computer should be able to reach these speeds, while special settings may be required to reach maximum speeds.
Memory Channels
Dual Channel

Memory Channels

Dual Channel

It is possible to install two identical RAM modules that will work in parallel and provide more speed to applications that require a lot of memory (e.g. video editing). 2. For example, if two identical 8GB RAM modules are installed in a dual channel motherboard, they will perform better than installing one 16GB module.

Internal Connectors

PCI Express x16 5.0
1 Slot

PCI Express x16 5.0

The available PCI Express x16 5.0 expansion card slots of the motherboard.
SATA III 6Gb/s
4 Port

SATA III 6Gb/s

Modern hard drive connection standard.

Most SSD hard drives require this standard to perform at their maximum potential.
M.2 Type
2 PCIe 4.0 Ports

M.2 Type

The number and type of available slots for installing M.2 SSD units.
M.2 Slots
0

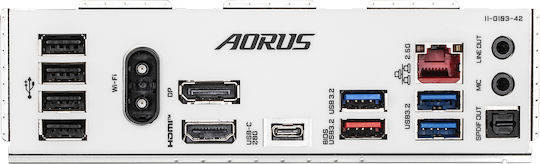

External Connectors

Rear USB-A outputs
4 USB 2.0 Ports, 4 USB 3.1 Ports
Rear USB-C outputs
1 USB 3.2 Port
Ethernet (LAN)
1

Ethernet (LAN)

The number of ethernet ports for wired connection to a network that the motherboard has on its back panel.
Screen Connections
DisplayPort, HDMI

Specifications

RGB Lighting
No
WiFi/Bluetooth
Yes
Extra
RGB Header

Extra

RGB Header
Special connector for connecting LED strips or connecting other parts with RGB that require separate power supply.

Sound

Sound Card Channels
7.1
Additional Audio Connections
Optical S/PDIF

Top Specs

Memory
4x DDR5

Memory

Memory Type and RAM Slots

Indicates the type of RAM memory supported by the motherboard (e.g., DDR4, DDR5) and the number of slots (DIMM slots) for the modules, which determines how much memory can be installed in total.

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.
